CTC-CEN Service Manual 07-13 Rev.E
99

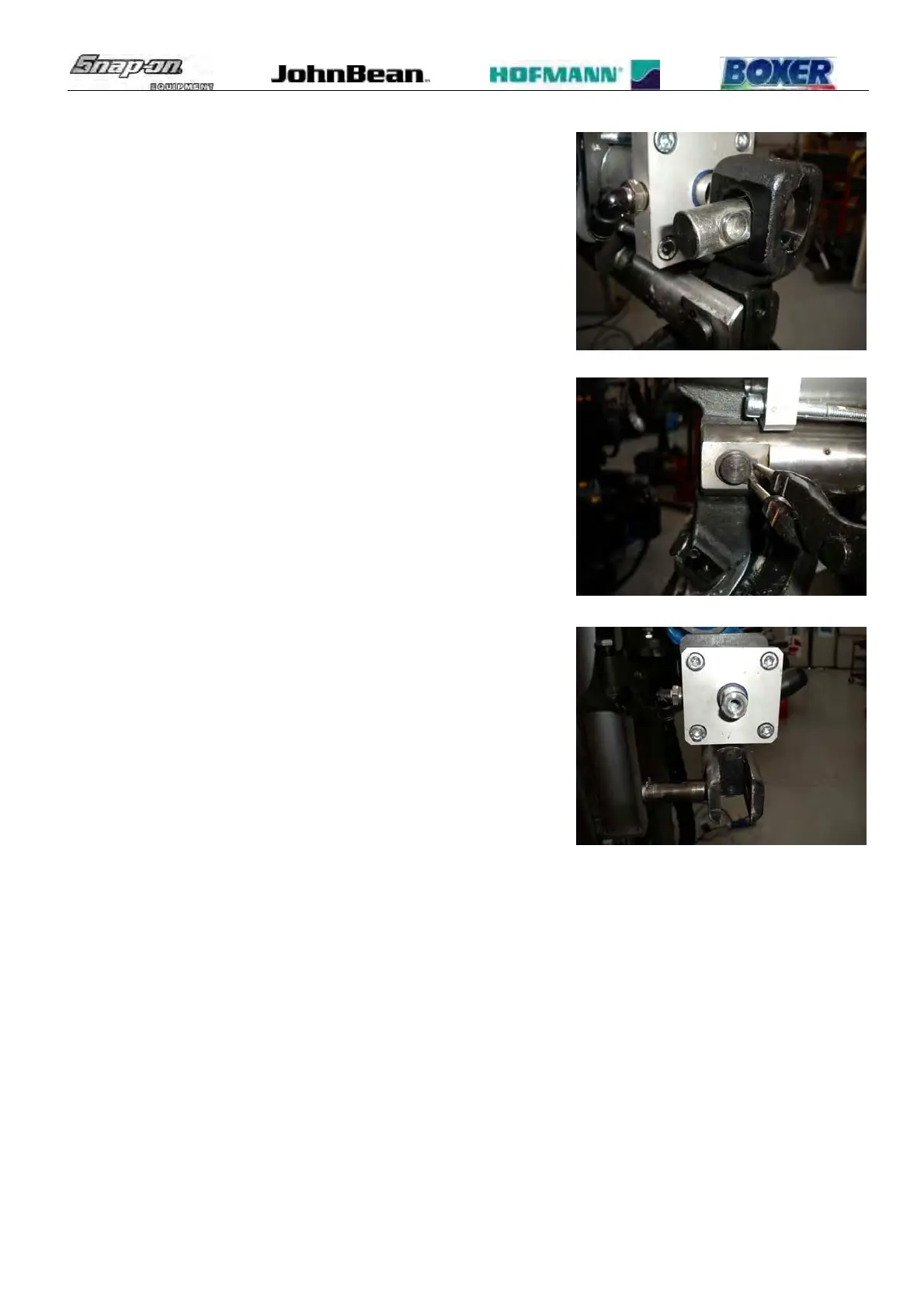

4. Push off the pin.
5. Remove the snap ring from the pin.
6. Push off the pin to remove the bead breaker disc assembly from
the arm.
7. Mount the new bead breaker disc assembly on the arm and secure it with the snap ring.
8. Fix the bead breaker disc to the cylinder and secure the pin with the screw.
9. Connect the air pressure to the machine.
10. Adjust the disc inclination following paragraph 8.6 of the dedicated Service Manual.
11. Check if the machine works fine.
