Holden Spark (Next Gen) Owner Manual (GMK-Localising-Holden-9507018) -
2016 - crc - 11/19/15
160 Vehicle Care

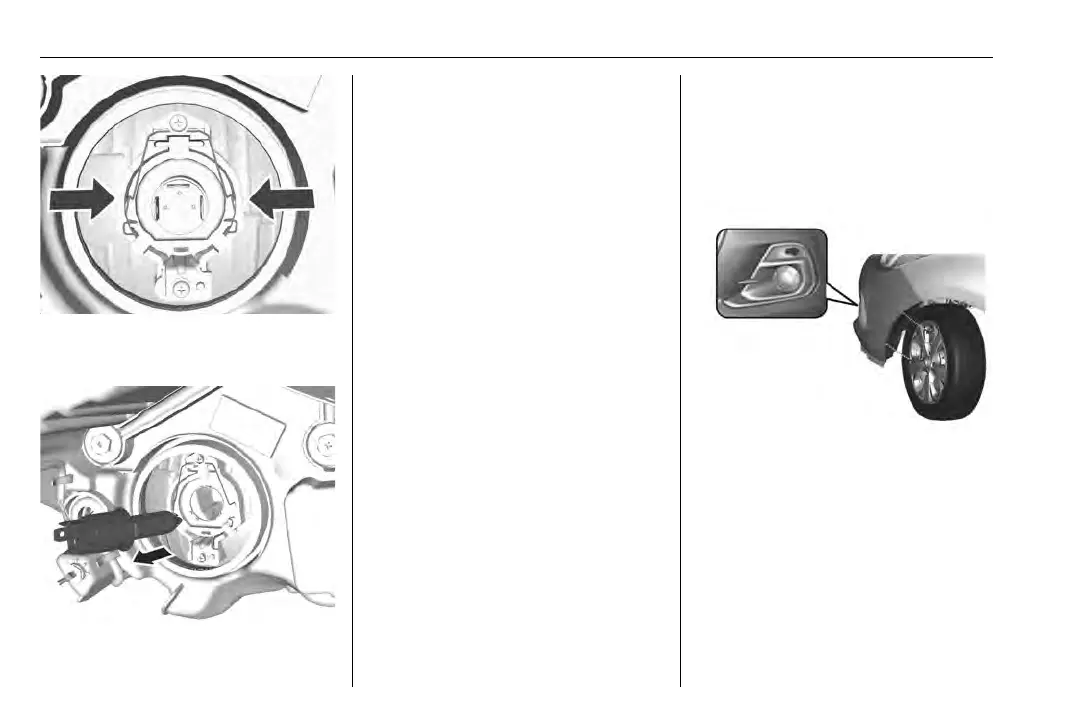

7. Press the spring clip to
disengage.
8. Remove the bulb from the
reflector housing.
9. Fit the new bulb by engaging
the lugs in the recesses on the
reflector.
10. Engage the spring clip.
11. Place the headlamp protective
cover into position and close.
12. Position the headlamp
assembly on the vehicle.
13. Attach the electrical connectors
onto the bulbs.
14. Install the three headlamp
screws.
15. Rotate the washer funnel
clockwise to engage.
Headlamp aiming
If the headlamps require
adjustment, contact a Holden
Dealer.
Daytime Running
Lamps (DRL)
Position/Daytime Running
Light
1. Turn the front wheels and
remove 2 push nuts on outside
of wheel liner.
