ERSATZTEI LE / SPARE PARTS
HOLZMANN Maschinen Austria  www.holzmann-maschinen.at
Seit e 4 6

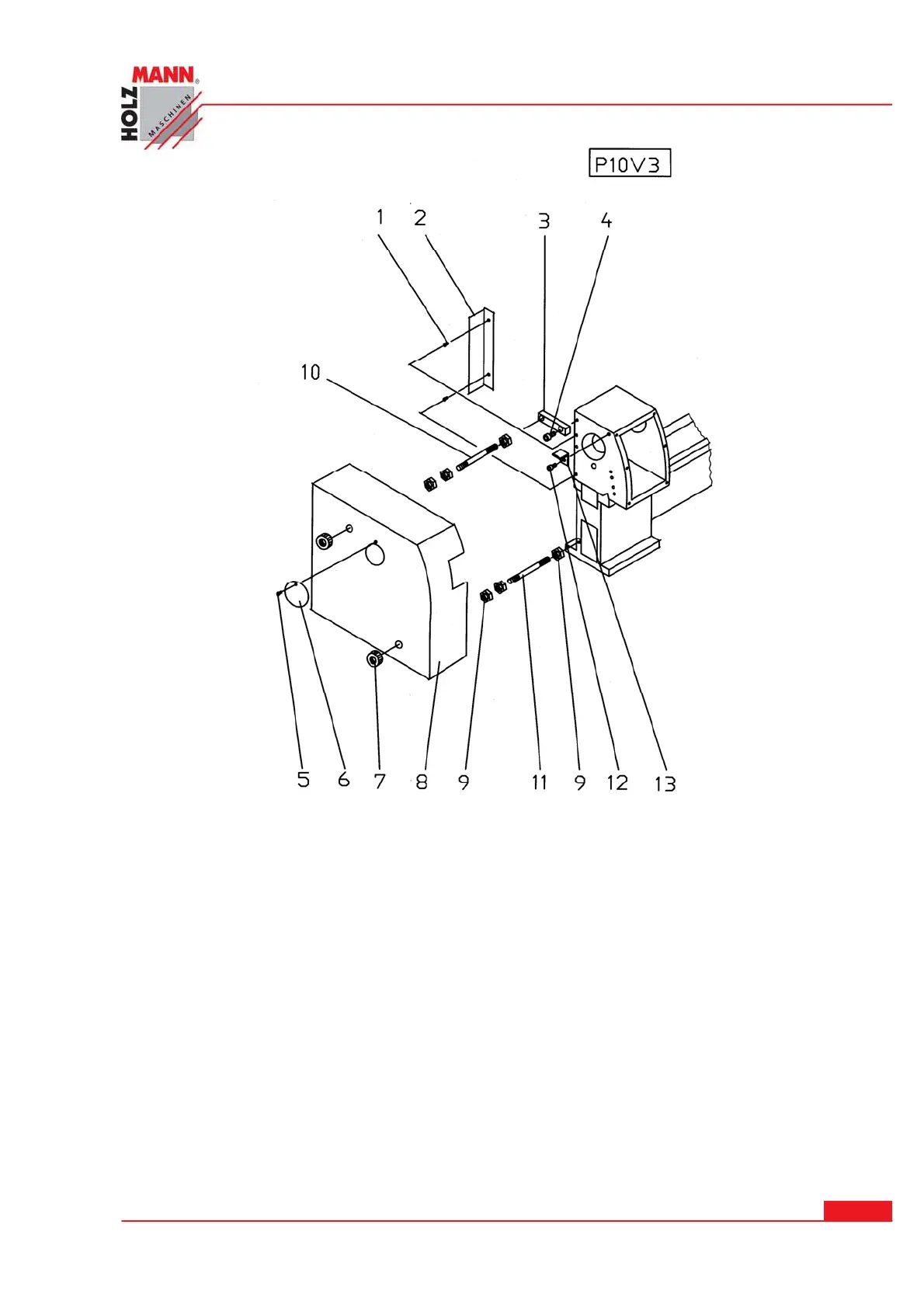

Metalldrehmaschine / metal turning lathe ED 750 FDQ
P1 0 V3
1 ……………………GB10V301 ….……………………………….…CAP SCREW M4X6
2 ……………...………P10V301 ………………………………..…………………SHIELD
3 ………………...……P10V302 ……………………………………………..... SUPPORT
4 ……………………GB10V302 …………………………………..CAP SCREW M10X20
5 ……………………GB10V303 ………………….……...…………CAP SCREW M6X10
6 …………………...…P10V303 ……………………………………………..……COVER
7 ……………………...P10V304 ……………………………………...………………NUT
8 ………………………P10V305 …………………………………………..………COVER
9 ……………………GB10V304 …………...……………………...………. HEX NUT M8
10 ………………………P10V306 …………………………….………….…………SCREW
11 ………………………P10V307 ……………………………………..……………SCREW
12 …………………... GB10V305 ……………………………………CAP SCREW M6X12
13 ………………………P10V308 ………………………………………………...SUPPORT
