ERSATZTEI LE / SPARE PARTS
HOLZMANN Maschinen Austria www.holzmann-maschinen.at
Seit e 4 5
Metalldrehmaschine / metal turning lathe ED 750 FDQ

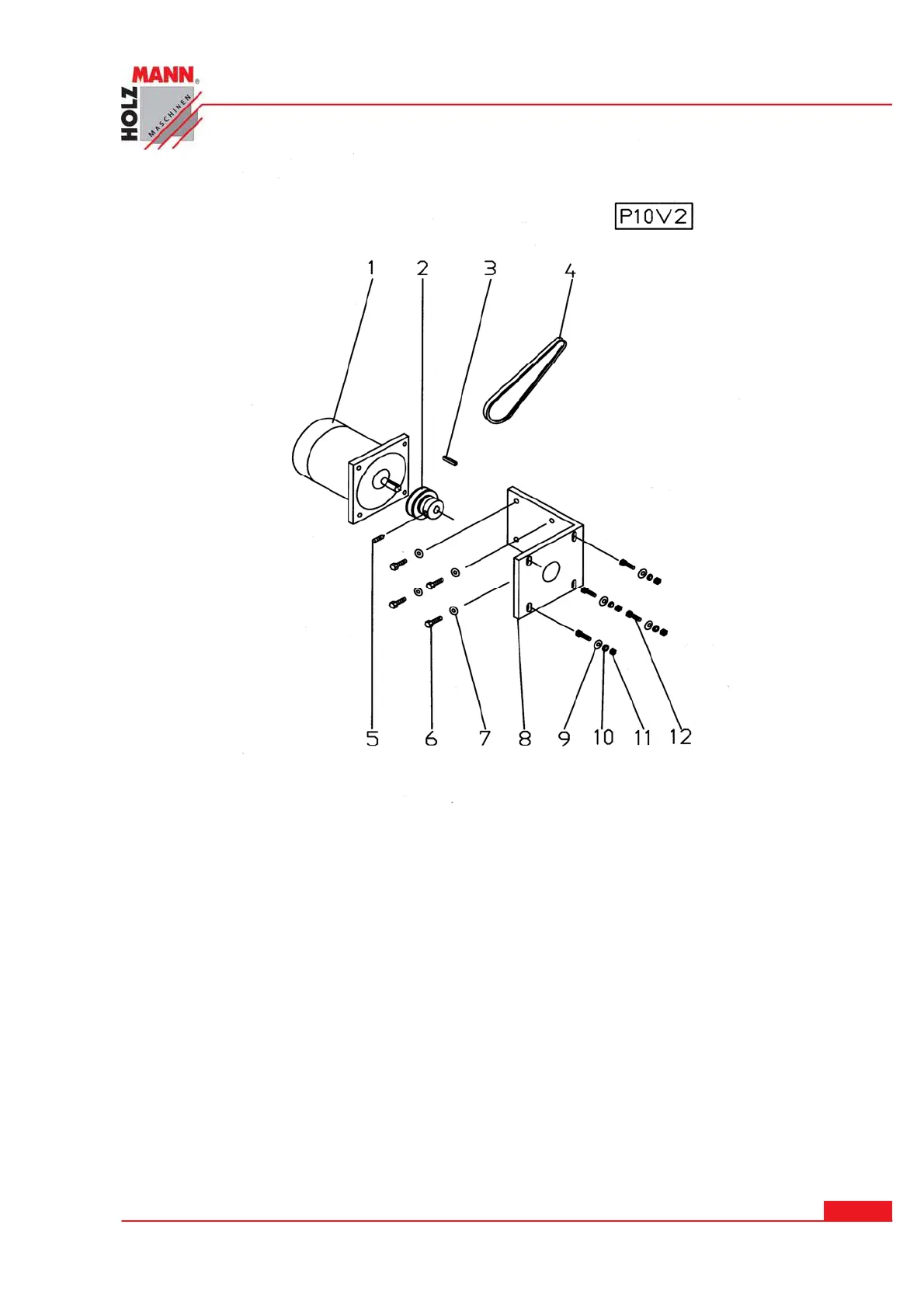

P1 0 V2
1 ………………………P10V201 ….………………………………………………MOTOR
2 ……………………P10V202 …………………………………………………PULLEY
3 ……………………GB10V201 …………………………………................. KEY--C4X32
4 ……………………GB10V202 ………………….……………...…….. V-BELT—7M730
5 ……………………GB10V203 ………………….………………...SET SCREW—M5X8
6 ……………………GB10V204 ………………………….………CAP SCREW—M8X25
7 ……………………GB10V205 ……………………….…………………WASHER-8MM
8 ……………………P10V203 ……………………………………..…………BRACKET
9 ……………………GB10V206 ………………………………...………. WASHER-8MM
10 ……………………GB10V207 ……………………….…………LOCK WASHER-8MM
11 ……………………GB10V208 ……………………………………………HEX NUT-M8
12 …………………. GB10V209 ……………………………………CAP SCREW-M8X30
