Metalldrehmaschine / metal turning lathe ED 750 FDQ
2 2 ERSATZTEI LE / SPARE PARTS

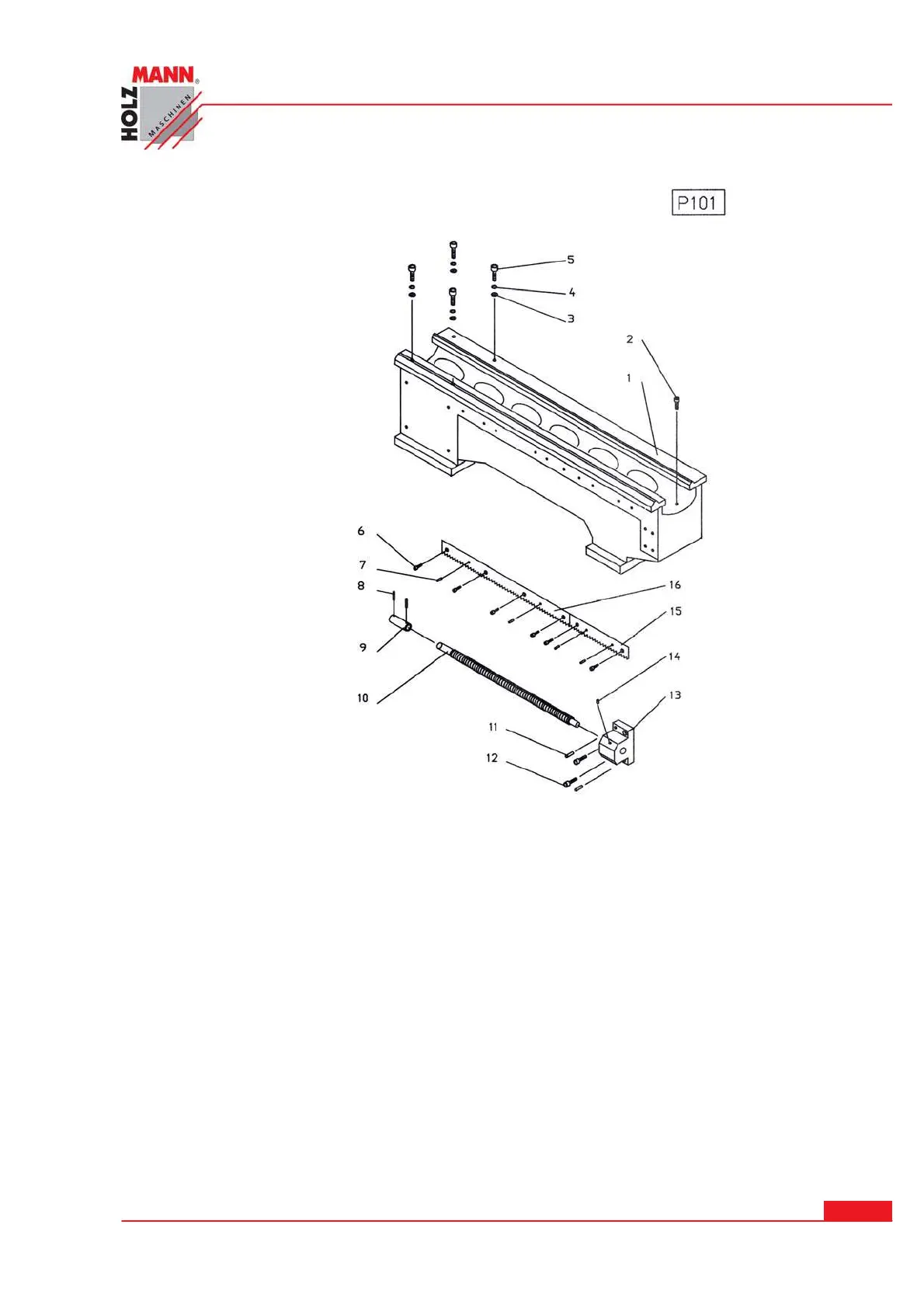

P1 0 1
1---------------P10101------------------------------------------------------------------------BED
2------------ GB10101----------------------------------------------------CAP SCREW M6x16
3------------GB10102----------------------------------------------------FLAT WASHER 8mm
4------------GB10103---------------------------------------------------LOCK WASHER 8mm
5------------GB10104-----------------------------------------------------CAP SCREW M8x25
6------------GB10105-----------------------------------------------------CAP SCREW M4x12
7------------GB10106----------------------------------------------------------------PIN 5x12
8------------GB10107----------------------------------------------------------------PIN 4x20
9--------------P10102---------------------------------------------------------------------COLLAR
10-------------P10103-------------------------------------------------------------FEED SCREW
11-----------GB10108--------------------------------------------------------PIN 6x25
12-----------GB10109-----------------------------------------------------CAP SCREW M6x16
13-------------P10104------------------------------------------------------------------BRACKET
14-----------GB10110----------------------------------------------------------------OIL PORT 6
15-------------P10105------------------------------------------------------------------------RACK
16-------------P10106------------------------------------------------------------------------RACK
