ERSATZTEI LE / SPARE PARTS
HOLZMANN Maschinen Austria www.holzmann-maschinen.at
Seit e 4 9
Metalldrehmaschine / metal turning lathe ED 750 FDQ
39 ………………………P10V424 ……………………………………….... SPACING RING
40 ………………………P10V425 …………………………......…HEADSTOCK CASTING
41…………………………P10V426……………………………………………………………………..GEAR 40T

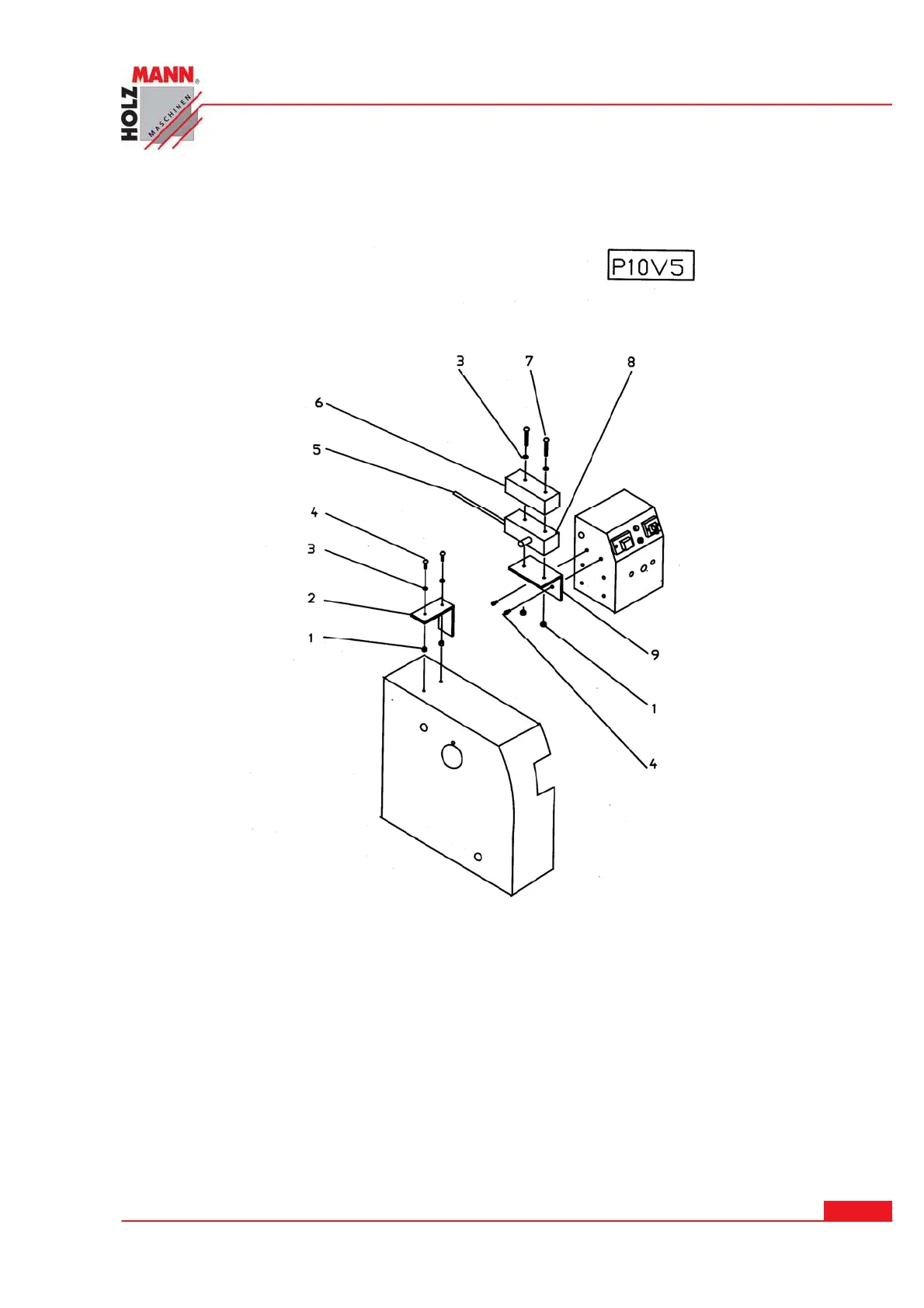

P1 0 V5
1 ………………………GB10501 …………………………………………HEX NUT M4
2 ………………...………P10501 ……………………….………………………BRACKET
3 ………………………GB10502 ……………………….……….. FLAT WASHER 4mm
4 ………………………GB10503 …………………………….………….. SCREW M4x8
5 ………………………GB10504 …………………………………………CABLE 2x0.75
6 ………………………GB10505 ……………………………………..…SWITCH COVER
7 ………………………GB10506 ……………..…………………………SCREW M4x30
8 ………………………GB10507 …………………………………SWITCH LXW5-11D1
9 …………...……………P10502 ………………………….……………………BRACKET
