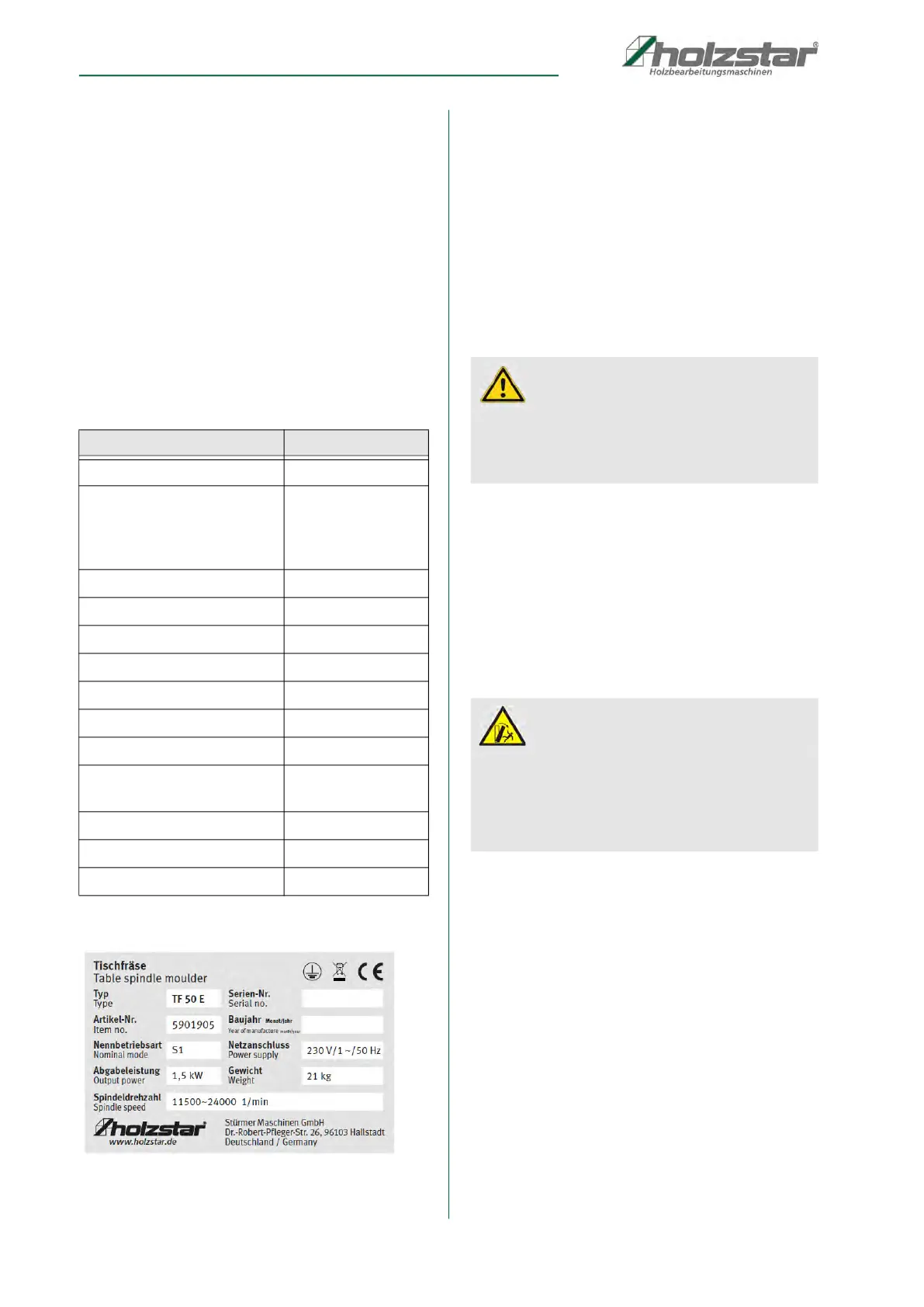

8 TF 50 E | Version 1.05
Technical data
3.2 Residual risks
Even if all safety regulations are observed and if the
machine is operated properly, there are residual risks
which are listed as follows:
- Risk of injury to hands and fingers from the rotating
milling spindle.
- Risk of injury from contact with live components.
- Risk of injury from flying parts.
- Danger from inhaling wood dust.
- Risk of injury from the moving tool after switching on
the machine.
- Damage to hearing if ear protection is damaged.
4 Technical data
4.1 Type plate
Fig. 2: TF 50 E type plate
5 Transport, packaging, storage
5.1 Delivery
After delivery, always check the table router for visible
transport damage and completeness. If the table router
shows any signs of damage or parts are missing, inform
the carrier or distributor immediately.
5.2 Transport
The improper transport of individual devices and
packaged or unpackaged devices that are stacked on top
of one another or next to one another unsecured, is liable
to cause accidents and damage or malfunctions for which
we cannot assume liability or provide any guarantee.
Transport the scope of delivery secured against shifting
or tilting with a sufficiently dimensioned industrial truck to
the installation site.
General risks during internal transport
Loads may only be transported by authorised and
qualified persons. Act responsibly during transport and
always consider the consequences. Refrain from daring
and risky actions.
Gradients and descents (e.g. driveways, ramps and the
like) are particularly dangerous. If such passages are
unavoidable, special caution is required.
Before starting the transport check the transport route for
possible danger points, unevenness and disturbances
as well as for sufficient strength and load capacity.
Danger points, unevenness and disturbance points must
be inspected before transport. The removal of danger
spots, unevenness, and disturbances by other
employees at the time of transport presents a major risk.
Careful planning of internal transport is therefore
essential.
Model TF 50 E
Supply voltage 230 V / 50Hz
Drive motor
Power
Protection class
Rated operation type
1.5 kW
IP20
S1
Spindle speed(s) 11500-24000 rpm
Working table length 610 mm
Working table width 360 mm
Table height 311 mm
Milling spindle stroke 40 mm
Spindle mandrel diameter 6 / 8 / 12 mm
Tool diameter max. 50 mm
Height adjustment of
spindle
40 mm
Suction nozzle diameter 100 mm
Dimensions [LxWxH] 1030x360x311 mm
Weight 21 kg
CAUTION!
Risk of injury from devices falling over or falling from
a forklift, pallet truck or transport vehicle.
Only use transport devices and load suspension gear
that can hold the total weight of the load.
CAUTION: DANGER OF TIPPING
The device may be lifted unsecured by a maximum
of 2cm.
Employees must remain outside the danger zone
and out of range of the load.
Warn employees and advise them of the hazard.
