Description of the device
TF 50 E | Version 1.05 9
Transport with a forklift/pallet truck:
The device is packaged in a wooden crate and delivered on
a pallet so that it can be transported with a forklift or pallet
truck.
Fig. 3: Transport
5.3 Packaging
All packaging materials and packaging aids used for the
table router are recyclable and must therefore always be
recycled.
The delivery packaging is made of cardboard, so please
dispose carefully by having it chopped up and given to
the recycling collection.
The films are made of polyethylene (PE) and the
upholstery parts are made of polystyrene (PS). Deliver
these substances to a collection point for recyclable
materials or to the waste disposal company which looks
after your region.
5.4 Storage
The table router must be cleaned thoroughly prior to
storage in a clean, dry, frost-free environment. Cover the
machine with a protective tarpaulin.
Ambient temperature range: –25 °C to +55 °C.
6 Description of the device
6.1 Machine
Illustrations in these operating instructions may
deviate from the original.

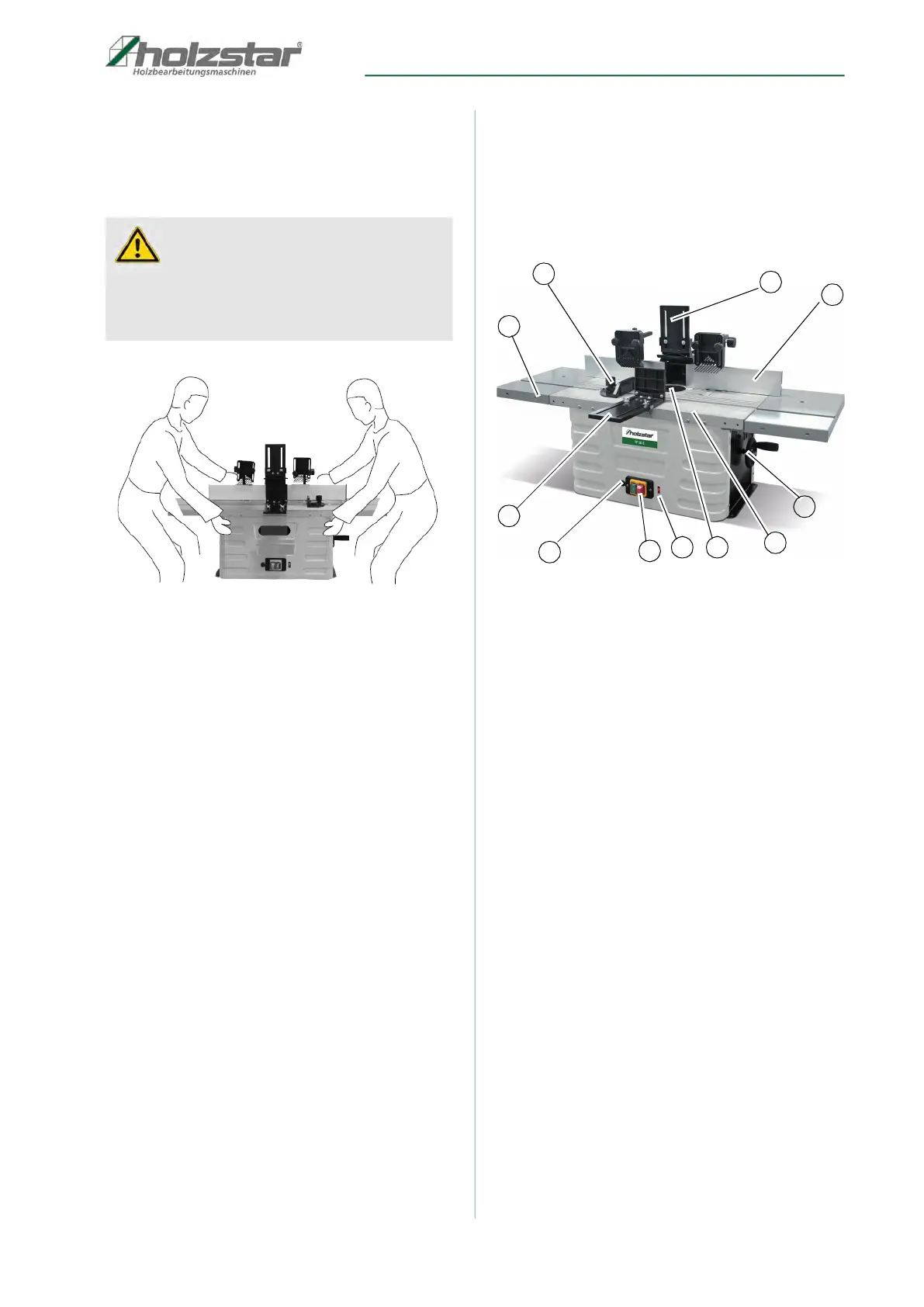

Fig. 4: Table router TF 50 E
1 Table extension
2 Angle fence
3 Top clamping bracket
4 Spindle fence
5 Height adjustment
6 Tabletop
7 Table rings
8 Speed control
9 ON/OFF switch
10 Overload protection switch
11 Side clamping bracket
6.2 Scope of delivery
- Miter fence
- Table extension
- Aluminum routing fence
- Assembly tool
- Collets for 6, 8, and 12 mm
CAUTION!
The machine must always be lifted and carried by
two people at any one time. Hold the table router at
the designated points. Lift and carry the device
slowly and carefully.
7
9
10
5
11
2
6
1
4
3
8
