18 TKS Serie | Version 1.04
Work instructions
13.5 Cross cutting narrow workpieces
TKS 200 / TKS 254 E
Adjust the protective rail so that the parts of the
workpiece do not come into contact with the upward
rotating part of the saw blade. Only feed workpieces to
the saw blade with a cross stop (Fig.33).

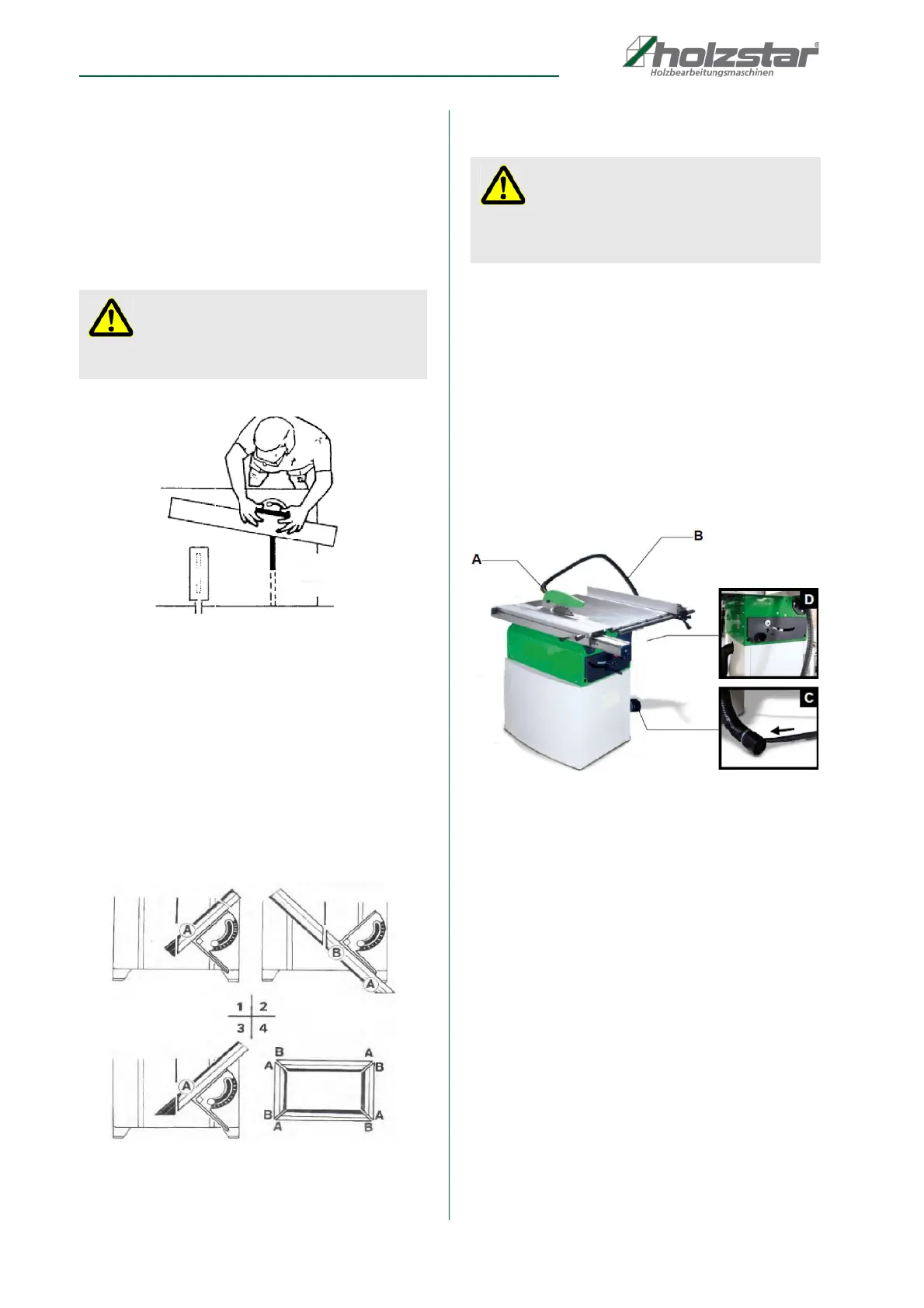

Fig. 33: Cutting with cross stop
13.6 Work with the help of the angle stop
TKS 200 / TKS 254 E
The angle stop can be inserted into the machine table T-
slots on the right or left side of the saw blade. Cross sec-
tions can be made by turning the stopper at all angles.
The 90 ° milled angle stop is particularly suitable for ex-
act miter cuts. See the example for cutting frames.
(Fig.34)
Fig. 34: Working with angle stop
13.7 Suction
The use of a suction system is essential. An extraction
system prevents the inhalation of dust and contributes to
a better machine operation.
Step 1: Connect one end of the enclosed suction hose
(A) to the suction connection of the saw blade
cover (B), and the other end of the hose to the 30
mm connection on the main suction pipe (C).
Step 2: Then connect the suction tube of a sufficiently di-
mensioned extraction system to the 100 mm
main suction tube (C) of the machine.
Fig. 35: Intake manifold
A - Suction nozzle Saw blade cover Ø 30 mm
B - Extraction hose Ø 30 mm
C - Main-Suction pipe Ø 100 mm / Ø 30 mm
D - Suction pipe Ø 100 mm
ATTENTION!
Do not remove any pieces of wood with your hands
from the sawing tool area while the saw is running.
ATTENTION!
The saw may only be used in combination with an
adequate extraction system. The extraction system
must always be switched on in front of the saw unit.
