Work instructions
TKS Serie | Version 1.04 19
13.8 Selection of saw blades

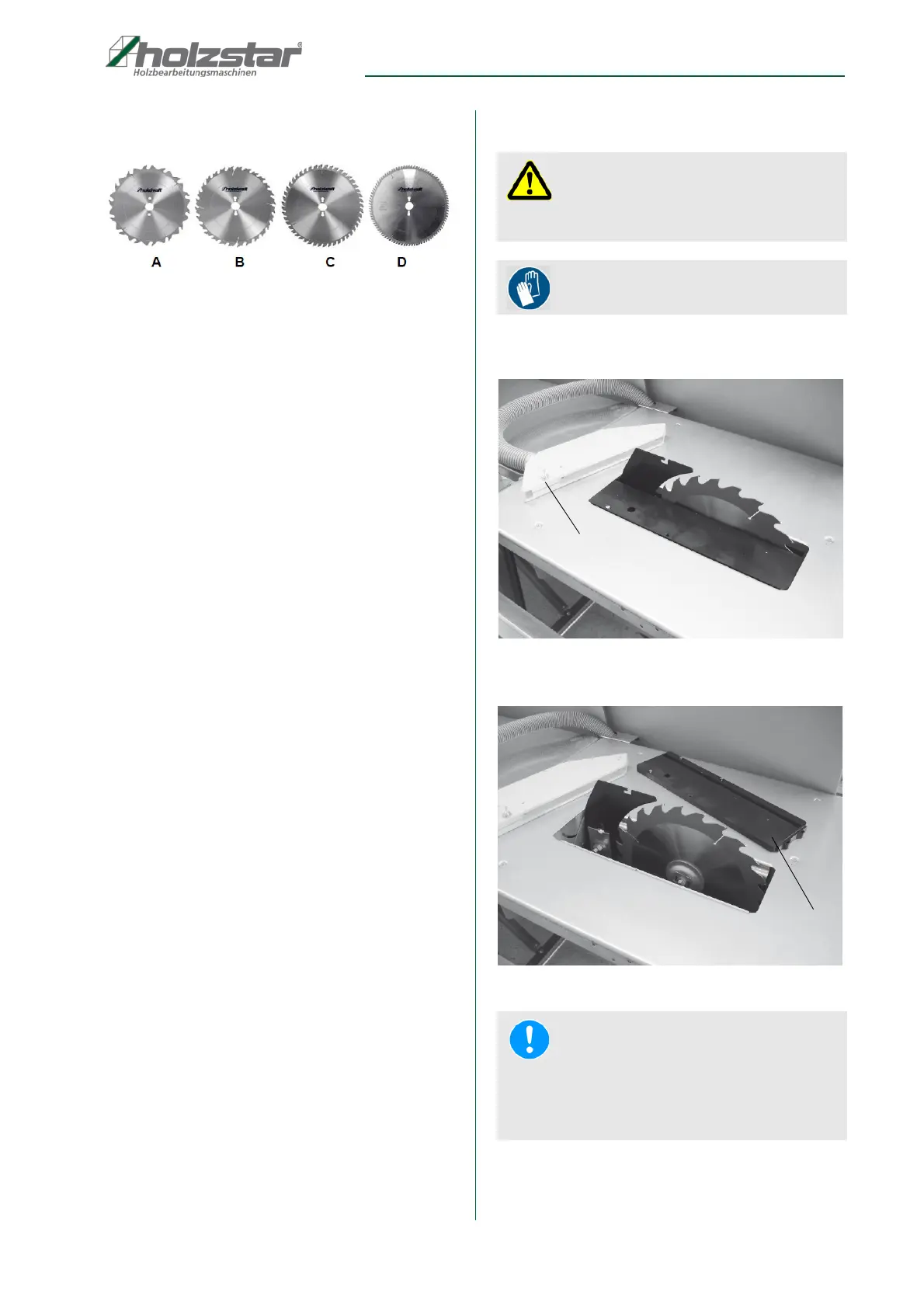

Fig. 36: Blade types
A - Cutting flat tooth saw blade
For all-round use
Diameter:............................................................ 250mm
Drilling: ................................................................. 30mm
Cutting width:....................................................... 3,2mm
Teeth: .................................................................. 18 Stk.
B - Cutting replacement circular saw blade
For longitudinal and cross sections in solid wood and
board materials; Tension limitation reduces cutting brea-
kage due to loose branches and other inclusions.
Diameter:............................................................ 250mm
Drilling: ................................................................. 30mm
Cutting width:....................................................... 3,2mm
Teeth: .................................................................. 24 Stk.
C - Edging and production cut circular saw blade
For finishing cuts in solid wood and other materials.
Diameter:............................................................ 250mm
Drilling: ................................................................. 30mm
Cutting width:....................................................... 3,2mm
Teeth: .................................................................. 40 Stk.
D - Special format and edging circular saw blade
For board materials coated with veneer, plastic, mel-
amine, paper, etc .; For table saws, folding and miter cir-
cular saws, 30 ° alternating tooth and negative clamping
angle ensure tear-free cutting without the use of a pre-
setting unit, noise-dampening by special laser elements
for noise reduction.
Diameter:............................................................ 250mm
Drilling: ................................................................. 30mm
Cutting width:....................................................... 3,0mm
Teeth: .................................................................. 80 Stk.
13.9 Replacing the saw blade
- Saw blade change: Loosen the thumbscrew from the
extraction hood (20) and remove it.
Fig. 37: Change the Saw blade
- Remove the 5 screws from the table insert (19) and
remove them.
Fig. 38: Remove the table insert
- Set the saw blade all the way up and loosen the
screw with the saw blade wrench. Attention! left-
hand thread
DANGER!
Switch off the machine at the ON / OFF switch and
pull out the mains plug!
Wear safety gloves!
NOTE!
When installing a new saw blade, make sure that the
shank diameter of the saw blade coincides with the
axis. You must never mount a saw blade with a larger
shaft diameter.
