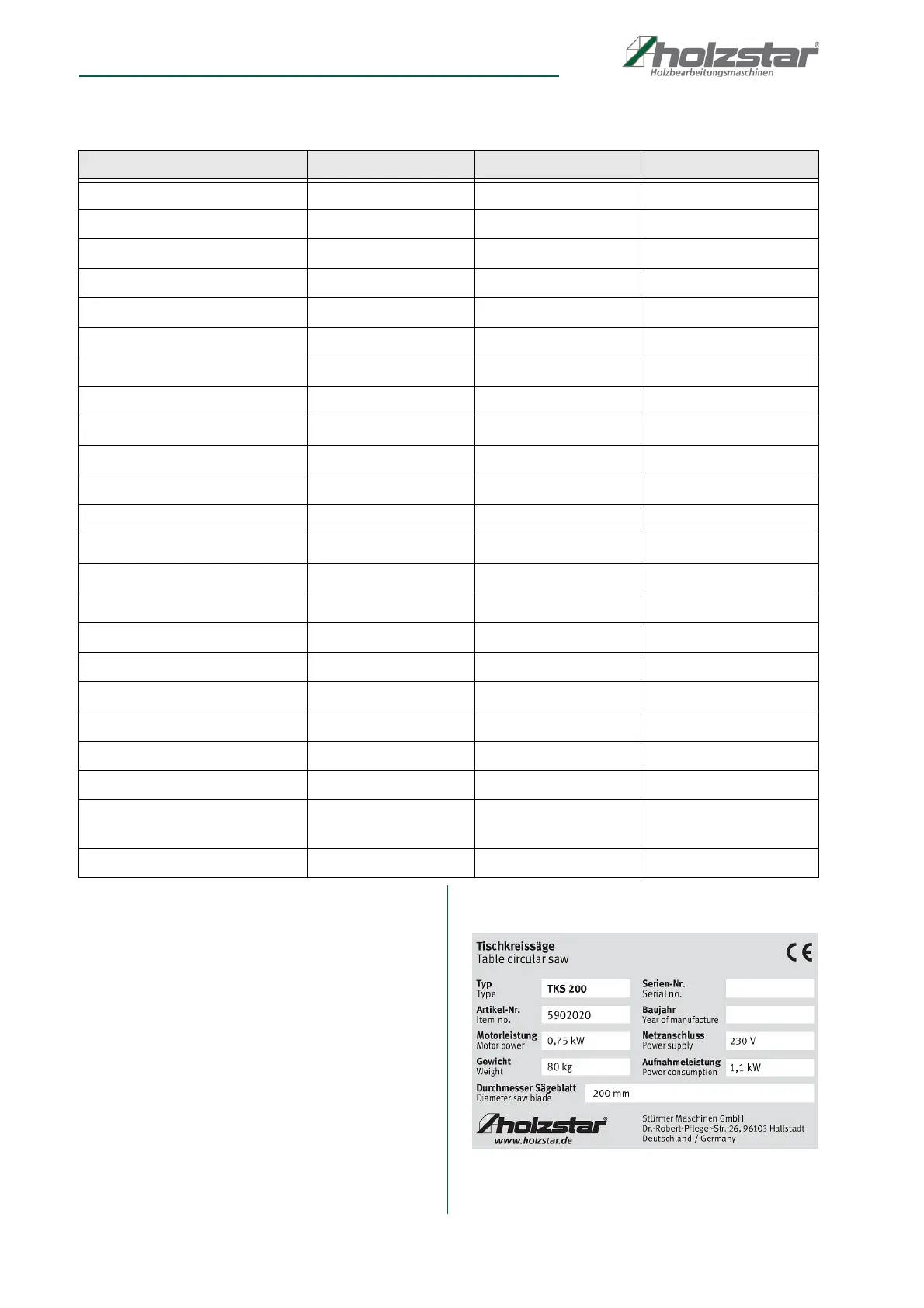

8 TKS Serie | Version 1.04
Technical Data
5 Technical Data
Information on dust emission
The dust emission values measured according to the
"Principles for the testing of dust emission
(concentration parameters) before woodworking
machinery" of the Timber Committee are less than 2 mg
/ m3. Thus, when the machine is connected to a proper
operational extraction system with at least 20 m / s air
velocity, it can be assumed that the TRC limit value for
wood dust in the Federal Republic of Germany is
permanently and reliably adhered to.
5.1 Type plate
Fig. 2: Type plate TKS 200
Model TKS 200 / 230 V
TKS 254 E 230V / 400V
TKS 254 PRO 230V / 400V
Length x Width x Height 1430 x 1000 x 1030 mm 1430 x 1000 x 1030 mm 1430 x 1000 x 1030 mm
Weight 80 kg 105 kg 131 kg
Speed of main motor 2800 U/min 2800 U/min 2800 U/min
Electric output 1,1 kW 2,1 kW 2,1 kW
Total connected load 4,6 A 9,3 A / 3,5 A 9,3 A / 3,5 A
Supply voltage 230 V 230 V / 400 V 230 V / 400 V
Input power 1.1 kW 2,1 kW / 2 kW 2,1 kW / 2 kW
(Main) saw blade speed 4750 'min‾¹ 4000 'min‾¹ 4000 'min‾¹
Driving motor output 0,75 kW 1,5 kW 1,5 kW
Ø Extraction port diameter bottom 100 mm 100 mm 100 mm
Ø Extraction port diameter top 30 mm 30 mm 30 mm
Table height 870 mm 850 mm 835 mm
Table width 400 mm 420 mm 480 mm
Table length 530 mm 635 mm 720 mm
Sliding carriage width 250 mm 250 mm 250 mm
Sliding carriage length 400 mm 400 mm 400 mm
Ø (Main) saw blade 200 mm 254 mm 254 mm
Max. cutting height 45° 48 mm 58 mm
Max. cutting height 90° 60 mm 80 mm 80 mm
Max. cutting height -45° 54 mm
Max. cutting width with rip fence 705 mm 680 mm 610 mm
Max. cross cut width left from saw
blade
635 mm 650 mm 550 mm
Saw blade angle 45 - 90 ° 45 - 90 ° 90 - (-45) °
