FRONT WHEEl/SUSPENSION/STEERING

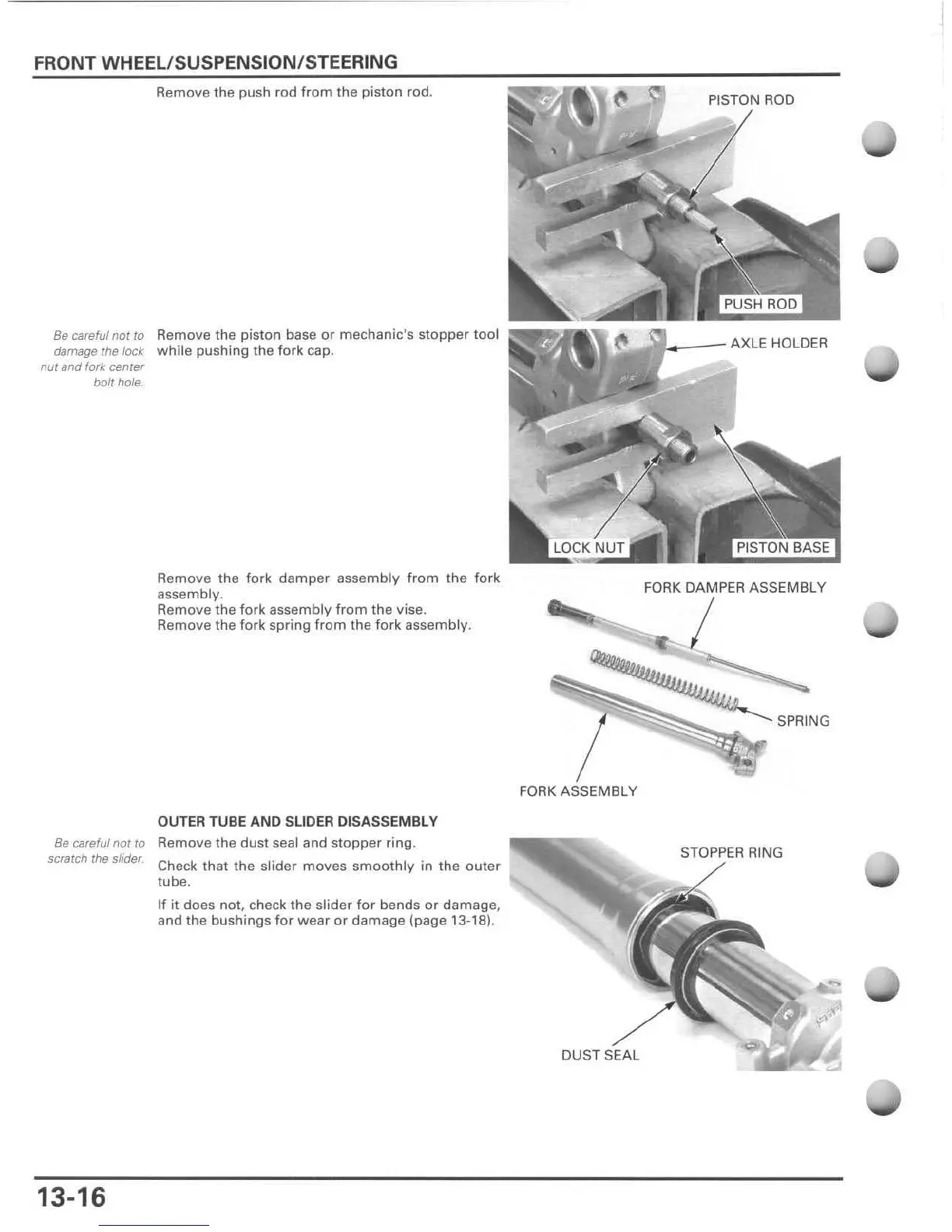

Remove the push rod from the piston rod.
Be careful nor to Remove the piston base or mechanic's stopper too l
damage the lock while pushing the fork cap.
nut and fork center
bolt hole
Remove the fork damper assembly from the fork
assembly.
Remove
the fork assembly from the vise.
Remove the fork
spring from the fork assembl y.
OUTER TUBE AND SLIDER DISASSEMBL V
Be careful nor to Remove the dust seal and st opper ring .
scratch the slider.
13-16
Check that the sl ider moves smoothly in the outer
tube.
If it does not, check the slider for bends or damage,
and the bushings
for wear or damage (page 13- '8).
PISTON RO O
FORK
DAM P ER ASSEMBLY
~
SPRING
FORK
ASSEMBLY

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
