Honda 2004 CRF250X Service Manual

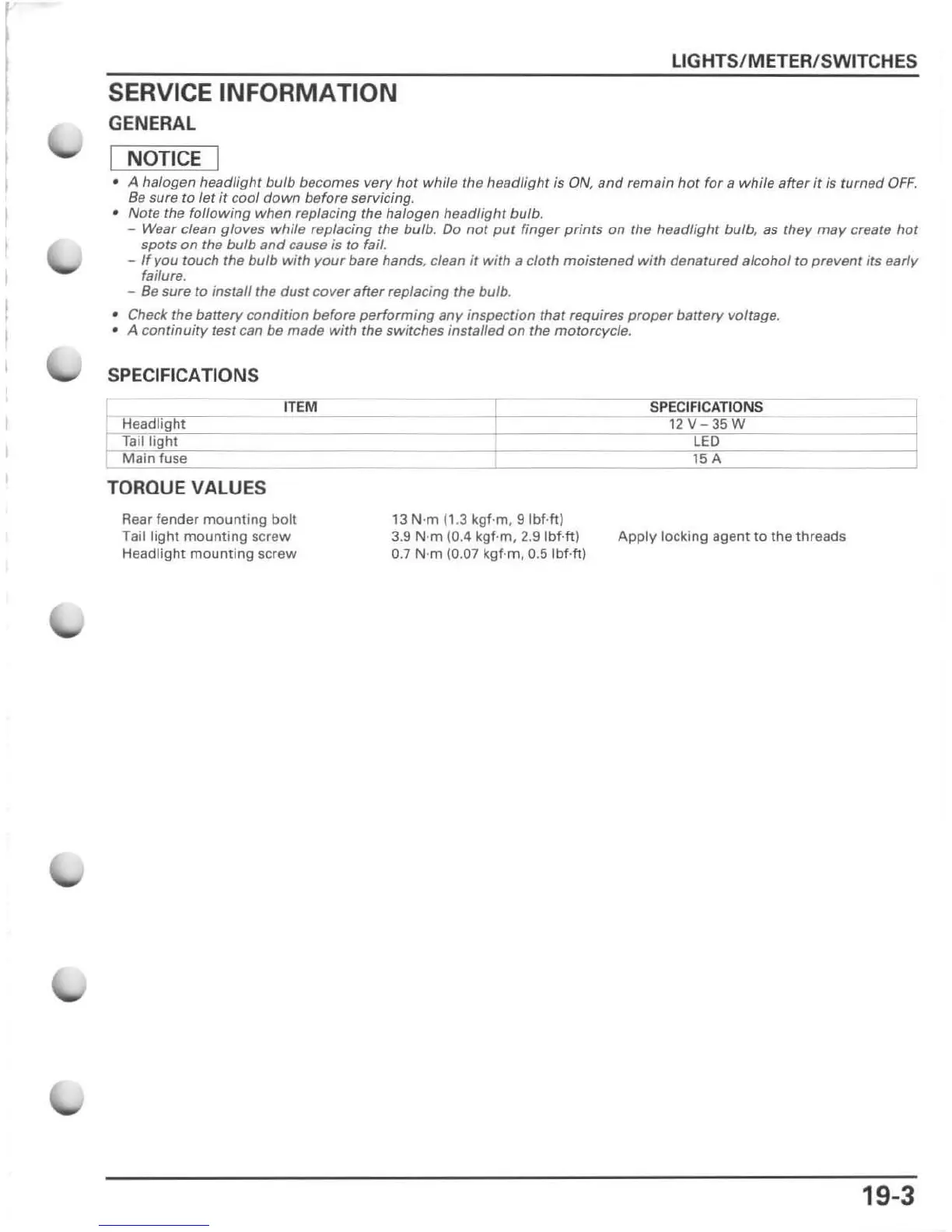

LIGHTS/METER/SWITCHES
SERVICE INFORMATION
GENERAL
NOTICE
• A halogen headlight bulb becomes very hot while the headlight is ON, and remain hot for a while after it is rumed OFF.
Be sure to let it cool down before servicing.
• Note the following when rep/acing the halogen headlight bulb.
- Wear clean gloves while replacing the bulb. Do not put finger prints on the headlight bulb, as they may create hot
spots on the bulb and cause is to fail.
- If you touch the bulb with your bare hands, clean it with 8 cloth moistened with denatured alcohol to prevent its Barly
failure.
- 8e sure to install the dust cover after replacing the bulb.
• Check the bacrery condition before performing any inspection that requires proper battery voltage.
• A continuity test can be made with the switches installed on the motorcycle.
SPECIFICATIONS
SPECIFICATIONS ~
-=±
=====~ 12V~-35W =-
LED
'5A
ITEM
TORQUE VALUES
Rear fender mounting bolt
Taillight mounting screw
Headlight mounting screw
13 N'm (1.3 kgf·m, 9Ibf.ft)
3.9 N'm (0.4 kgf·m, 2.9 IbUt)
0.7 N'm (0.07 kgf·m, 0.5 Ibf.ft)
Apply locking agent to the threads
19-3

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
