Honda 2004 CRF250X Service Manual

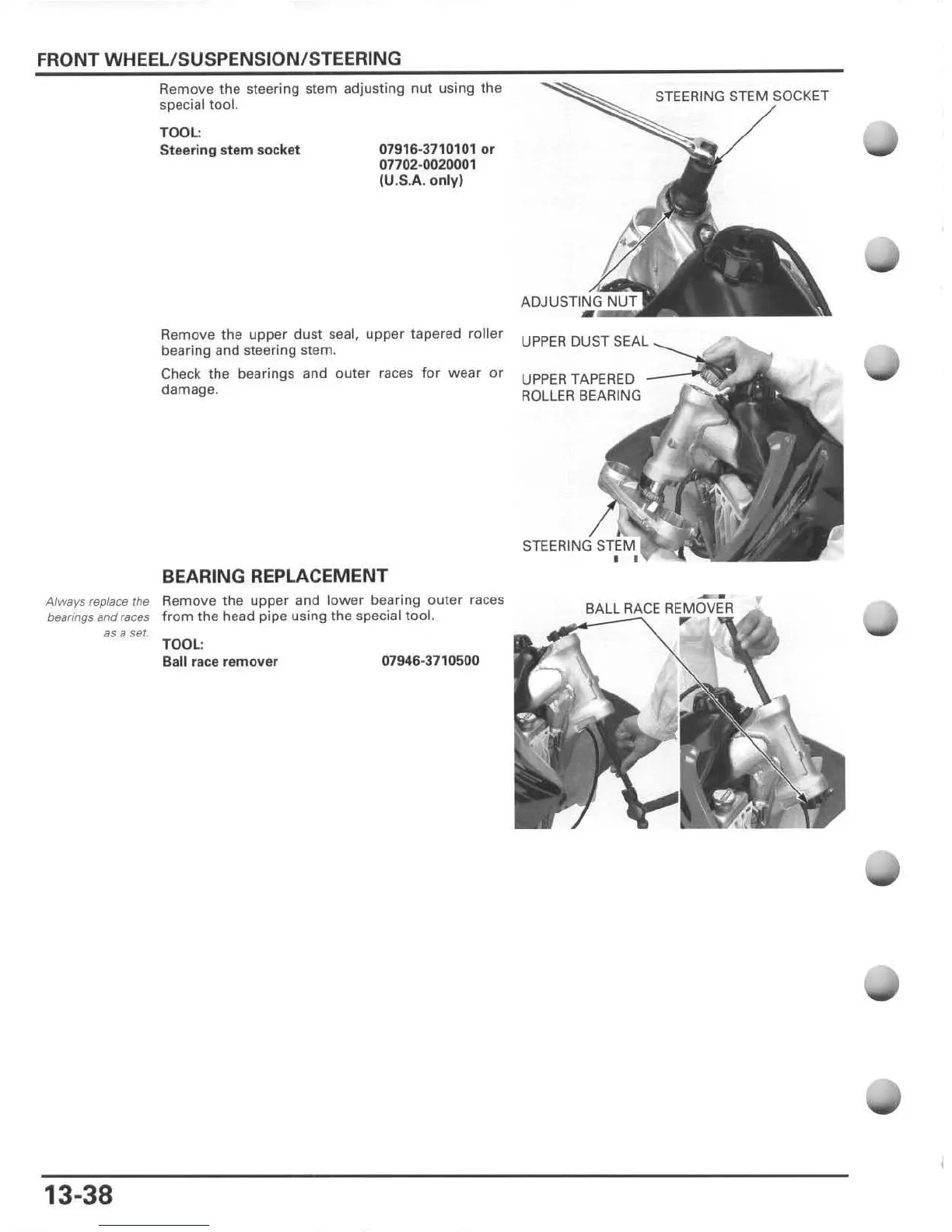

FRONT WHEEL/SUSPENSION/STEERING
Remove the steering stem adjusting nut using the
special too l.
TOOL :
Stee ring stem socket
07916 -3710101 or
07702-0020001
(U.S.A. only)
Remolle the upper dust seal, upper tapered roller
bearing and steering stem.
Check the bearings and outer races for wear or
damage.
BEARING REPLACEMENT
Always rep/ace the Remove the upper and lower b earing outer races
bearmgs and races from the head pipe using the special tool.
as a set.
TOOL :
Ball ra ce remover
07946-3710500
13-38
UPPER DUST SEAL
UPPER TAPERED
ROLLER BEARING
STEERING
STE ERI NG STEM SOCK"T
~
BALL RACE REMOVER
,
... "' . .... ;p"

Honda 2004 CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	78.0mm x 52.2mm
Compression Ratio	12.5:1
Induction	Keihin 37mm flat-slide carburetor
Transmission	5-speed
Final Drive	O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Rake (Caster Angle)	27.5°
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Ground Clearance	13.4 inches
Ignition	CD with electronic advance
