CYLINDER HEAD/VALVE

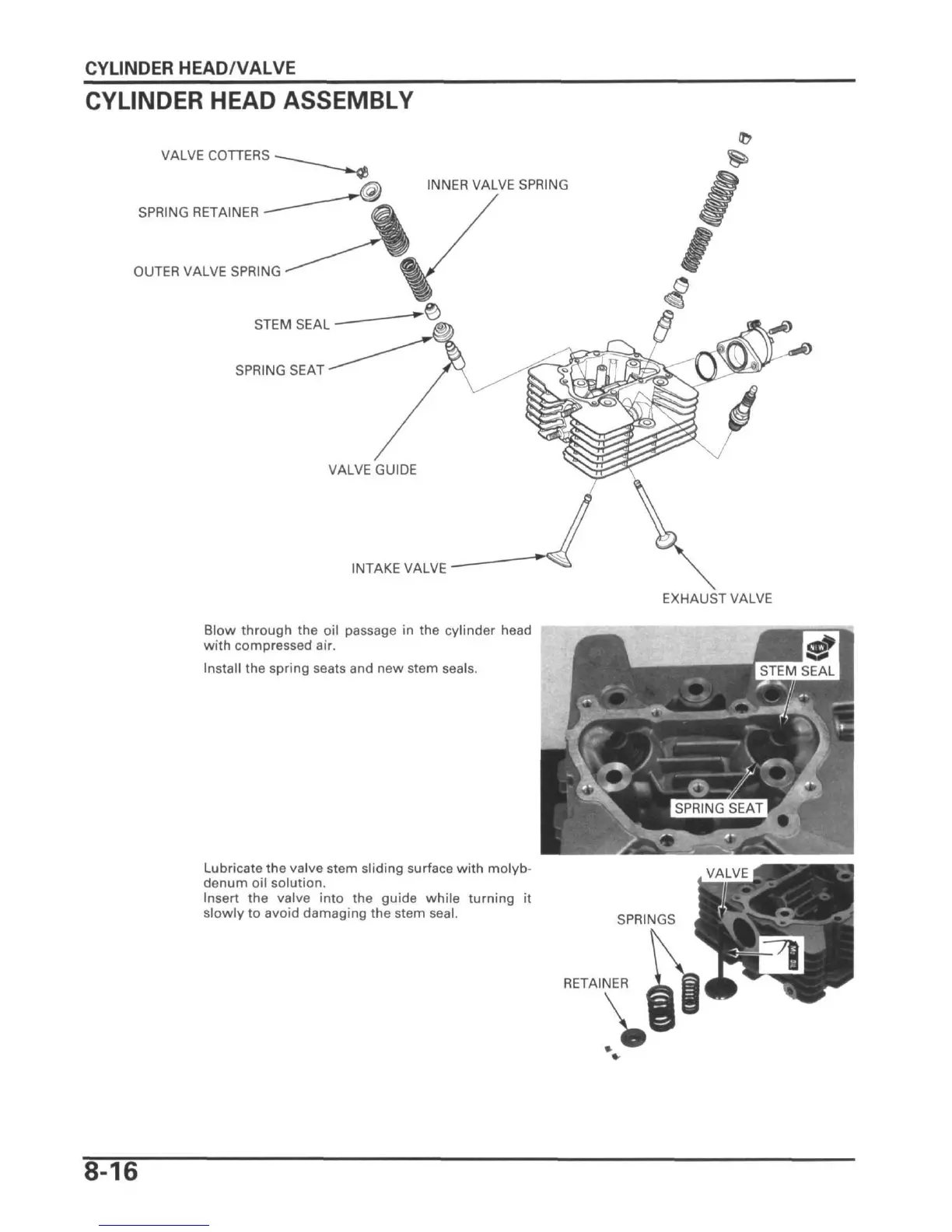

CYLINDER HEAD ASSEMBLY
VALVE COTTERS
SPRING RETAINER
OUTER VALVE SPRING
STEM SEAL
SPRING SEAT
VALVE GUIDE
INTAKE VALVE
Blow through the oil passage in the cylinder head
with compressed air.
Install the spring seats and new stem seals.
EXHAUST VALVE
Lubricate the valve stem sliding surface with molyb-
denum oil solution.
Insert the valve into the guide while turning it
slowly to avoid damaging the stem seal.
8-16
