FRAME/BODY PANELS/EXHAUST SYSTEM

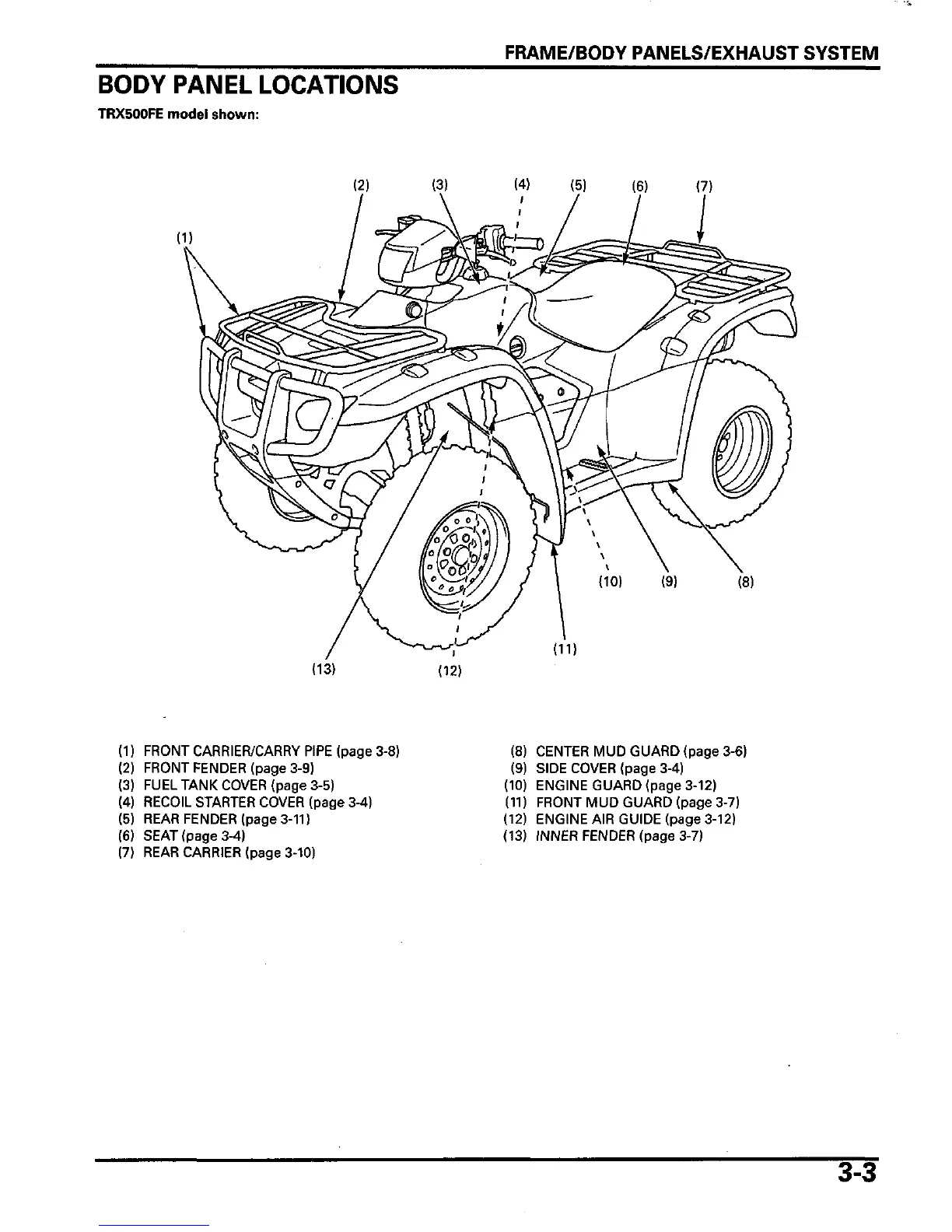

BODY PANEL LOCATIONS
TRX500FE model shown:
(2)
(3)
(8)
(11)
(13)
(1) FRONT CARRIER/CARRY PIPE (page 3-8)
(2) FRONT FENDER (page 3-9)
(3) FUEL TANK COVER (page 3-5)
(4) RECOIL STARTER COVER (page 3-4)
(5) REAR FENDER (page 3-11)
(6) SEAT (page 3-4)
(7) REAR CARRIER (page 3-10)
(8) CENTER MUD GUARD (page 3-6)
(9) SIDE COVER (page 3-4)
(10) ENGINE GUARD (page 3-12)
(11) FRONT MUD GUARD (page 3-7)
(12) ENGINE AIR GUIDE (page 3-12)
(13) INNER FENDER (page 3-7)
