FRAME/BODY PANELS/EXHAUST SYSTEM

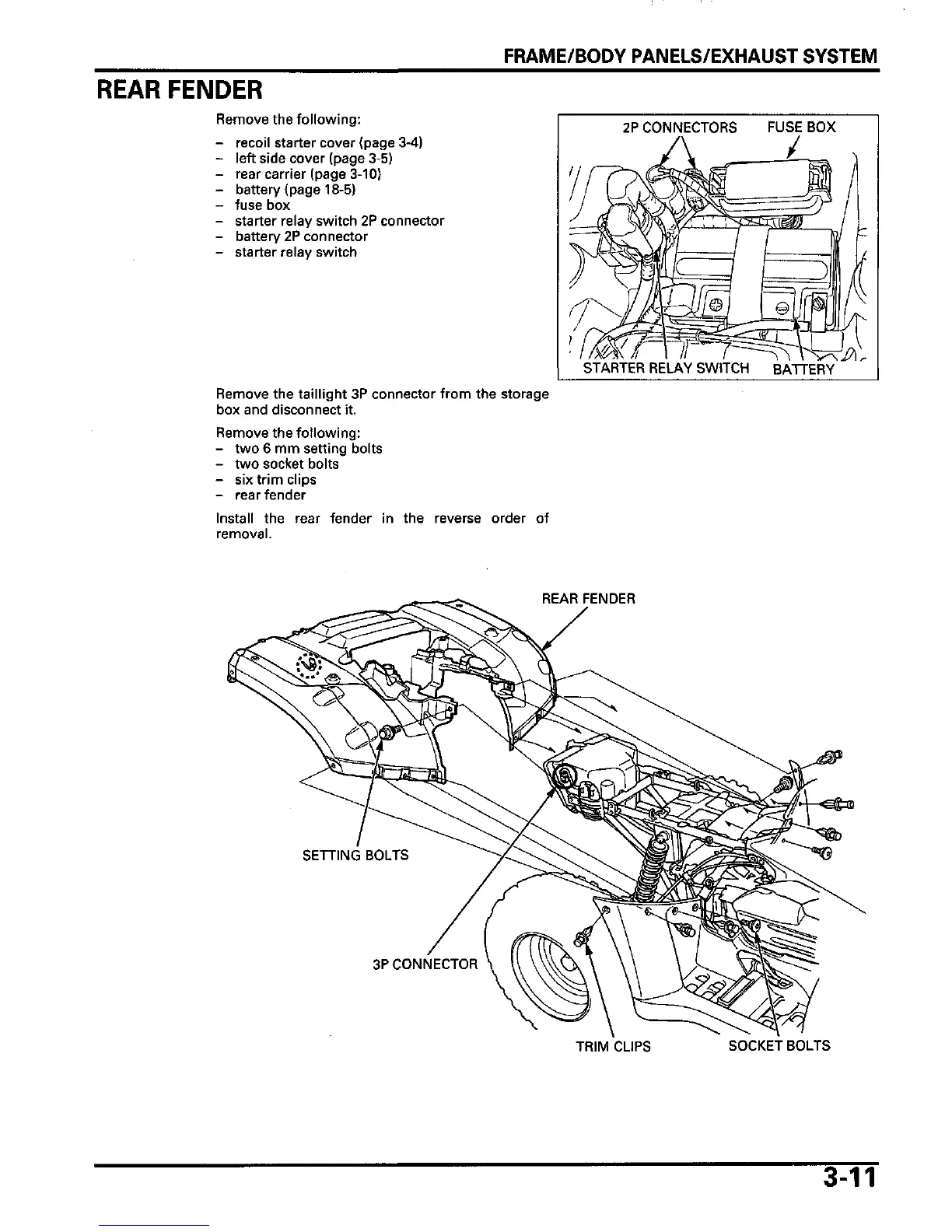

REAR FENDER
Remove the following:
- recoil starter cover (page 3-4)
- left side cover (page 3-5)
- rear carrier (page 3-10)
- battery (page 18-5)
- fuse box
- starter relay switch 2P connector
- battery 2P connector
- starter relay switch
2P CONNECTORS FUSE BOX
STARTER RELAY SWITCH BATTERY
Remove the taillight 3P connector from the storage
box and disconnect it.
Remove the following:
- two 6 mm setting bolts
- two socket bolts
- six trim clips
- rear fender
Install the rear fender in the reverse order of
removal.
REAR FENDER
SETTING BOLTS
3P CONNECTOR
TRIM CLIPS
SOCKET BOLTS
3-11
