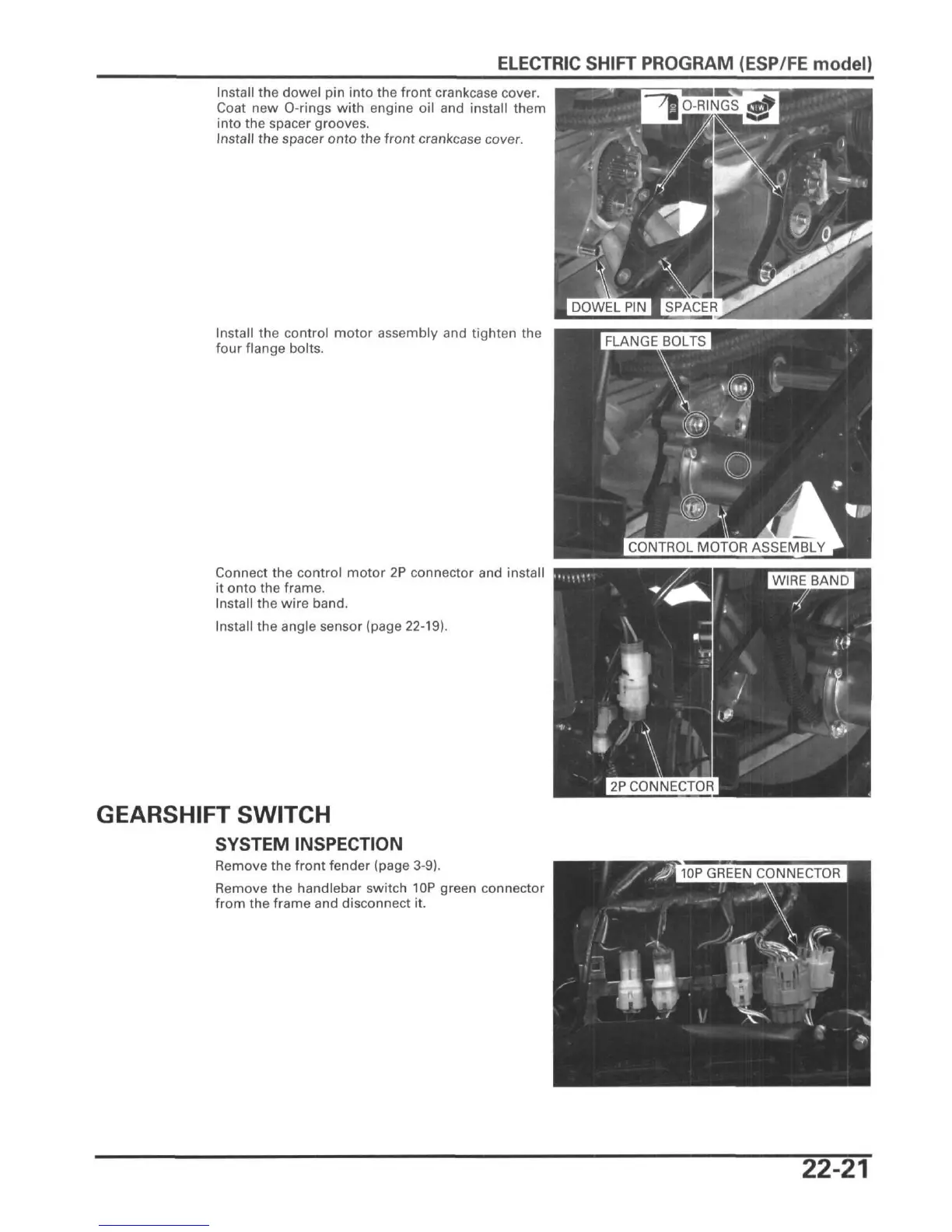

ELECTRIC SHIFT PROGRAM (ESP/FE model)
Install the dowel pin into the front crankcase cover.
Coat new O-rings with engine oil and install them
into the spacer grooves.
Install the spacer onto the front crankcase cover.
Install the control motor assembly and tighten the
four flange bolts.
Connect the control motor 2P connector and install
it onto the frame.
Install the wire band.
Install the angle sensor (page 22-19).
CONTROL MOTOR ASSEMBLY
GEARSHIFT SWITCH
SYSTEM INSPECTION
Remove the front fender (page 3-9).
Remove the handlebar switch 10P green connector
from the frame and disconnect it.
10P GREEN CONNECTOR
