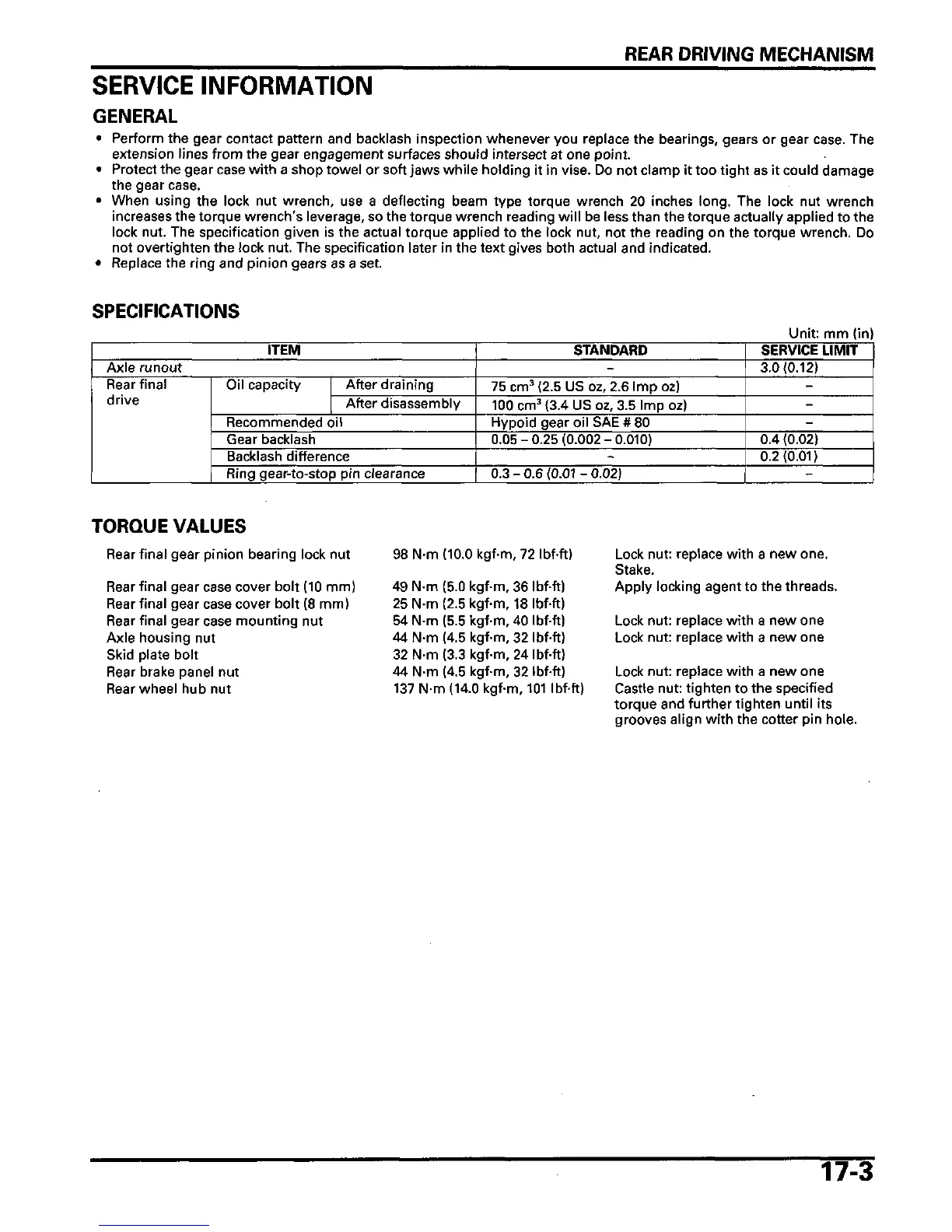

REAR DRIVING MECHANISM
SERVICE INFORMATION
GENERAL
• Perform the gear contact pattern and backlash inspection whenever you replace the bearings, gears or gear case. The
extension lines from the gear engagement surfaces should intersect at one point.
• Protect the gear case with a shop towel or soft jaws while holding it in vise. Do not clamp it too tight as it could damage
the gear case.
• When using the lock nut wrench, use a deflecting beam type torque wrench 20 inches
long.
The lock nut wrench
increases the torque wrench's leverage, so the torque wrench reading will be less than the torque actually applied to the
lock nut. The specification given is the actual torque applied to the lock nut, not the reading on the torque wrench. Do
not overtighten the lock nut. The specification later in the text gives both actual and indicated.
• Replace the ring and pinion gears as a set.
SPECIFICATIONS
Unit: mm (in)
ITEM
Axle runout
Rear final
drive
Oil capacity After draining
After disassembly
Recommended oil
Gear backlash
Backlash difference
Ring gear-to-stop pin clearance
STANDARD
-
75 cm
3
(2.5 US oz, 2.6 Imp oz)
100 cm
3
(3.4 US oz, 3.5 Imp oz)
Hypoid gear oil SAE # 80
0.05-0.25-(0.002-0.010)
-
0.3-0.6(0.01-0.02)
SERVICE LIMIT
3.0(0.12)
-
-
-
0.4 (0.02)
0.2(0.01)
-
TORQUE VALUES
Rear final gear pinion bearing lock nut
Rear final gear case cover bolt (10 mm)
Rear final gear case cover bolt (8 mm)
Rear final gear case mounting nut
Axle housing nut
Skid plate bolt
Rear brake panel nut
Rear wheel hub nut
98 N-m (10.0 kgf-m, 72 Ibfft)
49 N-m (5.0 kgf-m, 36 Ibfft)
25 N-m (2.5 kgf-m, 18 Ibfft)
54 N-m (5.5 kgfm, 40 Ibfft)
44 N-m (4.5 kgf-m, 32 Ibfft)
32 N-m (3.3 kgf-m, 24 Ibf ft)
44 N-m (4.5 kgf-m, 32 Ibf-ft)
137 N-m (14.0 kgf-m, 101 Ibf-ft)
Lock nut: replace with a new one.
Stake.
Apply locking agent to the threads.
Lock nut: replace with a new one
Lock nut: replace with a new one
Lock nut: replace with a new one
Castle nut: tighten to the specified
torque and further tighten until its
grooves align with the cotter pin hole.
17-3
