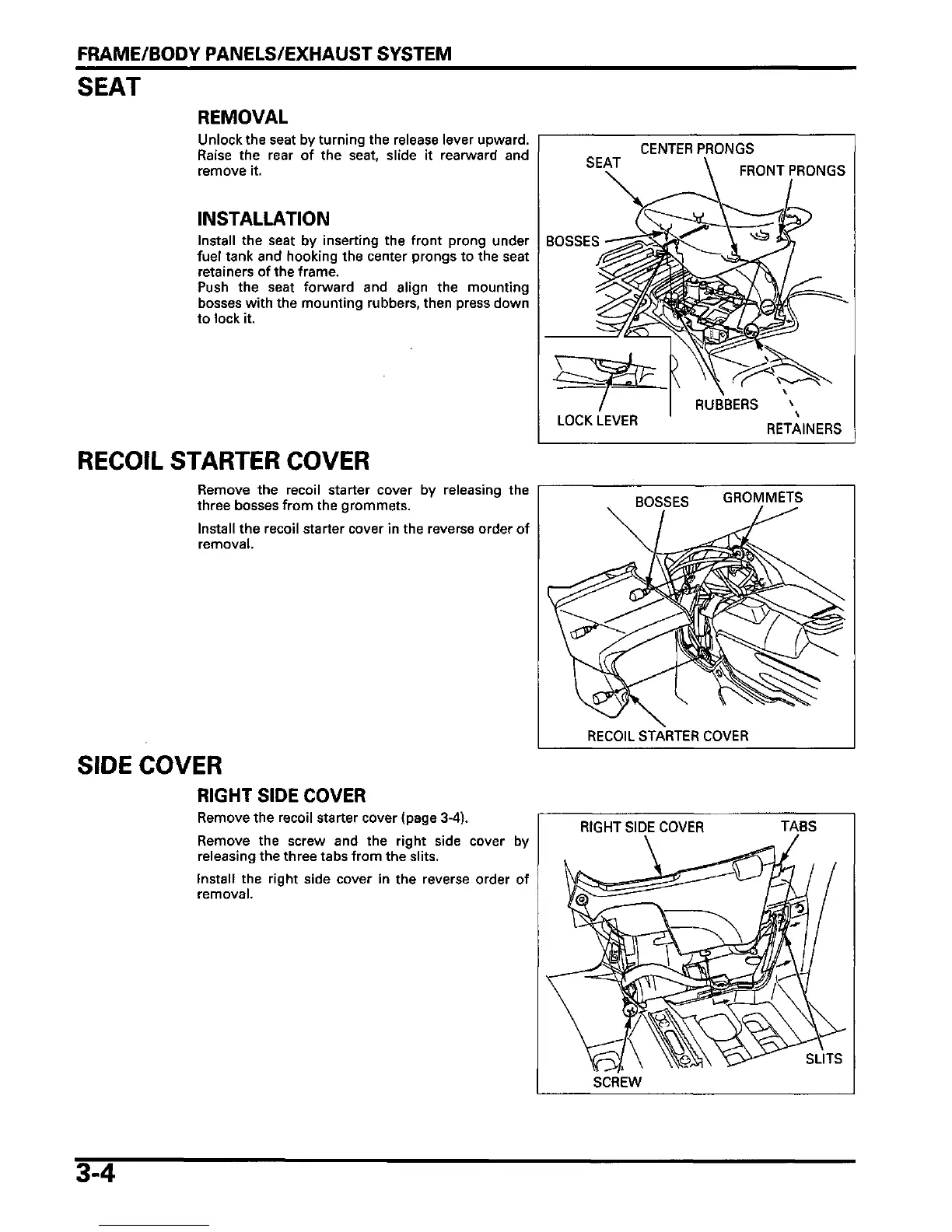

FRAME/BODY PANELS/EXHAUST SYSTEM
SEAT
REMOVAL
Unlock the seat by turning the release lever upward.
Raise the rear of the seat, slide it rearward and
remove it.
INSTALLATION
Install the seat by inserting the front prong under
fuel tank and hooking the center prongs to the seat
retainers of the frame.
Push the seat forward and align the mounting
bosses with the mounting rubbers, then press down
to lock it.
SEAT
CENTER PRONGS
FRONT PRONGS
BOSSES
LOCK LEVER
RUBBERS
RETAINERS
RECOIL STARTER COVER
Remove the recoil starter cover by releasing the
three bosses from the grommets.
Install the recoil starter cover in the reverse order of
removal.
BOSSES GROMMETS
RECOIL STARTER COVER
SIDE COVER
RIGHT SIDE COVER
Remove the recoil starter cover (page 3-4).
Remove the screw and the right side cover by
releasing the three tabs from the slits.
Install the right side cover in the reverse order of
removal.
RIGHT SIDE COVER
TABS
SLITS
SCREW
3-4
