FUEL SYSTEM

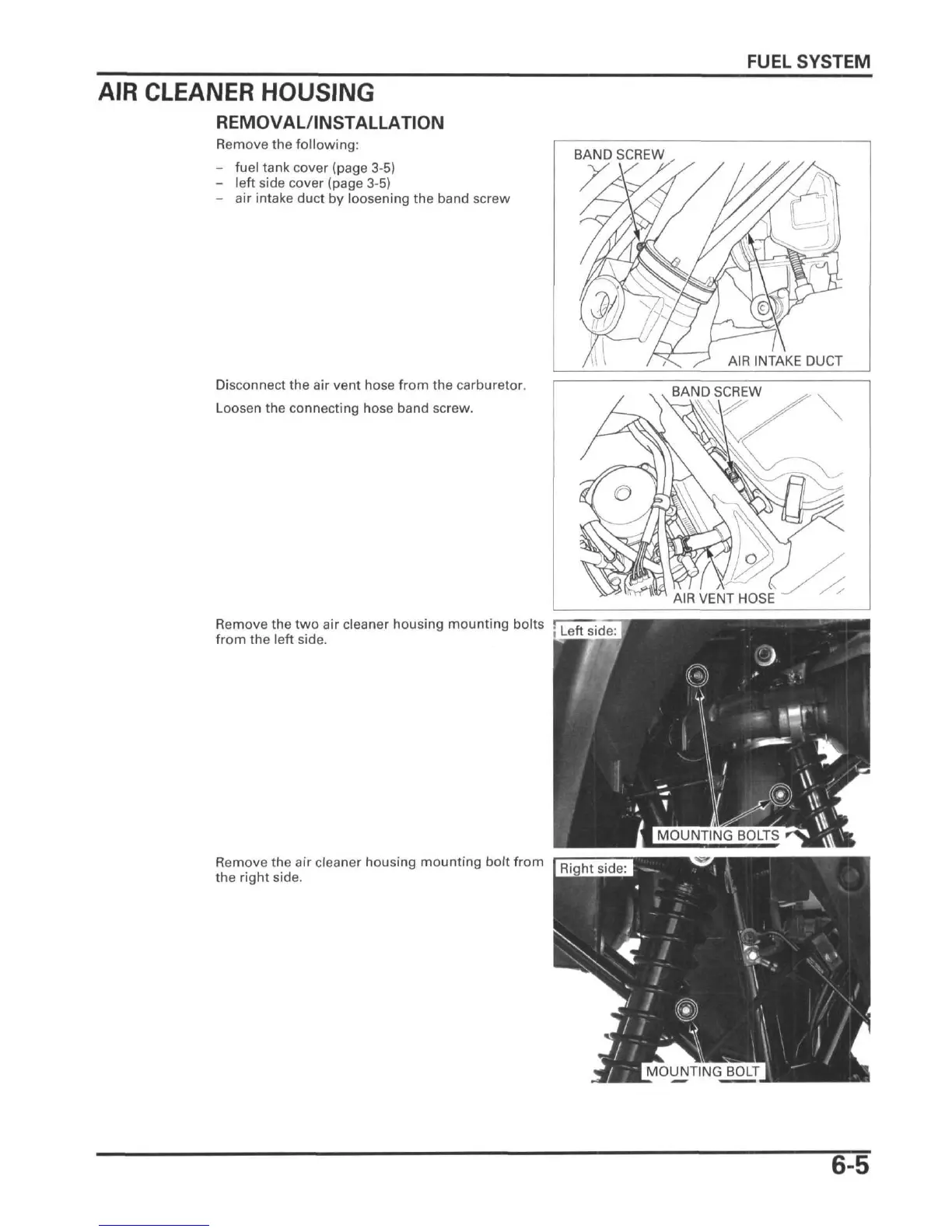

AIR CLEANER HOUSING
REMOVAL/INSTALLATION
Remove the following:
- fuel tank cover (page 3-5)
- left side cover (page 3-5)
- air intake duct by loosening the band screw
Disconnect the air vent hose from the carburetor.
Loosen the connecting hose band screw.
BAND SCREW
Remove the two air cleaner housing mounting bolts !, ~ • _j~7
from the left side. '
Remove the air cleaner housing mounting bolt from I Rj
a
ht side
the right side.
6-5
