REAR DRIVING MECHANISM

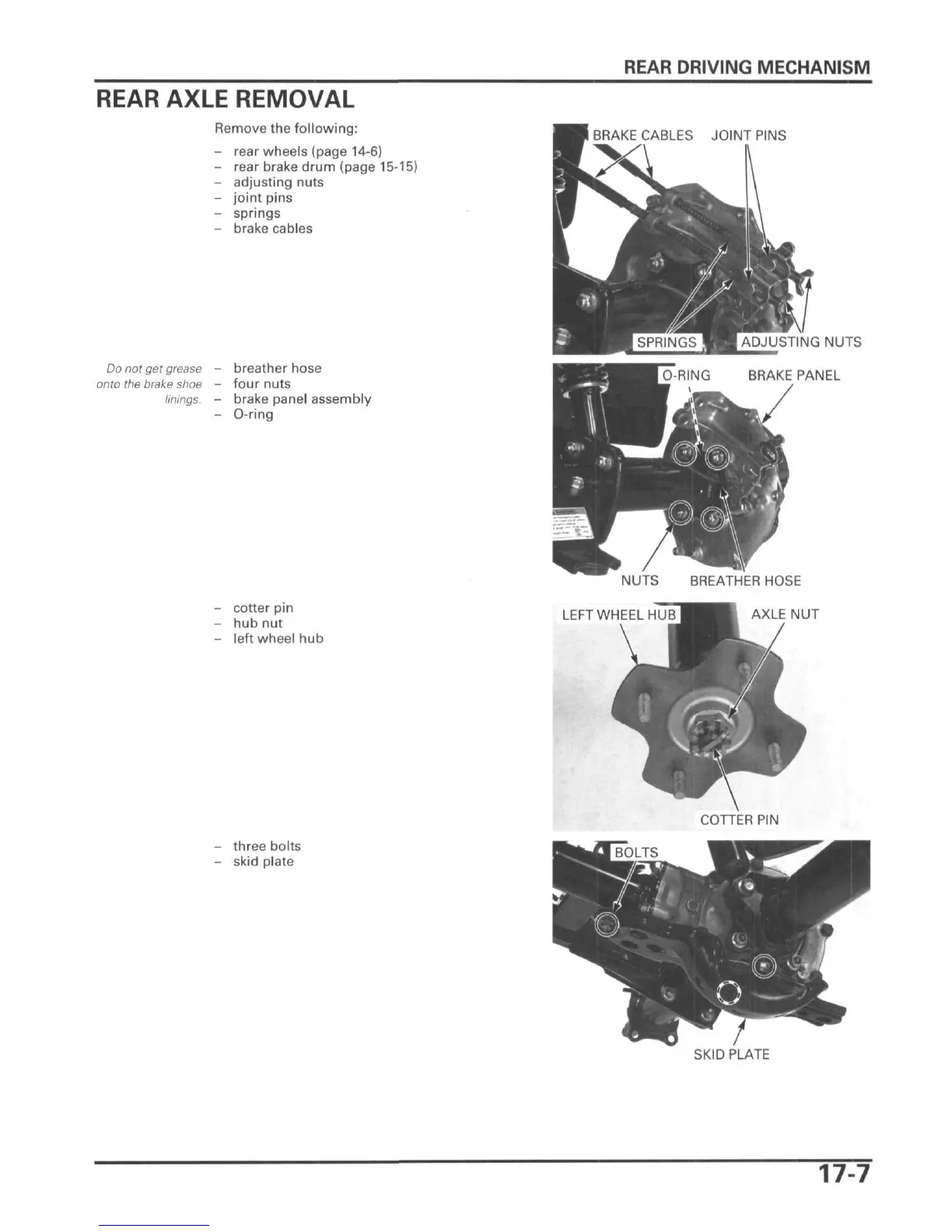

REAR AXLE REMOVAL
Remove the following:
- rear wheels (page 14-6)
- rear brake drum (page 15-15)
- adjusting nuts
- joint pins
- springs
- brake cables
BRAKE CABLES JOINT PINS
Do not get grease
onto the brake shoe
linings.
breather hose
four nuts
brake panel assembly
O-ring
I SPRINGSJ^ADJUSTING NUTS
7-RING BRAKE PANEL
- cotter pin
- hub nut
- left wheel hub
NUTS BREATHER HOSE
LEFT WHEEL HUB ^^H AXLE NUT
COTTER PIN
- three bolts
- skid plate
SKID PLATE
17-7
