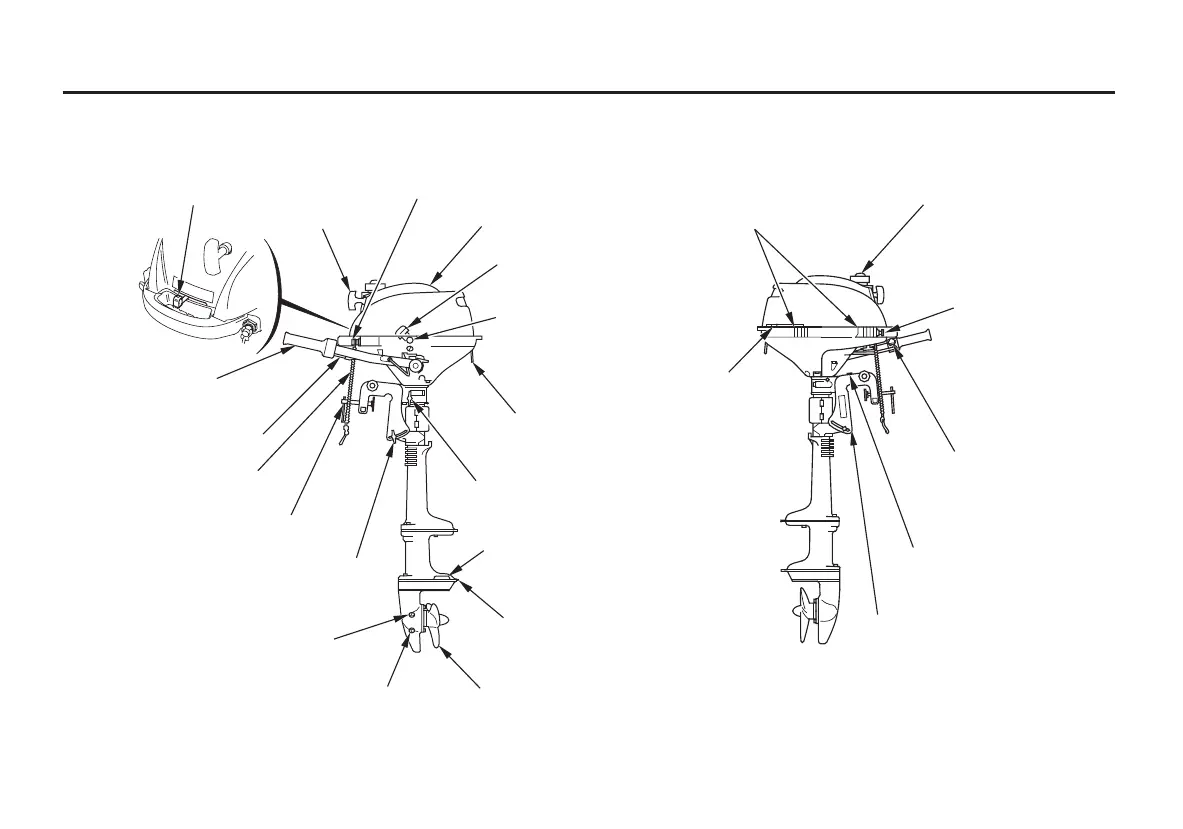

COMPONENT AND CONTROL LOCATIONS
CONTROLS AND FEATURES
[LCHA type is shown]
ENGINE COVER
OIL FILLER CAP
(inside the engine cover)
ENGINE COVER
RETAINING STRAP
ANODE METAL
ANTIVENTILATION
PLATE
PROPELLER
FUEL FILLER CAP
CHOKE KNOB
STERN BRACKET
CLAMP SCREW
STARTER GRIP
CASE PROTECTOR
OIL LEVEL INSPECTION
WINDOW
TILT LEVER
FUEL VALVE LEVER
STEERING
FRICTION BOLT
TILLER HANDLE
THROTTLE GRIP
FRICTION KNOB
(SCHA/LCHA type)
THROTTLE GRIP
(SCHA/LCHA type)
THROTTLE LEVER
(SCAB type)
GEAR OIL DRAIN/FILL SCREW
TRANSOM ANGLE ADJUSTING
BOLT AND WING NUT
GEAR OIL LEVEL SCREW
EMERGENCY STOP
SWITCH
EMERGENCY STOP
SWITCH LANYARD
