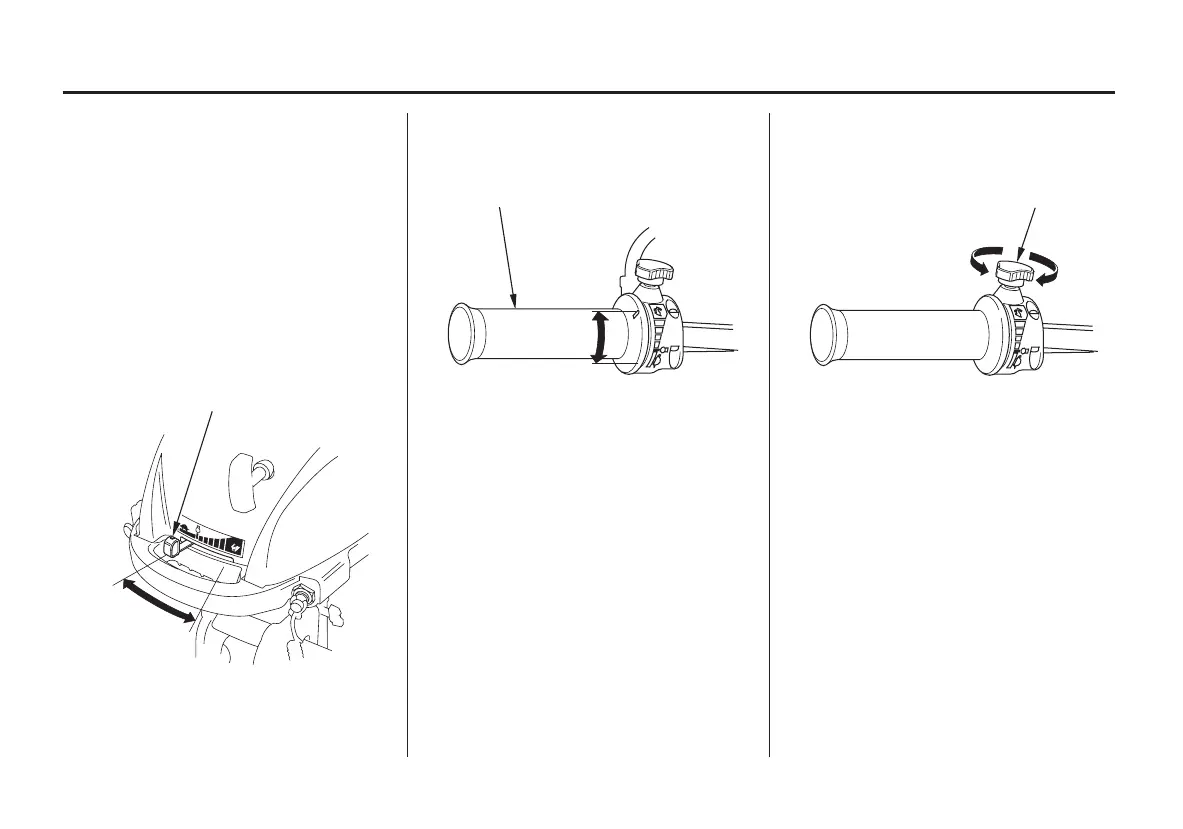

CONTROLS AND FEATURES
THROTTLE GRIP
FIX
SLOW
FAST
THROTTLE LEVER
SLOW
FAST
THROTTLE GRIP FRICTION KNOB
RELEASE
The throttle grip controls engine
speed.
An index mark on the tiller arm
shows throttle position and is helpful
for setting the throttle correctly when
starting (p. ).
The throttle friction knob adjusts
resistance to throttle grip rotation.
Turn the knob clockwise to increase
friction for holding a throttle setting
while cruising.
Turn the knob counterclockwise to
decrease friction for easy throttle grip
rotation.
The throttle lever controls engine
speed.
An index mark on the engine cover
shows throttle position and is helpful
for setting the throttle correctly when
starting (p. ).
