CONTROLS & FEATURES

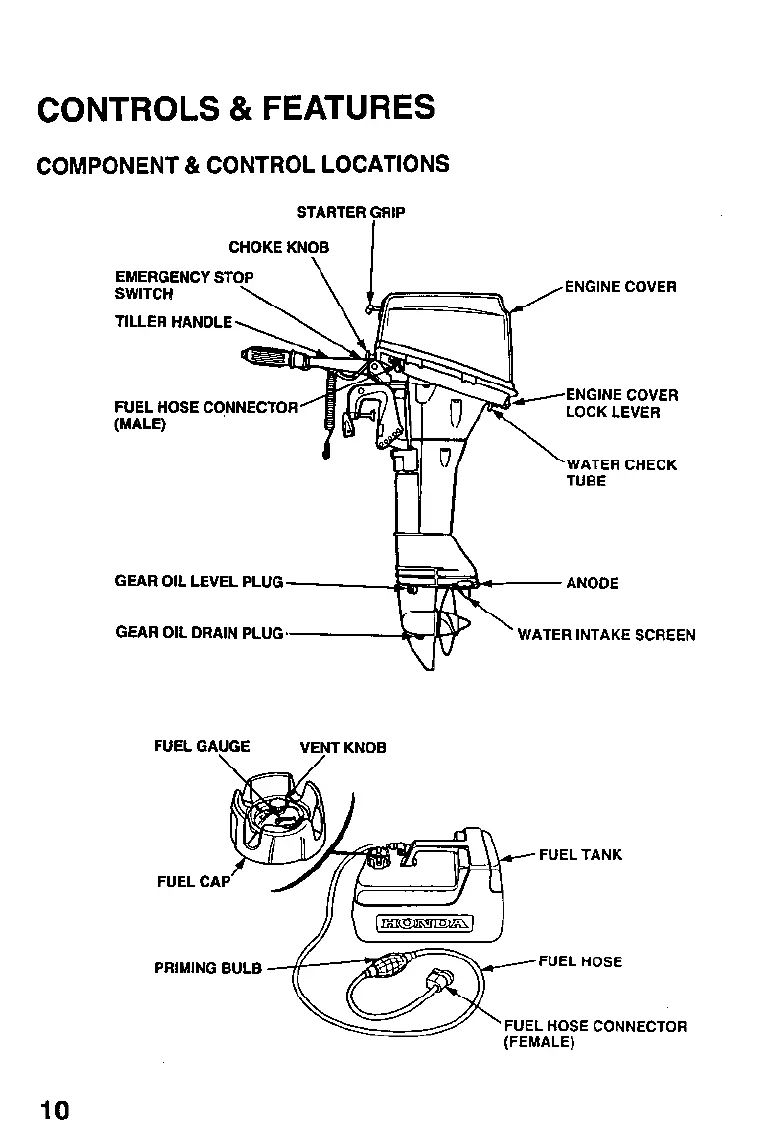

COMPONENT & CONTROL LOCATIONS
STARTER GRIP
CHOKE KNOB
\ I
EMERGENCY STOP
SWITCH
TILLER HANDLE,\\ k-
‘ENGlNE ‘OVER
ENGINE COVER
I fICK I FVFR
FUEL HOSE CqNNECTOR
(MALE)
---.---.a..
WATER CHECK
TUBE
GEAR OIL LEVEL PLUG ANODE
GEAR OIL DRAIN PLUG.
WATER INTAKE SCREEN
FUEL GAUGE
VENT KNOB
FUEL TANK
PRIMING BULB
FUEL HOSE CONNECTOR
