INSTALLATION

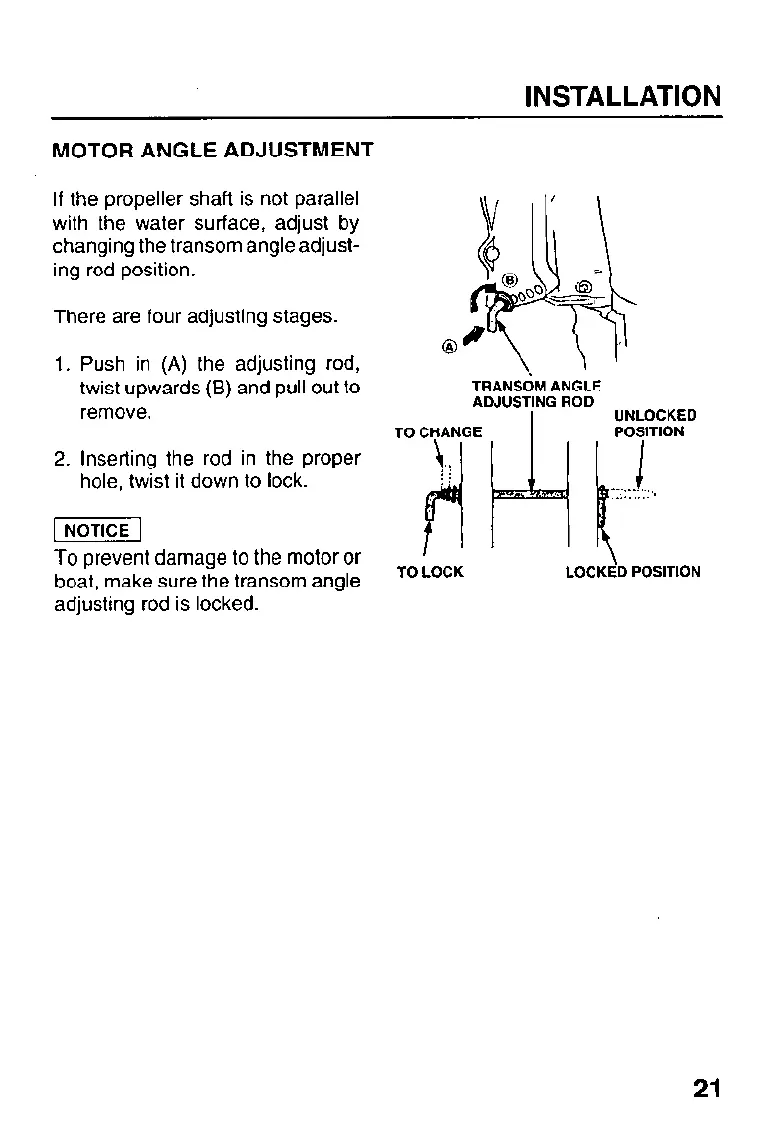

MOTOR ANGLE ADJUSTMENT
If the propeller shaft is not parallel
with the water surface, adjust by
changing the transom angle adjust-
ing rod position.
There are four adjusting stages.
1.
2.
Push in (A) the adjusting rod,
twist upwards (B) and pull out to
remove.
Inserting the rod in the proper
hole, twist it down to lock.
To prevent damage to the motor or
boat, make sure the transom angle
adjusting rod is locked.
TRANSOM ANGLE
ADJUSTING ROD
UNLOCKED
TO CHANGE
POSITION
TO LOCK LOCKE‘D POSITION
21
