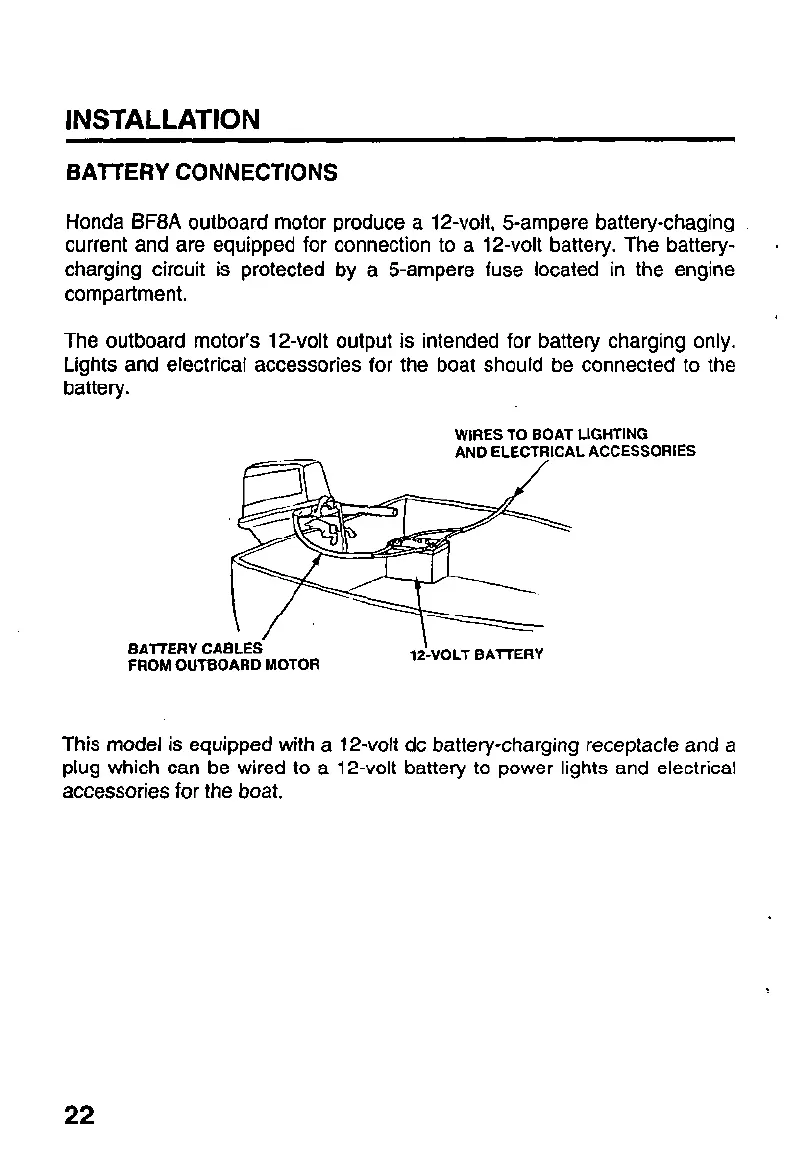

BA-ITERY CONNECTIONS
Honda BFBA outboard motor produce a 12-volt, Sampere battery-chaging
current and are equipped for connection to a 12-volt battery. The battery-
charging circuit is protected by a 5-ampere fuse located in the engine
compartment.
The outboard motor’s 12-volt output is intended for battery charging only.
Lights and electrical accessories for the boat should be connected to the
battery.
WIRES TO BOAT LIGHTING
AND
ELECTRICAL ACCESSORIES
BA?TERY CABLE
FROM OUTBOARD MOTOR
This model is equipped with a 12-volt dc battery-charging receptacle and a
plug which can be wired to a 12-volt battery to power lights and electrical
accessories for the boat.
22
