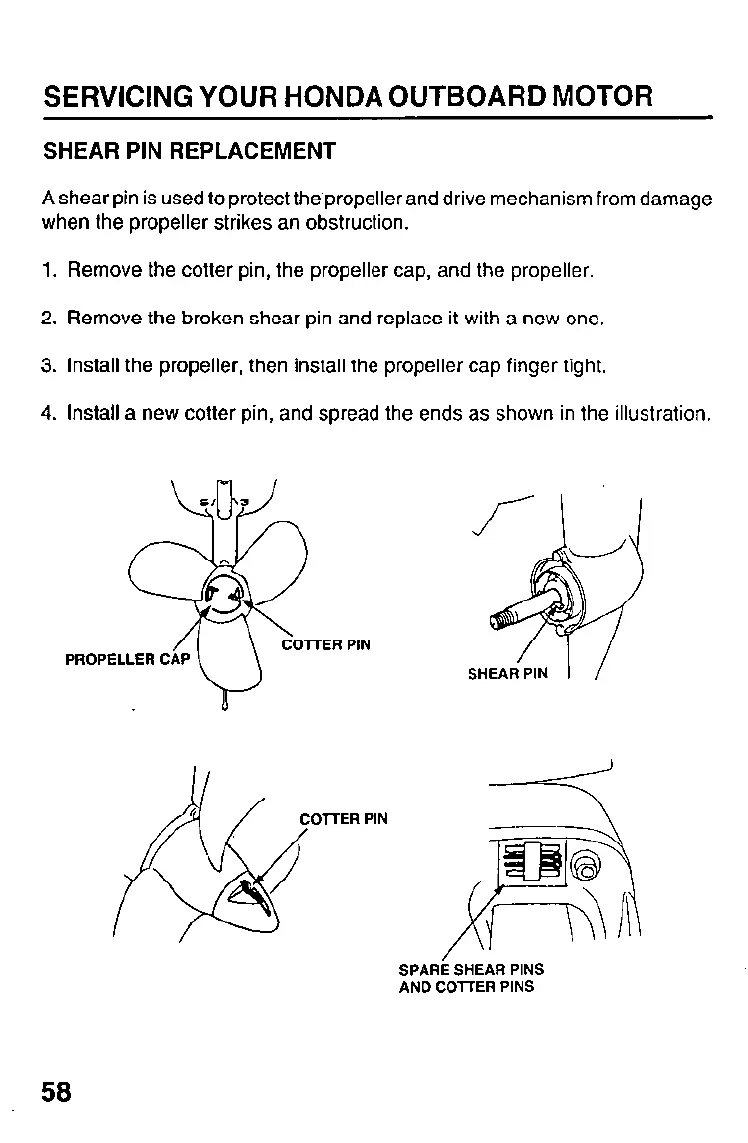

SERVICING YOUR HONDA OUTBOARD MOTOR
SHEAR PIN REPLACEMENT
Ashearpin is used to protect the propellerand drive mechanism from damage
when the propeller strikes an obstruction.
1. Remove the cotter pin, the propeller cap, and the propeller.
2. Remove the broken shear pin and replace it with a new one.
3. Install the propeller, then install the propeller cap finger tight.
4. Install a new cotter pin, and spread the ends as shown in the illustration.
PIN
SPARE SHEAR PINS
AND COTI-ER PINS
58
