44
INSTALLATION
PUSH
BENT
END UP

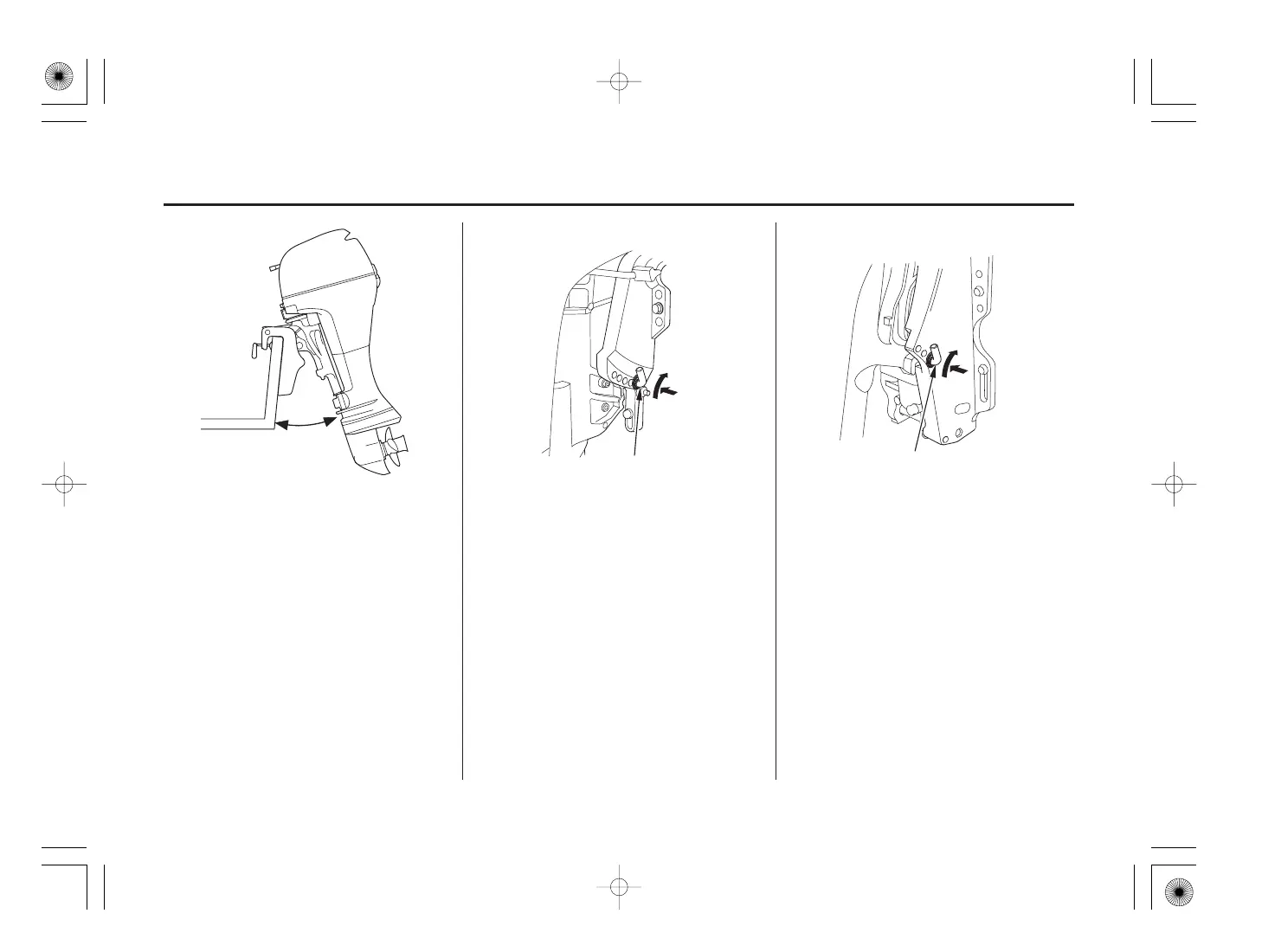

TRANSOM ANGLE
ADJUSTING ROD
TRANSOM ANGLE
ADJUSTING ROD
BBEENNTT
EENNDD UUPP
PPUUSSHH
(G type/T type)(manual tilt XH type/R type)
There are four adjusting stages (G
and T type).
Push in the adjusting rod, twist
upwards to the unlocked position and
pull out to remove.
Tilt the outboard motor to the
designated tilt angle.
There are five adjusting stages (XH
and R type).
