INSTALLATION
To prevent damage to the
outboard motor or boat, make sure
the adjusting rod is locked.
(XH type/R type/G type/T type) (manual tilt SH type/LH type)

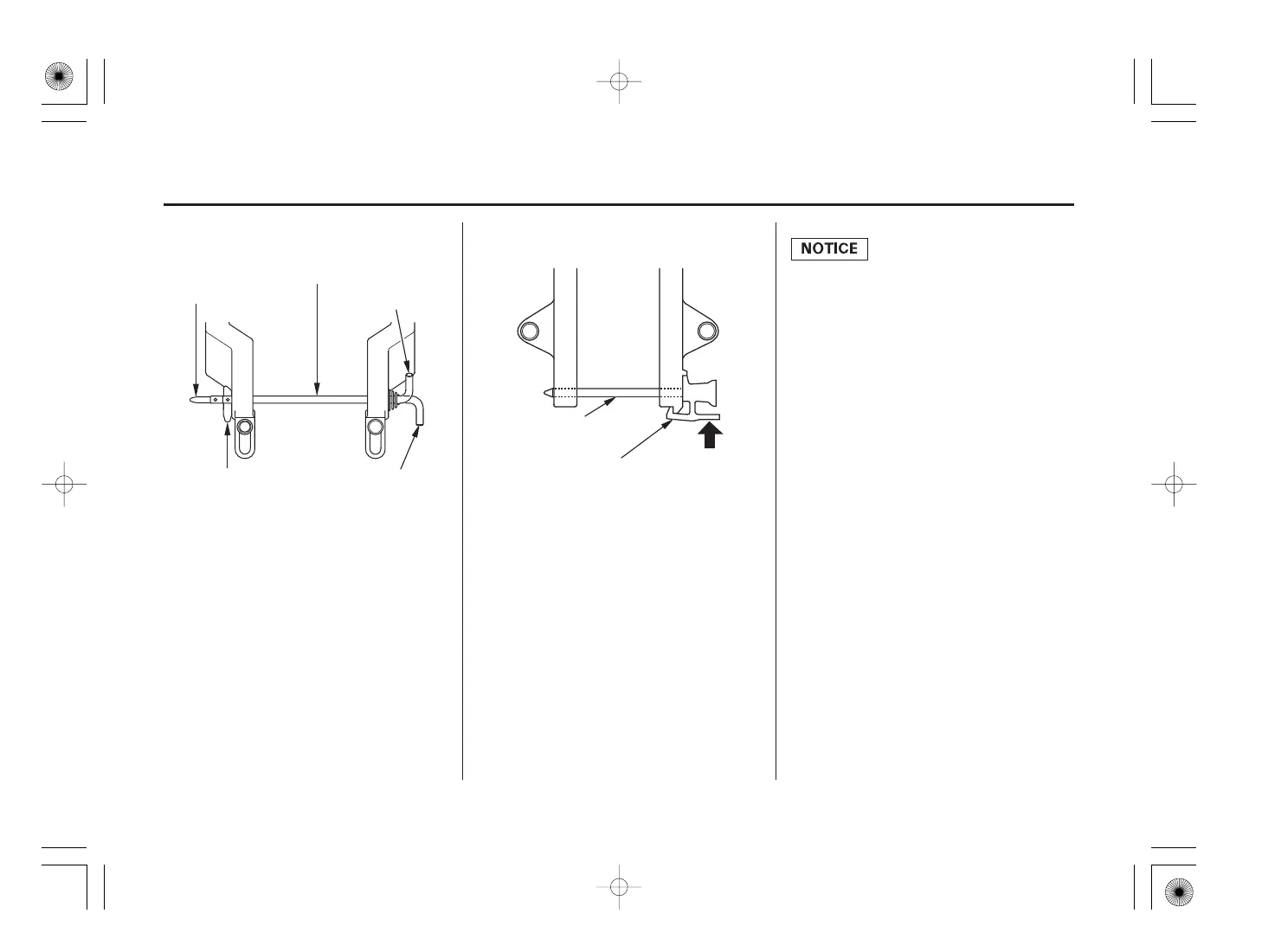

TRANSOM ANGLE
ADJUSTING ROD
PINCH
LOCKED POSITION
TRANSOM ANGLE
ADJUSTING ROD
LOCKED POSITION
TO LOCK
TO CHANGE
UNLOCKED
POSITION
Pinch the adjusting rod end and pull
out to remove.
Inserting the adjusting rod in the
proper hole, and lock it. After
locking, pull the adjusting rod and be
sure it is not withdrawn.
Inserting the adjusting rod in the
proper hole, twist it down to lock.
After locking, pull the adjusting rod
and be sure it is not withdrawn.
