Maintenance
Drive Chain
a

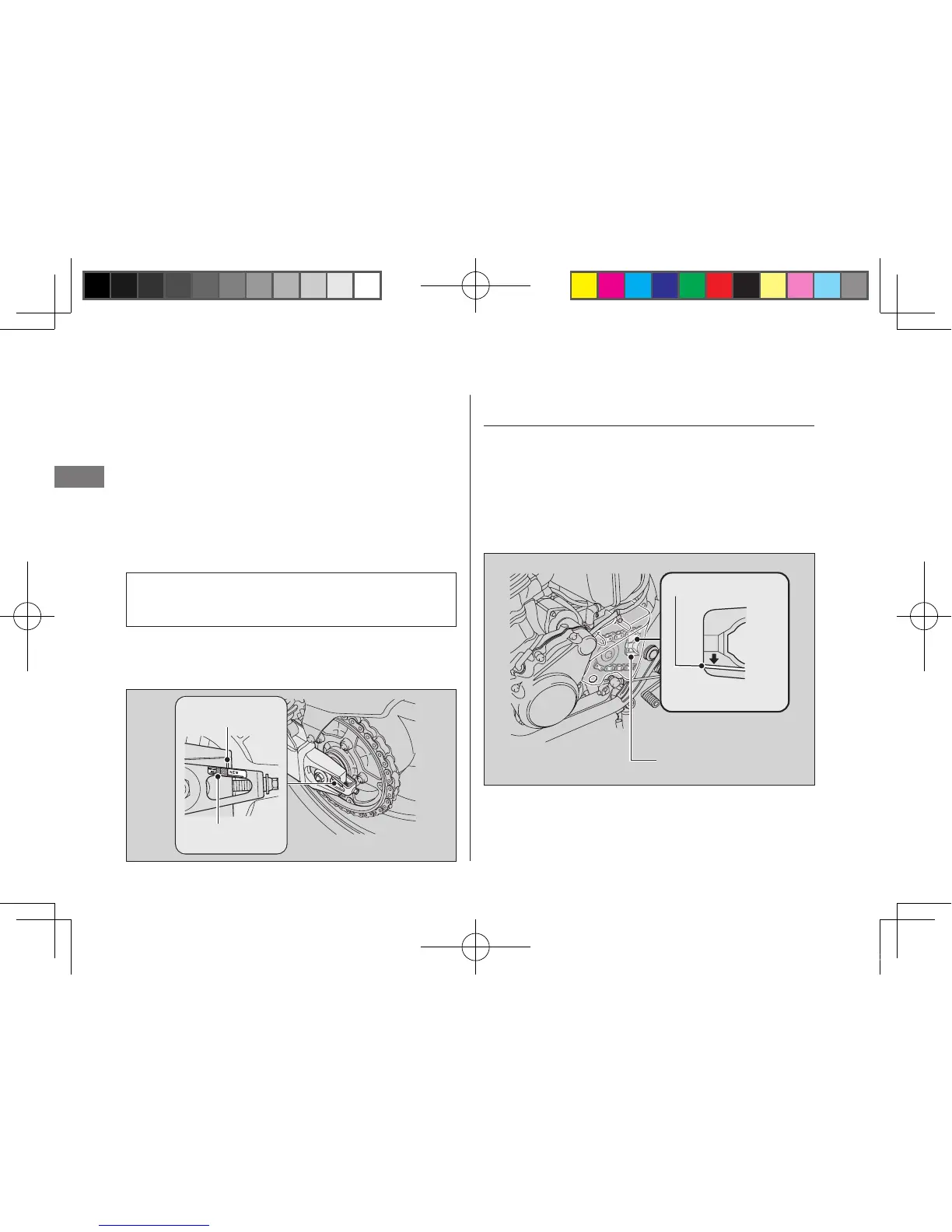

Checking the Drive Chain Slider
❙
Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the index mark on the
swingarm enters the red zone on the label
after the chain has been adjusted to the
proper slack, the chain is excessively worn
and must be replaced.
Chain:
RK 525SMOZ5
If necessary have the drive chain replaced by
your dealer.
Red zone
Index mark
Checking the Drive Chain Slider
Check the condition of the drive chain slider.
The drive chain slider need to be replaced if
it is worn to the wear limit line.
If necessary have the drive chain slider
replaced by your dealer.
Drive chain slider
Wear limit line
