Installation
1. Attach the side collars to the wheel.
2. On the left side, place the wheel
between the fork legs and insert the
front axle shaft, through the left fork leg
and wheel hub.

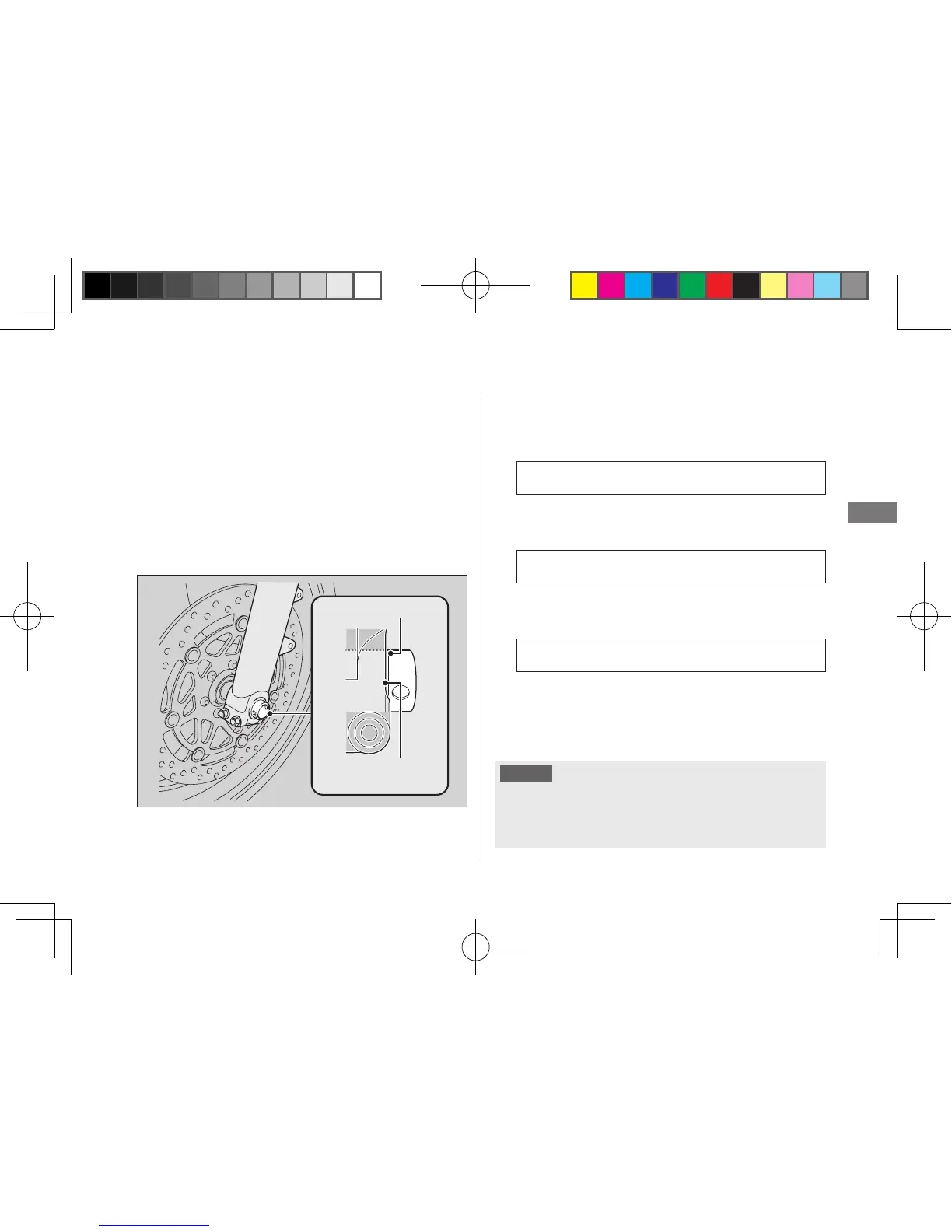

3. Align the index line of the front axle shaft
with the surface of the fork leg.
Index line
Surface of
the fork leg
4. Tighten the left axle pinch bolts to hold
the axle.
5. Tighten the front axle bolt.
Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft).
6. Loosen the left axle pinch bolts.
7. Tighten the right axle pinch bolts.
Torque: 23 N·m (2.3 kgf·m, 17 lbf·ft).
8. Install the right and left brake calipers
and tighten the fixing bolts.
Torque: 30 N·m (3.1 kgf·m, 22 lbf·ft).
a
Take care to prevent the brake caliper
from scratching the wheel during
installation.
NOTICE
When installing the brake calipers into position on the
fork legs, carefully fit the brake disc between the pads to
avoid scratching them.
