Honda PCX - Instruments and Indicators

Theindicatorsarecontainedinthe
instrument panel. Their functions are
described in the tables on the following
pages.

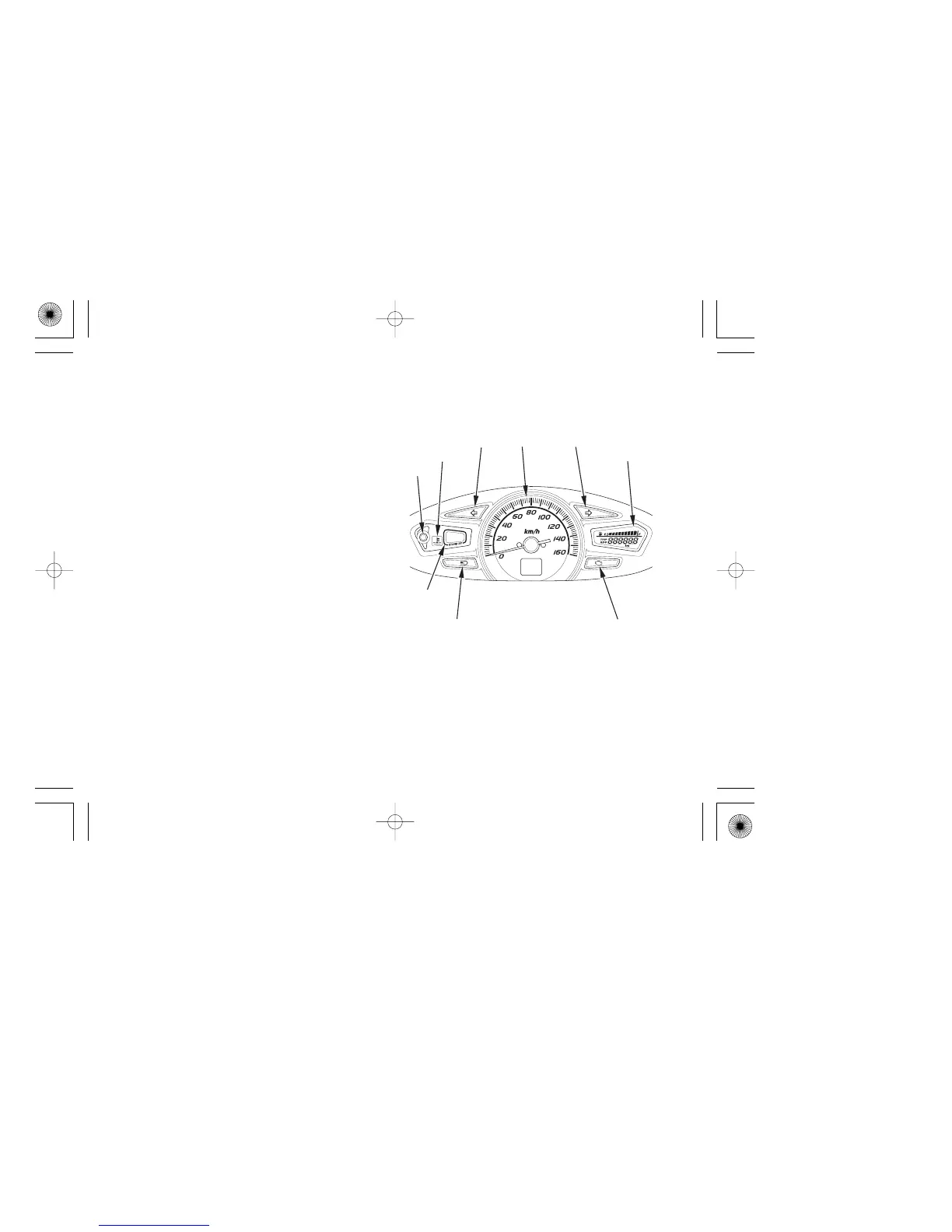

(1) Mode switch
(2) High coolant temperature indicator
(3) Left turn signal indicator
(4) Speedometer
(5) Right turn signal indicator
(6) Odometer/Tripmeter/Fuel gauge
display
(7) PGM-FI malfunction indicator lamp
(MIL)
(8) High beam indicator
(9) STAND BY indicator
(6)
(5)
(7)
(1)
(2)
(3) (4)
(8)
(9)
