LOCK
(Steering lock)
OFF
SEAT
FUEL
ON
Key can be
removed
Key can be
removed
Key cannot be
removed
Key cannot be
removed
The ignition switch ( ) is on the right
side below the steering stem.
Steering is locked. Engine and lights cannot be
operated.
Engine and lights cannot be operated.
Fuel lid and seat opener switch can be operated.
Engine and lights cannot be operated.
Engine can be operated.
The brakelight, meter light, turn signals and
horn can be operated.
The headlight operates only when the engine is
running.
(1)
1
(1) Ignition switch

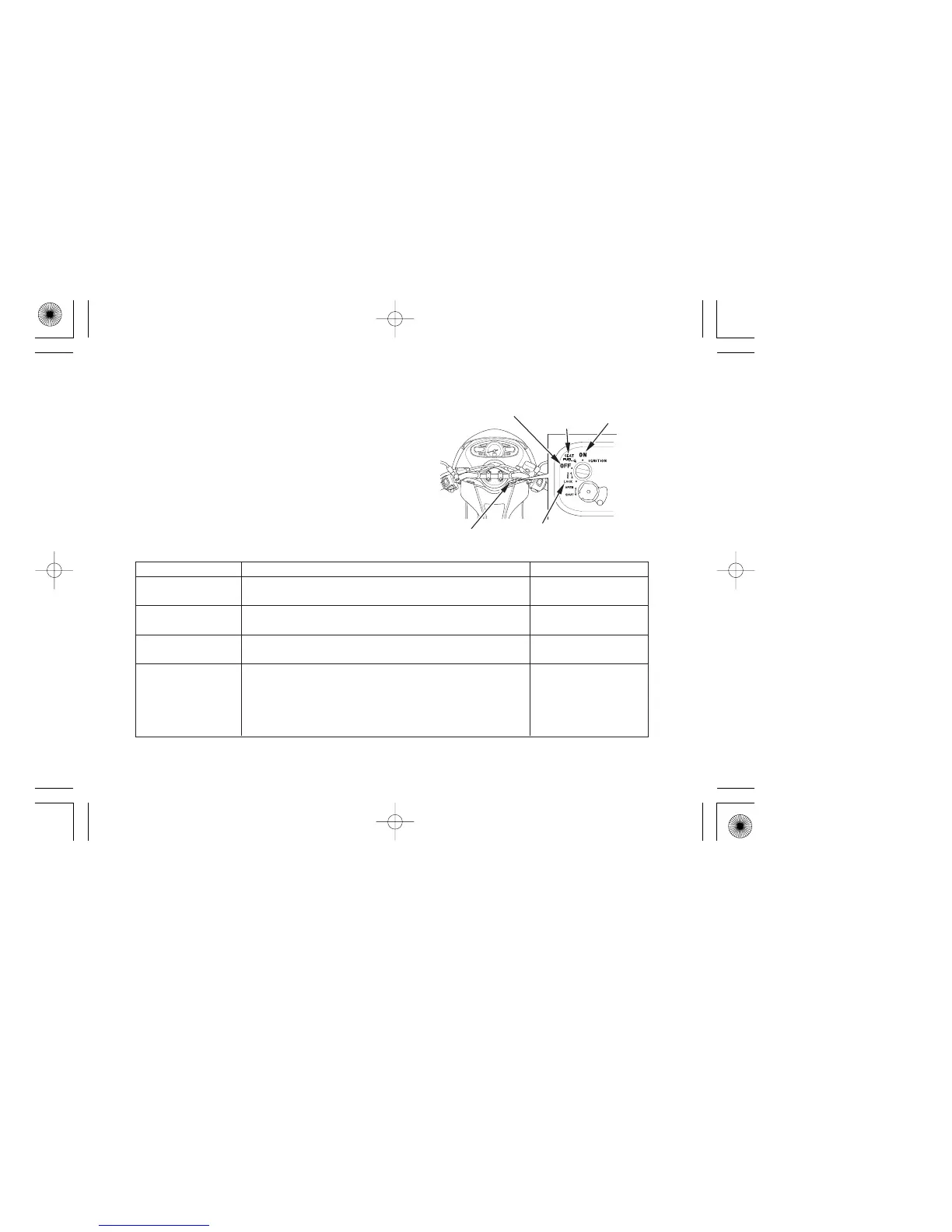

ESSENTIAL INDIVIDUAL COMPONENTS
IGNITION SWITCH
Key Position Key RemovalFunction
45
OFF
LOCK
ON
SEAT
FUEL
