Honda SH300 2008 User Manual

ANTI-LOCK BRAKE SYSTEM (ABS; SH300A/AII/AIII)
18-23

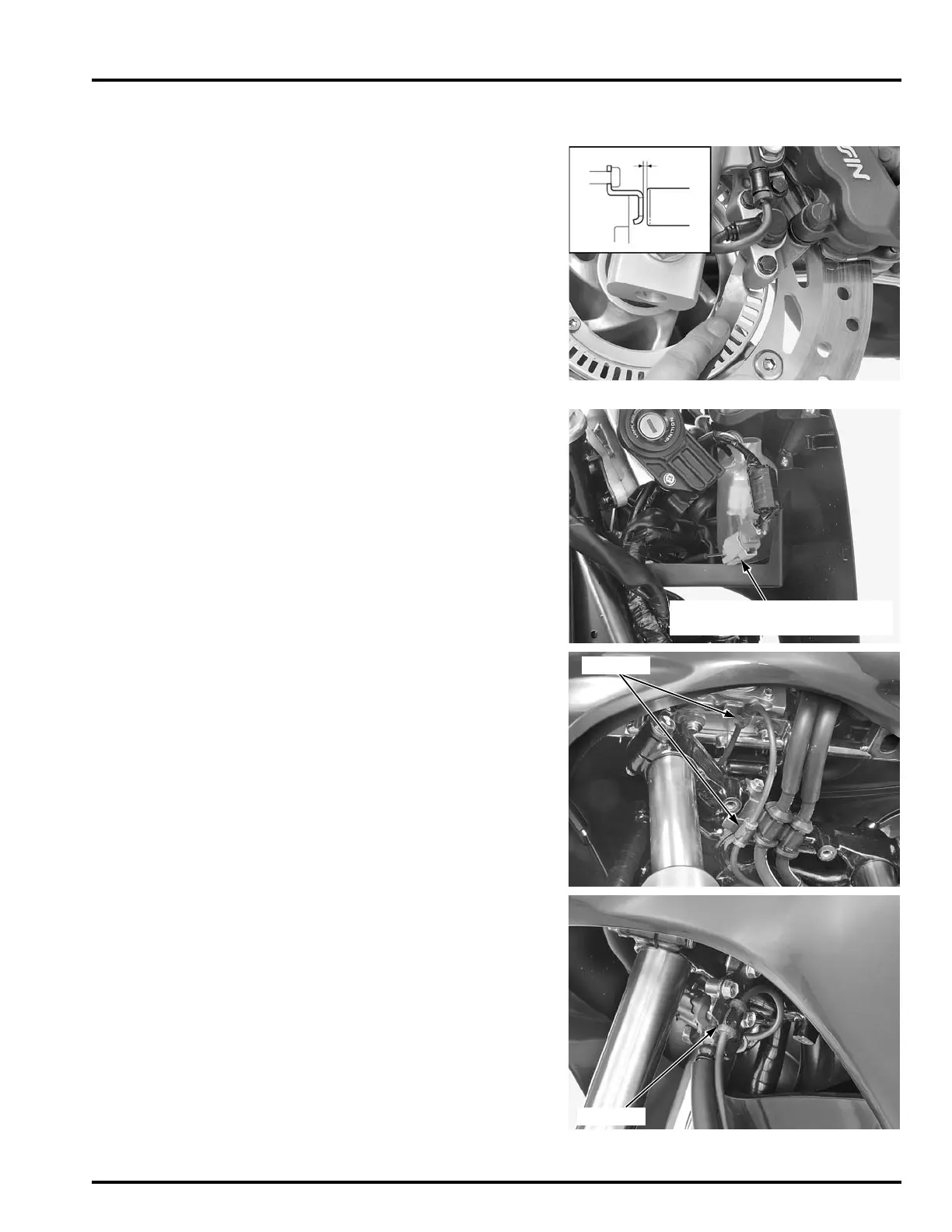

FRONT WHEEL SPEED SENSOR
INSPECTION
Support the scooter securely using a hoist or equiv-
alent and raise the wheel off the ground.
Measure the clearance (air gap) between the sensor
and pulser ring at several points by turning the
wheel slowly.
It must be within specification.
The sensor air gap cannot be adjusted.
If it is not within specification, check each installa-
tion part for deformation, looseness and damage.
REMOVAL/INSTALLATION
Remove the front inner cover (page 3-10).
Disconnect the front wheel speed sensor 2P
(Orange) connector.
Release the wheel speed sensor wire from the
clamps.
Release the wheel speed sensor wire from the
clamp.
STANDARD: 0.2 – 1.2 mm (0.01 – 0.05 in)
INNER COVER GUARD
BOLTS
FRONT WHEEL SPEED SENSOR
2P (ORANGE) CONNECTOR
CLAMPS
CLAMP
