ANTI-LOCK BRAKE SYSTEM (ABS; SH300A/AII/AIII)
18-25

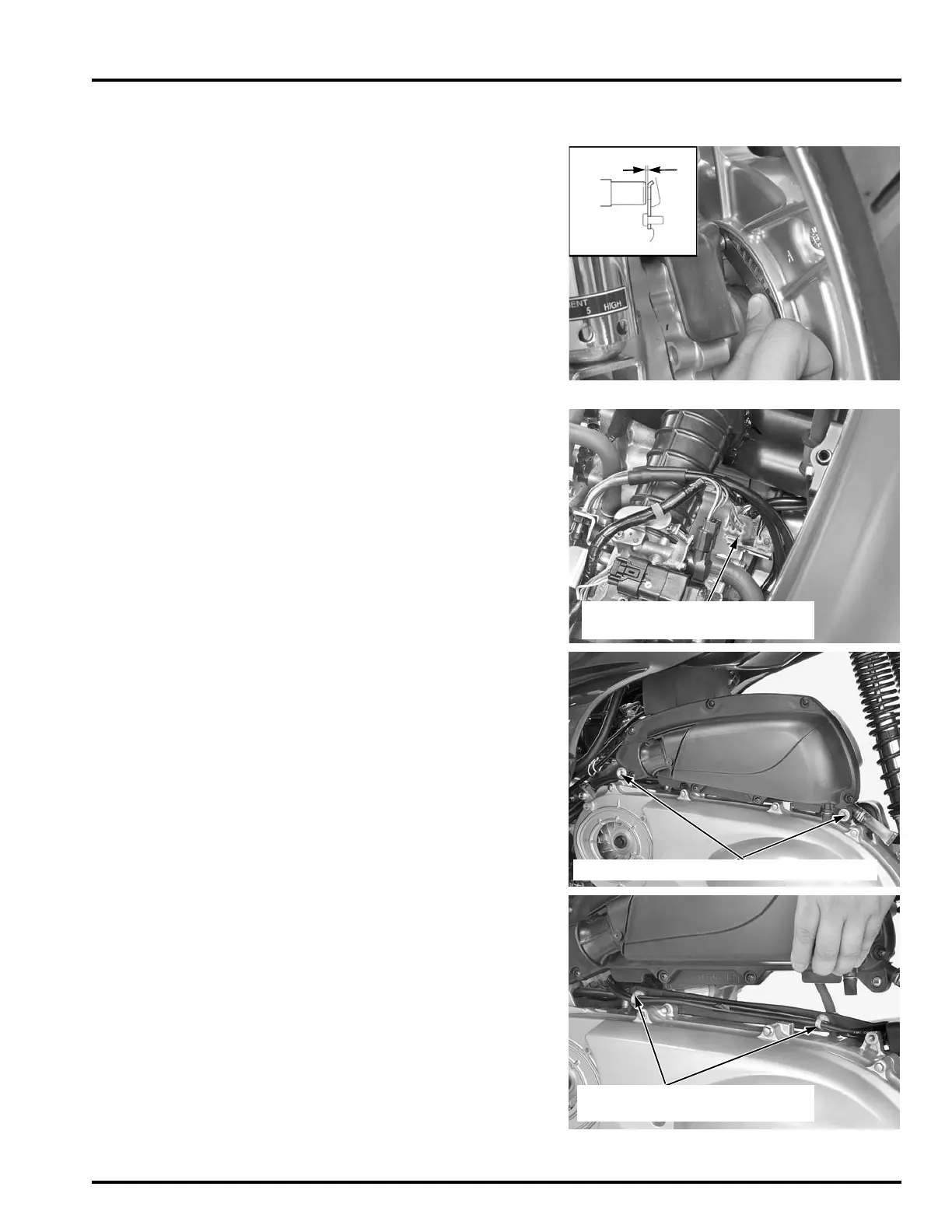

REAR WHEEL SPEED SENSOR
INSPECTION
Place the scooter on its centerstand.
Measure the clearance (air gap) between the sensor
and pulser ring at several points by turning the
wheel slowly.
It must be within specification.
The sensor air gap cannot be adjusted.
If it is not within specification, check each installed
part for deformation, looseness and damage.
REMOVAL/INSTALLATION
Remove the following:
– Rear wheel (page 16-5)
– Luggage box (page 3-5)
Disconnect the rear wheel speed sensor/VS sensor
6P connector.
Remove the two mounting bolts from the air cleaner
housing.
Slightly lift the air cleaner housing and release the
rear wheel speed sensor/VS sensor wire clamp
bosses.
STANDARD: 0.2 – 1.2 mm (0.01 – 0.05 in)
REAR WHEEL SPEED SENSOR/VS
SENSOR 6P CONNECTOR
AIR CLEANER HOUSING MOUNTING BOLTS
REAR WHEEL SPEED SENSOR/VEHICLE SPEED
SENSOR/DRIVEN PULLEY SENSOR WIRES
REAR WHEEL SPEED SENSOR/VS
SENSOR WIRE CLAMP BOSSES
