FRAME/BODY PANELS/EXHAUST SYSTEM
3-2
FRAME/BODY PANEL S/EXHAUST SYSTEM
BODY PANEL LOCATIONS

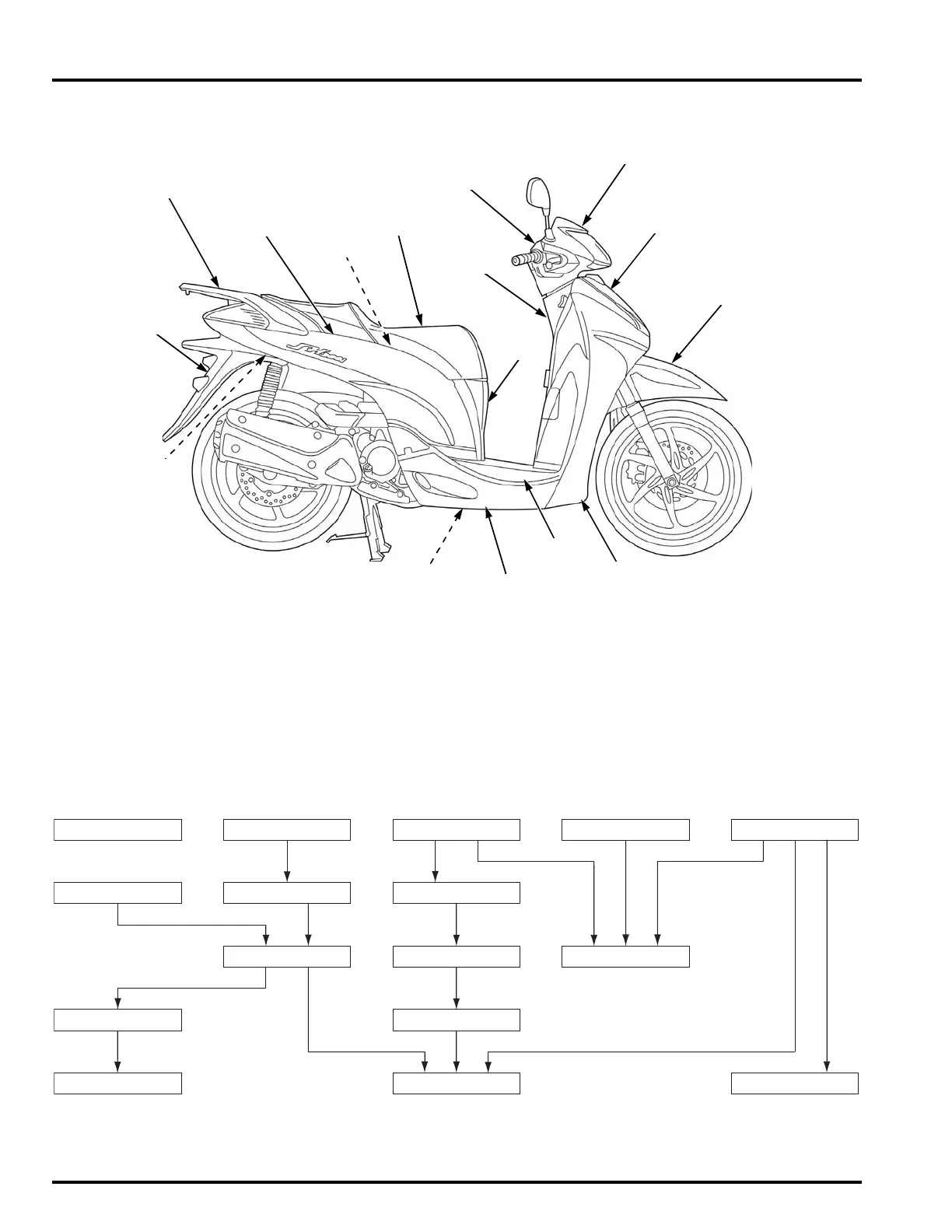

BODY PANEL REMOVAL CHART
• This chart shows removal order of frame covers by means of arrow.
(1)
(5)
(7)
(13)
(8)
(11)
(16)
(12)
(14)
(15)
(2)
(3)
(6)
(10)
(9)
(4)
(1) Maintenance Lid (page 3-4) (7) Rear Fender B (page 3-7) (13) Front Lower Cover (page 3-12)
(2) Seat (page 3-4) (8) Front Fender (page 3-8) (14) Floor Panel (page 3-13)
(3) Luggage Box (page 3-5) (9) Floor Side Cover (page 3-8)
(15) Front Handlebar Cover (page 3-14)
(4) Grab Rail (page 3-5) (10) Under cover (page 3-9)
(16) Rear Handlebar Cover (page 3-14)
(5) Body Cover (page 3-6) (11) Front Upper Cover (page 3-9)
(6) Rear Fender A (page 3-7) (12) Front Inner Cover (page 3-10)
(2) Seat
(1) Maintenance Lid
(3) Luggage Box
(8) Front Fender
(5) Body Cover
(6) Rear Fender A
(7) Rear Fender B
(11) Front Upper Cover
(14) Floor Panel
(12) Front Lower Cover
(13) Front Inner Cover
(15) Front Handlebar Cover
(16) Rear Handlebar Cover
(10) Under Cover
(9) Floor Side Cover
(4) Grab Rail
