LIGHTS/METERS/SWITCHES
22-27

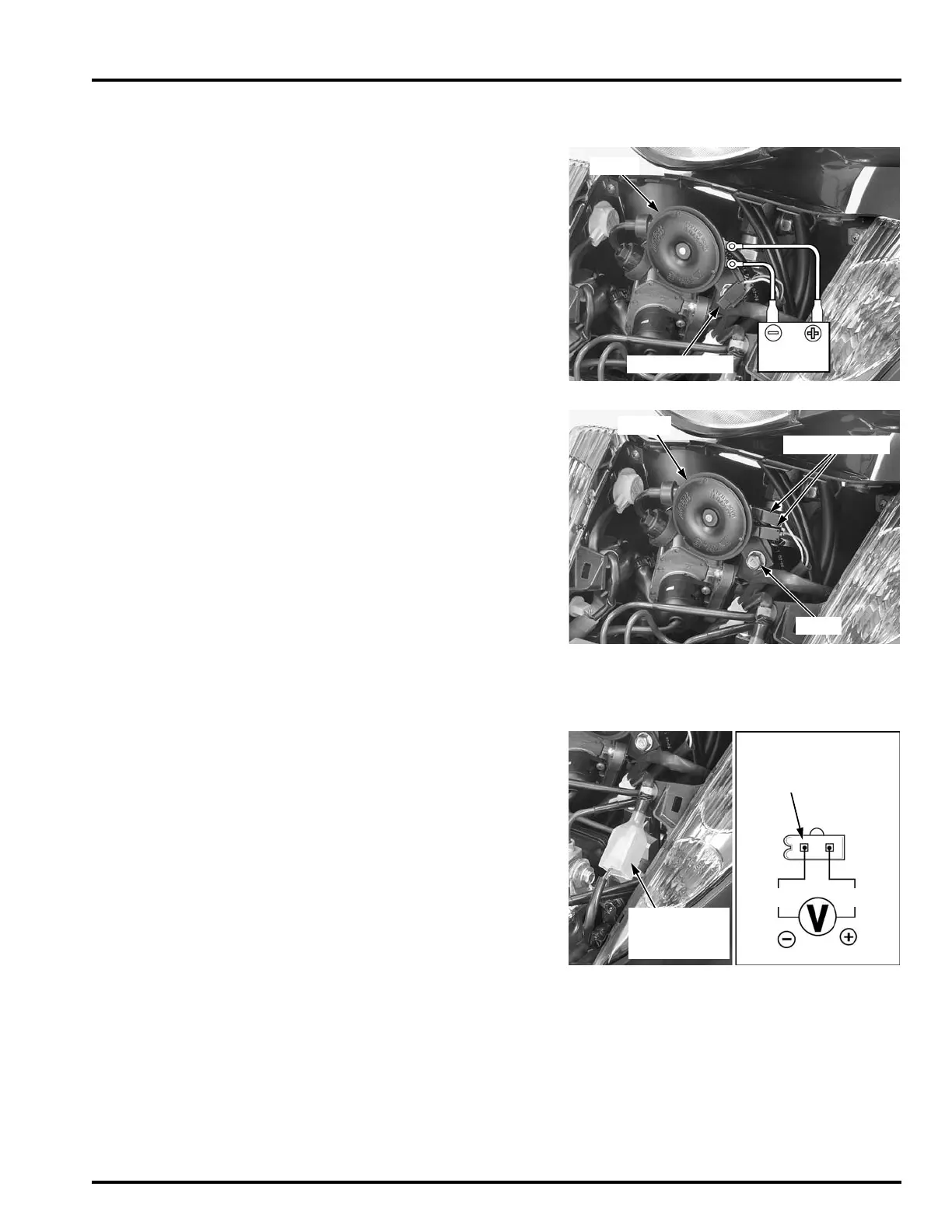

HORN
INSPECTION
Remove the front upper cover (page 3-9).
Disconnect the horn connectors.
Connect a 12V battery to the horn terminals.
The horn is normal if it sounds when the 12V battery
is connected across the horn terminals.
REMOVAL/INSTALLATION
Remove the front upper cover (page 3-9).
Disconnect the horn connectors.
Remove the bolt and horn.
Installation is in the reverse order of removal.
ACCESSORY SOCKET
INSPECTION
ACCESSORY SOCKET DOES NOT OPERATE
Remove the front upper cover (page 3-9).
Disconnect the accessory socket 2P connector.
Turn the ignition switch "ON" and measure the volt-
age at the accessory socket 2P connector of the wire
harness side.
If the battery voltage appears, the accessory socket
circuit is normal.
Faulty accessory socket.
If the battery voltage does not appear, inspect the
following:
– Open circuit in Black/Yellow wire between the
fuse box and accessory socket
– Open circuit in Green wire
CONNECTORS
HORN
CONNECTORS
BOLT
HORN
CONNECTION: Black/Yellow (+) – Green (–)
ACCESSORY
SOCKET 2P
CONNECTOR
2P CONNECTOR
(Wire side of male
terminals)
G Bl/Y

Honda SH300 2008 Specifications

General

Displacement	279 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Ignition	Digital transistorized with electronic advance
Front Suspension	Telescopic fork
Front Tire	110/70-16
Rear Tire	130/70-16
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5Nm / 6, 000rpm
Transmission	V-Matic
Rear Suspension	Dual shocks
Front Brake	Single 256 mm disc
Rear Brake	240mm hydraulic disc
