Honda SH300 2008 User Manual

LIGHTS/METERS/SWITCHES
22-4

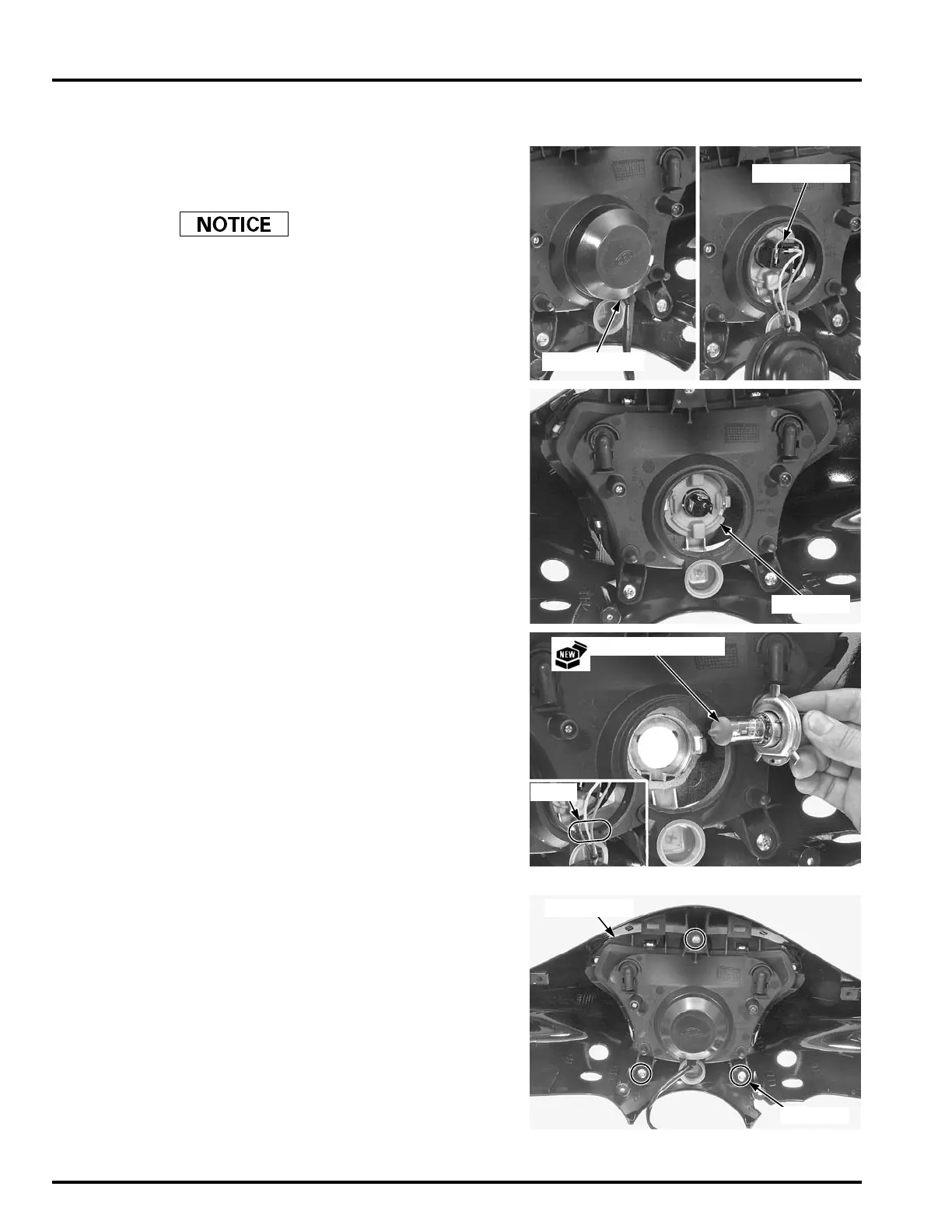

HEADLIGHT
BULB REPLACEMENT
Remove the front handlebar cover (page 3-14).
Release the dust cover and disconnect the bulb con-
nector.
Avoid touching a new halogen bulb. Finger prints
can create hot spots that cause a bulb to break.
Remove the bulb retainer by turning it counterclock-
wise.
Remove the headlight bulb and replace it with a
new one.
Installation is in the reverse order of removal.
• Align the bulb tab with the grooves properly.
• When installing the dust cover, align the wires
with the cutout in the headlight housing and set
the dust cover tightly against the housing.
REMOVAL/INSTALLATION
Remove the front handlebar cover (page 3-14).
Remove the three screws and the headlight assem-
bly while spreading the handlebar cover upward.
Be careful not to
scratch the
headlight lens
during servicing.
DUST COVER
CONNECTOR
RETAINER
HEAD LIGHT BULB
Align
HEADLIGHT
SCREWS

Honda SH300 2008 Specifications

General

Displacement	279 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Ignition	Digital transistorized with electronic advance
Front Suspension	Telescopic fork
Front Tire	110/70-16
Rear Tire	130/70-16
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5Nm / 6, 000rpm
Transmission	V-Matic
Rear Suspension	Dual shocks
Front Brake	Single 256 mm disc
Rear Brake	240mm hydraulic disc
