FRAME/BODY PANELS/EXHAUST SYSTEM
3-8

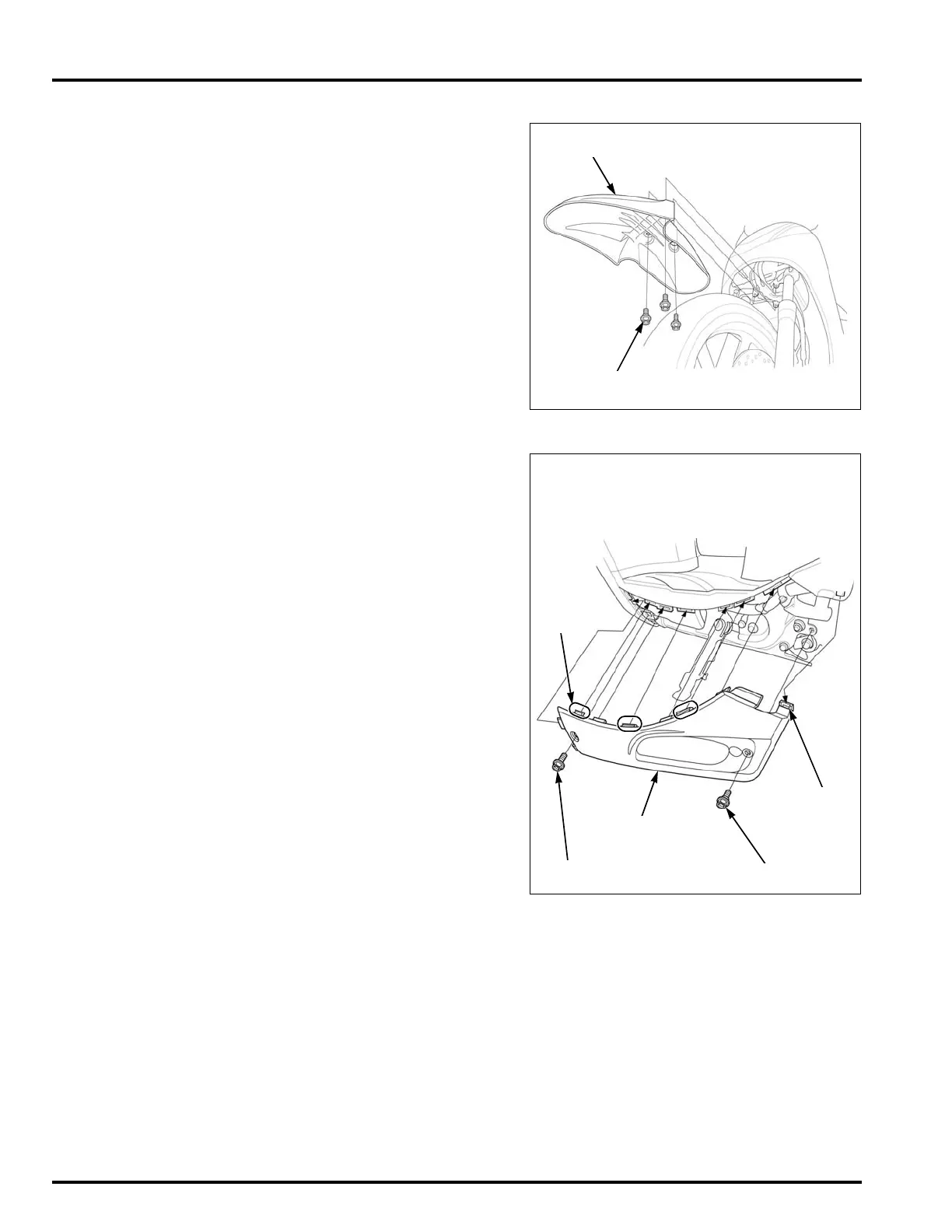

FRONT FENDER
Remove the following:
– three special bolts
– front fender
Installation is in the reverse order of removal.
FLOOR SIDE COVER
Remove the bolt and special bolt.
Release the rear end slot of the floor side cover from
the tab on the floor panel.
Release the three hooks and three tabs on the floor
side cover from the grooves on the floor panel.
Remove the floor side cover by releasing the two
tabs on the floor side cover from the grooves on the
front lower cover.
Installation is in the reverse order of removal.
TORQUE: Front fender mounting bolt
12 N·m (1.2 kgf·m, 9 lbf·ft)
FRONT FENDER
BOLTS
FLOOR SIDE
COVER
BOLT
left side shown:
SPECIAL BOLT
SLOT
HOOKS

Honda SH300 2008 Specifications

General

Displacement	279 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Ignition	Digital transistorized with electronic advance
Front Suspension	Telescopic fork
Front Tire	110/70-16
Rear Tire	130/70-16
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5Nm / 6, 000rpm
Transmission	V-Matic
Rear Suspension	Dual shocks
Front Brake	Single 256 mm disc
Rear Brake	240mm hydraulic disc
