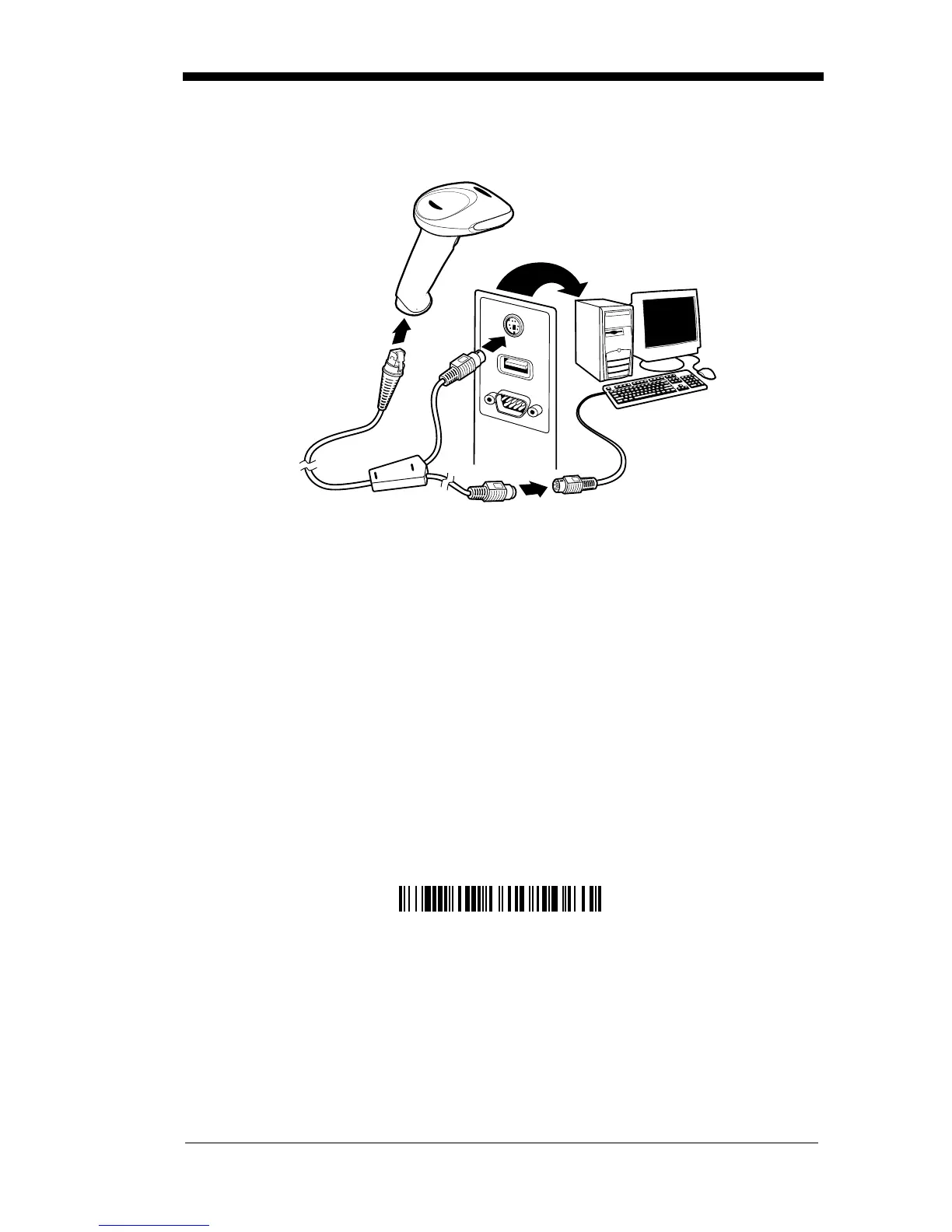

3800g/3800gHD/3800gPDF User’s Guide 1 - 5
3. Connect the appropriate interface cable to the imager and to the terminal/
computer.
4. Turn the terminal/computer power back on.
Note: You will not hear a power-up beep because the 3800g is factory defaulted
to a USB connection. You must scan the IBM PC AT and Compatibles
with CR suffix bar code on page 1-5 to enable keyboard wedge ability.
Verify the imager operation by scanning a bar code from the Sample Symbols in
the back of this manual. The imager beeps once.
Keyboard Wedge Connection
Scanning the bar code below allows operation of the 3800g as a keyboard
wedge interface to an IBM PC AT with a U. S. keyboard.
If you programmed the imager for a different terminal interface and you want to
change to an IBM PC AT and compatibles keyboard wedge interface, scan the
bar code below.
Note: The following bar code also programs a carriage return (CR) suffix.
IBM PC AT and Compatibles
with CR suffix

Honeywell 3800g Specifications

General

Scan speed	270 sec/page
Wavelength	630 nm
Decoding standards	Codabar Code 3 Interleaved 2 Matrix 2 Code 11, 93, 128 UPC, EAN/JAN GS1 GTIN ISBT 128
Dimensions (WxDxH)	79 x 112 x 150 mm
Standard interfaces	RS-232
Input voltage	5 V
Power consumption	235 mA
Certification	IEC60950-1, IEC60825-1 Class 1, FCC Part 15 Class B, UL, cUL, ICES-003 Class B, CE 2004/108/EC EMC, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3. 2006/95/EC, GS, NOM-NYCE, MIC Class A, BSMI, C-Tick
Product color	Beige
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	158.8 g
