3800g/3800gHD/3800gPDF User’s Guide 1 - 7
All communication parameters between the imager and terminal must match for
correct data transfer through the serial port using RS-232 protocol. Scanning
the RS-232 interface bar code, programs the imager for an RS-232 interface at
38,400 baud, parity–none, 8 data bits, 1 stop bit, and adds a suffix of a CR LF.
Refer to page 2-8 for additional RS-232 configuration settings.

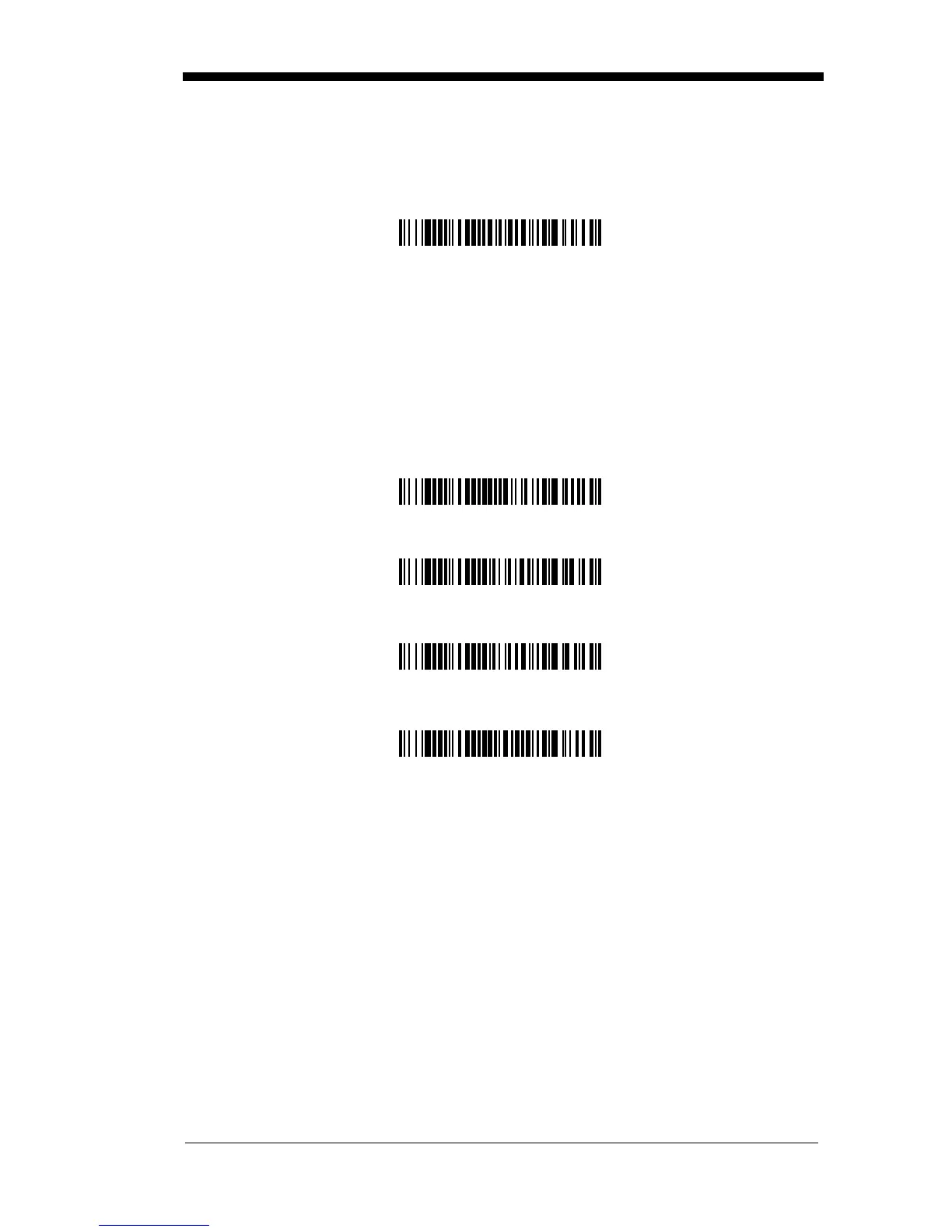

IBM 4683 Ports 5B, 9B, and 17 Interface
Scan one of the following “Plug and Play” codes to program the 3800GX5E for
IBM 4683 Port 5B, 9B, or 17.
Note: After scanning one of these codes, you must power cycle the cash
register.
RS-232 Interface
IBM 4683 Port 5B Interface
IBM 4683 Port 9B HHBCR-1 Interface
IBM 4683 Port 17 Interface
IBM 4683 Port 9B HHBCR-2 Interface

Honeywell 3800g Specifications

General

Scan speed	270 sec/page
Wavelength	630 nm
Decoding standards	Codabar Code 3 Interleaved 2 Matrix 2 Code 11, 93, 128 UPC, EAN/JAN GS1 GTIN ISBT 128
Dimensions (WxDxH)	79 x 112 x 150 mm
Standard interfaces	RS-232
Input voltage	5 V
Power consumption	235 mA
Certification	IEC60950-1, IEC60825-1 Class 1, FCC Part 15 Class B, UL, cUL, ICES-003 Class B, CE 2004/108/EC EMC, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3. 2006/95/EC, GS, NOM-NYCE, MIC Class A, BSMI, C-Tick
Product color	Beige
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	158.8 g
