1 - 6 3800g/3800gHD/3800gPDF User’s Guide
Laptop Direct Connect
For most laptops, scanning the Laptop Direct Connect bar code allows opera-
tion of the imager in parallel with the integral keyboard. The following Laptop
Direct Connect bar code selects terminal ID 03, programs a carriage return
(CR) suffix and turns on Emulate External Keyboard (page 2-5).

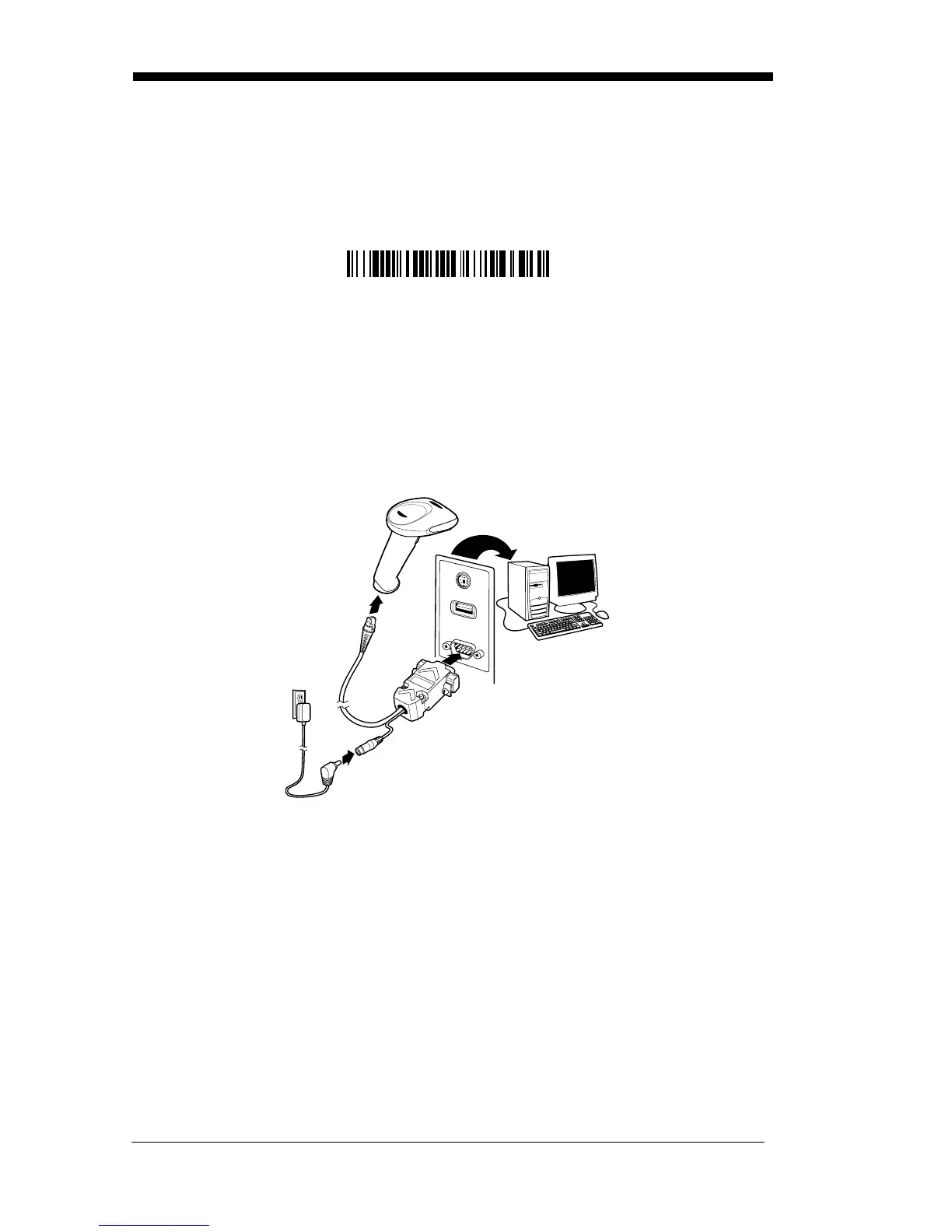

Connecting the Imager with RS-232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the imager.
Note: For the imager to work properly, you must have the correct cable for your
type of terminal/computer.
3. Plug the serial connector into the serial port on your computer. Tighten the
two screws to secure the connector to the port.
4. Connect the power supply and plug into an outlet.
5. Turn the terminal/computer power back on.
Note: You will not hear a power-up beep because the 3800g is factory defaulted
to a USB connection. You must scan the RS-232 Interface bar code
below to enable RS-232 ability.
Laptop Direct Connect
with CR suffix

Honeywell 3800g Specifications

General

Scan speed	270 sec/page
Wavelength	630 nm
Decoding standards	Codabar Code 3 Interleaved 2 Matrix 2 Code 11, 93, 128 UPC, EAN/JAN GS1 GTIN ISBT 128
Dimensions (WxDxH)	79 x 112 x 150 mm
Standard interfaces	RS-232
Input voltage	5 V
Power consumption	235 mA
Certification	IEC60950-1, IEC60825-1 Class 1, FCC Part 15 Class B, UL, cUL, ICES-003 Class B, CE 2004/108/EC EMC, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3. 2006/95/EC, GS, NOM-NYCE, MIC Class A, BSMI, C-Tick
Product color	Beige
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	158.8 g
