Honeywell 4600g User Manual

12 - 4
Trigger Commands
You can activate and deactivate the imager with serial trigger commands. First,
the imager must be put in Manual/Serial Trigger Mode either by scanning the
Manual/Serial Trigger Mode barcode (page 3-4), or by sending the Manual/
Serial Menu Command (page 12-9). Once the imager is in serial trigger mode,
the trigger is activated and deactivated by sending the following commands:
Activate: SYN T CR
Deactivate: SYN U CR
The imager scans until a barcode has been read, until the deactivate command
is sent, or until the serial time-out has been reached (see "Read Time-Out" on
page 3-4 for a description, and the serial command on page 12-9).

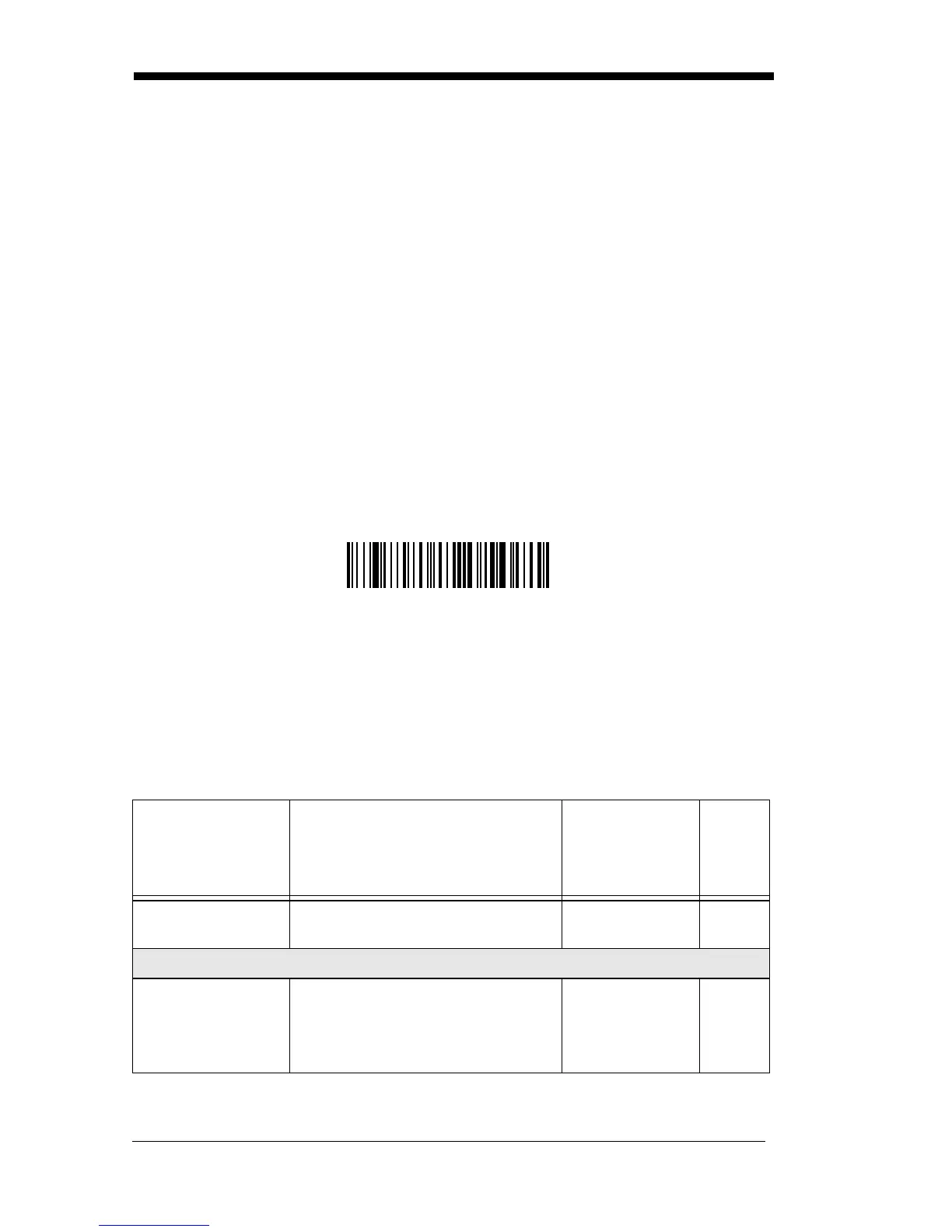

Resetting the Standard Product Defaults
If you aren’t sure what programming options are in your imager, or you’ve
changed some options and want the factory settings restored, scan the
Stan-
dard Product Default Settings barcode below.
The chart on the following pages lists the factory default settings for each of the
menu commands (indicated by an asterisk (*) on the programming pages).
Menu Commands
Note: Not all menu commands apply to all imager models.
Selection
Setting
* Indicates default
Serial
Command
# Indicates a
numeric entry
Page
Factory Default
Settings
Default
DEFALT
12-4
Terminal Interfaces
Terminal ID 000 (4600g/4600r/4600rp/
4800i 030 models)
124 (4600g/4600r/4600rp/
4800i 050 models)
TERMID###
2-1
Standard Product Default Settings

Honeywell 4600g Specifications

General

Wavelength	617 nm
Tilt angle range	27 - 42 °
Decoding standards	1D, 2D
Optical sensor resolution	752 pixels
Dimensions (WxDxH)	81 x 135 x 157 mm
Standard interfaces	USB, RS-232, Keyboard wedge, RS-485
Input voltage	4 - 14 V
Power consumption	382 mA
Certification	FCC Part 15, ICES-003, EN55022 Class A, ROHS, CE, UL
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	184 g
