Accenta/Optima Engineer’s Manual
4
PCB
There are four fuses mounted on the circuit board, all are 20mm anti-surge.
F1 1.6A - to protect the positive (+Ve) line of 12V battery
F2 1A - to protect the Speaker 13V supply
F3 1A - to protect the Siren (Bell) & Strobe supply
F4 1A - to protect the RKP 13V supply
As supplied, wire links are fitted across the PA (Personal Alert) and Tamper terminals to represent a closed
circuit.
Wiring the System
CAUTION: Always power down the panel when wiring external circuits to prevent damage to
the panel electronics.
Systematically wire and test each circuit:
 Zone, Tamper circuit and PA circuits
 Finish by wiring any additional extension speaker sounders, external siren (bell) / strobe and the 13V
supply.
Tamper Network
The Tamper circuit is used to protect all cables and detectors in the system from unauthorised access including
the panel and RKP covers.
The zone and PA (Personal Alert) tampers should be series wired and connected to the TAMP terminals.
Terminals T and A are for the external siren tamper. The TAMP terminals at the bottom left of the board are
for the RKP tampers.
Tamper alarms that occur when the system is unset, operate internal sounders only. Tamper alarms in Set
cause a full alarm condition. Tamper is indicated on the control panel and RKPs.

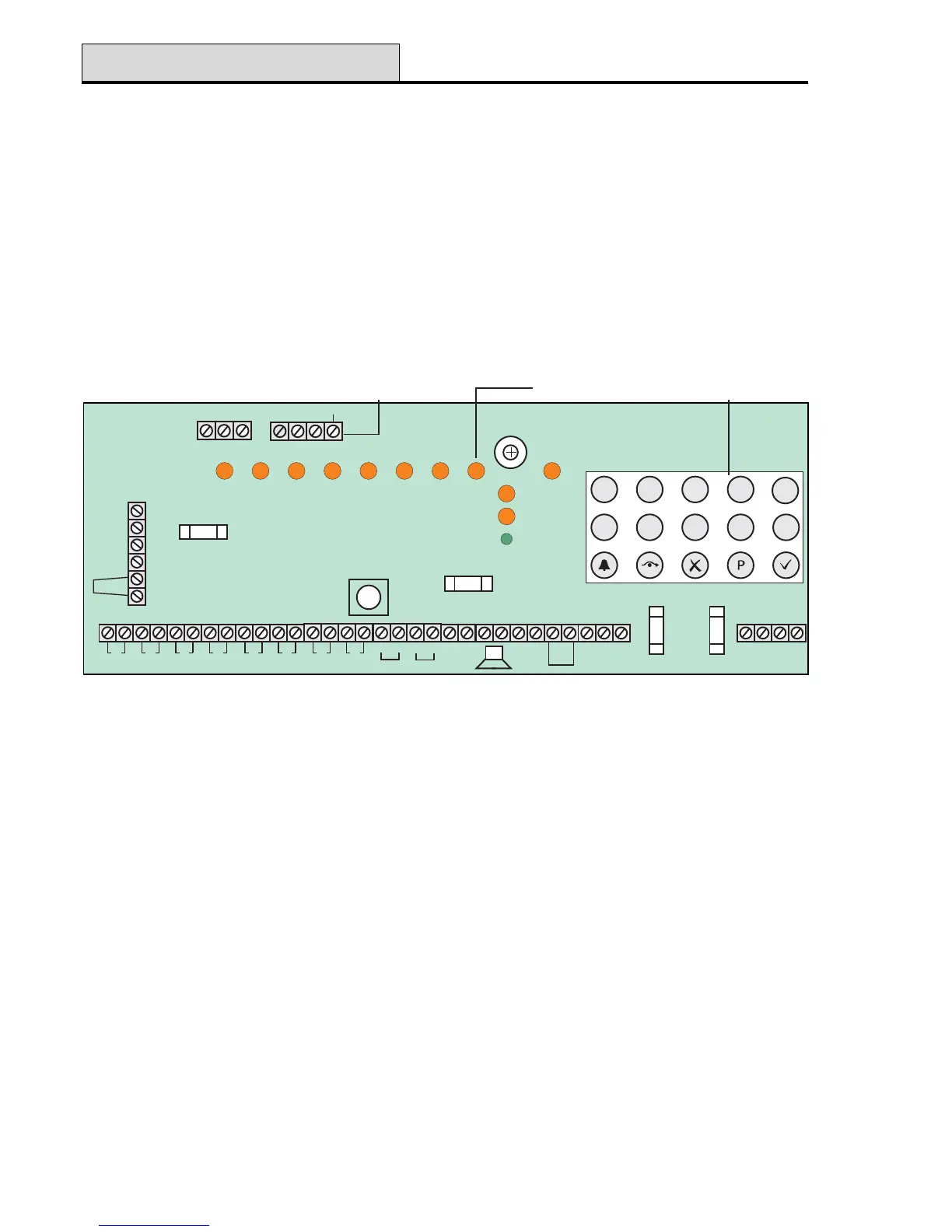

Figure 4. PCB
PCB
-
STROBE
J6
+ -
AC
+
TA
SCB
DB
BELL
+
-
SET
1A
1A
1.6A
BELL/STROBE
BATTERY
BATT
J4
F1
F2
F3
J5
0V
TAMP
+13V
COMMS
SOUND
RV1
VOLUME
1A
RKP FUSE
F4
ABORT
J3
+13V
0V
FIRE
PA INT
SET
0 1 2 3
5 6 7 8 9
Communicator is not fitted
to Optima compact panel
Keypad and LEDs (except Power LED) are not
fitted to Accenta mini panels
D1 D2 D3 D4 D5 D6 D7 D8
D9
D10
D22
D18
J2
PA
+
-
TAMP
+13V
0V
1
2
3
4 5
6
7
8
13V
SPEAKER
4
TAMP
