BACNET® FIXED FUNCTION THERMOSTAT
19 31-00099—01
APPLICATION 15 – FAN COIL UNIT – 2 PIPE
Features and Notes
• Three modes of schedule control set by AV-123 –
0 = Single point with offset during occupancy,
1 = Dual setpoint residential – wake, leave, return & sleep,
2 = Dual setpoint with offset occupancy.
• BACnet MS/TP compliant.
• English or metric units.
• Outputs are disabled if BV-2 is off.
• Disable operator access via the display to the schedule
by setting BV-102 to off.
• Onboard schedule can be enabled or disabled (BV-40).
• Cooling or heating is disabled if the fan is off.
• Use up and down arrows on the display to force the unit
into occupancy for four hours.
• Setpoint mode emulates residential thermostat operation.
• Fan can be set to run continuously or cycle on and off for
heating or cooling demands while in Occupancy mode
(AV-17).
• Fan speed will ramp between 0-100% depending on
cooling and heating demands
• Fan speed selected upon the following settings -
Low Speed – at 20% demand (adjustable in AV-46)
Medium Speed – at 40% demand (adjustable in AV-85)
High Speed – at 70% demand (adjustable in AV-89)
Fan speed deadband set at 2%
• Humidity control can be enabled for un-occupancy
(BV-53).
• AV-23 is used to determine if the water temperature
sensor (AV-15 sourced from the BMS) is to be utilized
0 = No,
1= cooling,
2 = heating.
LOW/MEDIUM/HIGH SPEED FAN. 2 POSITION OR ANALOG COOLING OR HEATING
Inputs
BI-0:: Motion Detector PIR (optional)
BI-1:: Door/Window Sensor (optional)
BI-2:: Main Door Sensor (optional)
Outputs
BO-0:: Fan Low Speed
BO-1:: Fan Medium Speed
BO-2:: Fan High Speed
BO-3:: 2 Position Open/Close
Cooling/Heating Valve
BO-4:: Not used
BO-5:: Not used
AO-0::
Analog Modulating Cooling or
Heating Valve 0-10V or 4-20mA
AO-1:: Fan Speed Control (optional)
4-20mA VFD
Note: Any I/O listed as “optional” will
require a BV to be set. Refer to the
sequence of operations outlined in
the BACnet FF Thermostat System
Engineering Guide, 31-00098.
MS/TP Network
Digital
Digital
C
M
2 Position Open/Close or Analog
Digital
Motion Detector PIR
(optional)
Door/Window Sensor
(optional)
Main Door
Sensor
(optional)
Fan F 1 SS
Fan F 2 SS
Fan F 3 SS
Clg/Htg Vlv
Clg/Htg Vlv

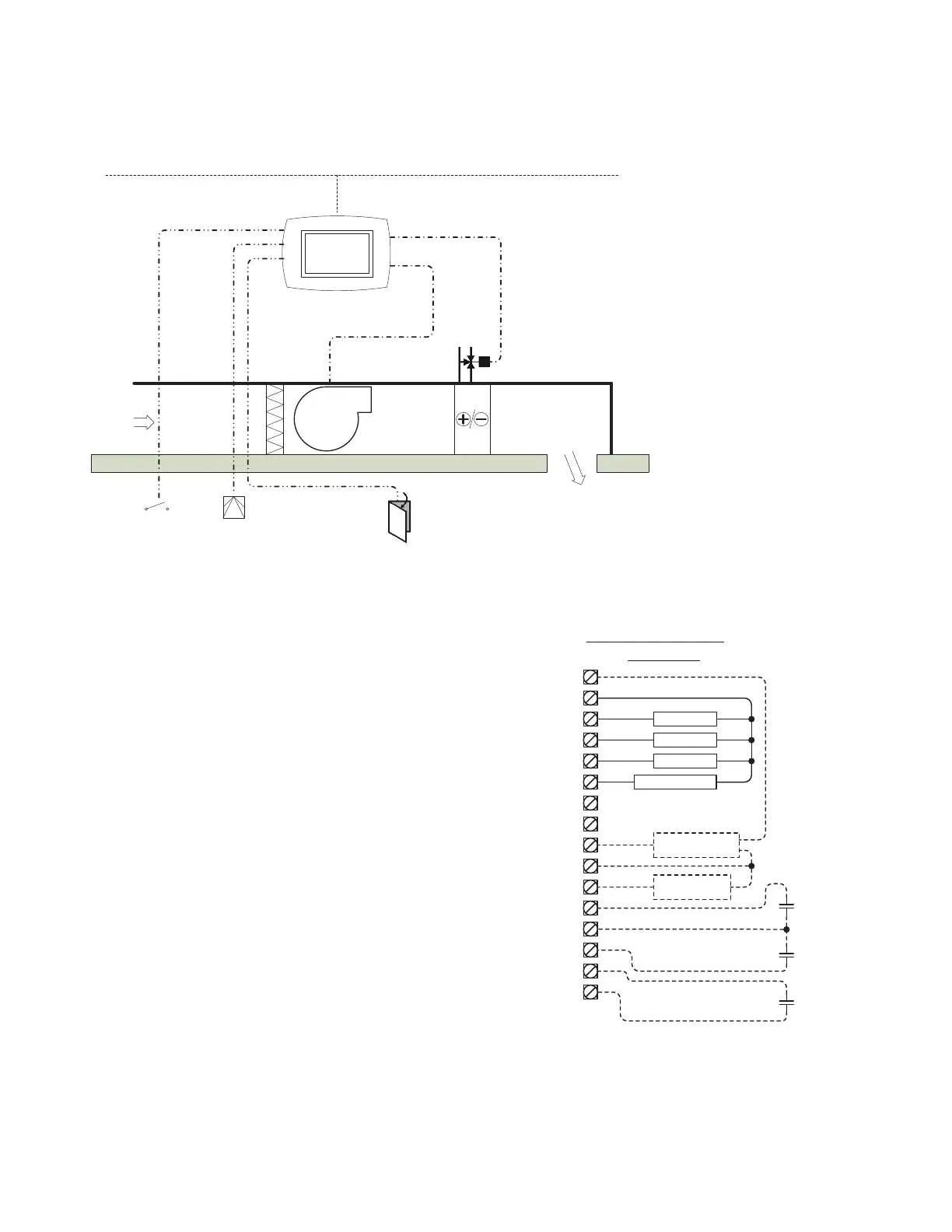

Controller Terminations
2PFC AP 15
GND
5
BO 0
BO 1
BO 2
BO 3
BO 4
BO 5
AO 1
G1
G2
G3
Y1
EC
0-10Vdc
Com
14
AO 0
C
RC24VAC
1
BI/AI 1
COM
BI/AI 2
COM
BI/AI 0
EC/VC
VC
FAN VFD
4-20ma
4-20ma
Com
PIR
Motion
Sensor
Main Door
Switch
24V
Com
Door/Window
Switch
To Next Page
