2. If not already done, place the metal insert inside the sealing ring, and then place that
combination over the sensor, followed by the sensor frame over the spacer. Align the frame
so that it fits properly around the audible alarm port. Tighten the screws to hold the frame in
place. Note: Do not overtighten.
Install a new filter over the sensor before replacing the cover.
13.4.2. 1-Series Sensor Replacement
IMPORTANT!
Some Series 1 sensors are shipped with a jumper that connects two of the pins. This jumper must
be removed before installing the sensor. Turn the sensor upside-down, and slide the jumper off of
the sensor’s pins. Properly dispose of the jumper.

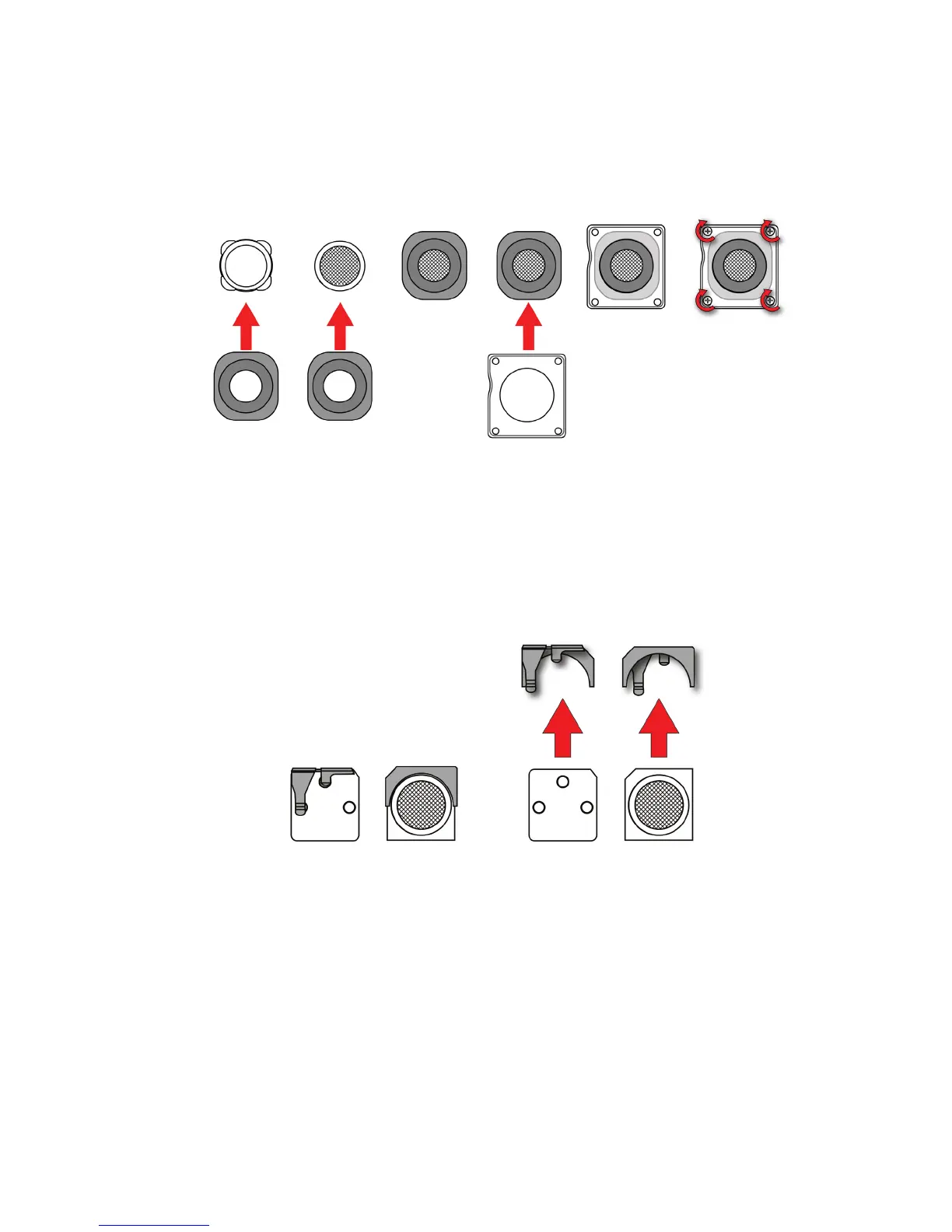

Sealing
Ring
Sensor
Frame
Metal
Insert
Top
View
Bottom
View
Jumper
Sensor
Jumper
Attached
Jumper
Removed
Jumper
Sensor
