3. Remove the key from the key switch and store it.
5.2.2 Configuration lock key switch
The Configuration lock key switch is used for locking and unlocking the
configuration settings (non-W&M relevant and W&M relevant) of the
CIU 888. The key switch is located at the front of the CIU 888 (see
FIGURE 5-9).

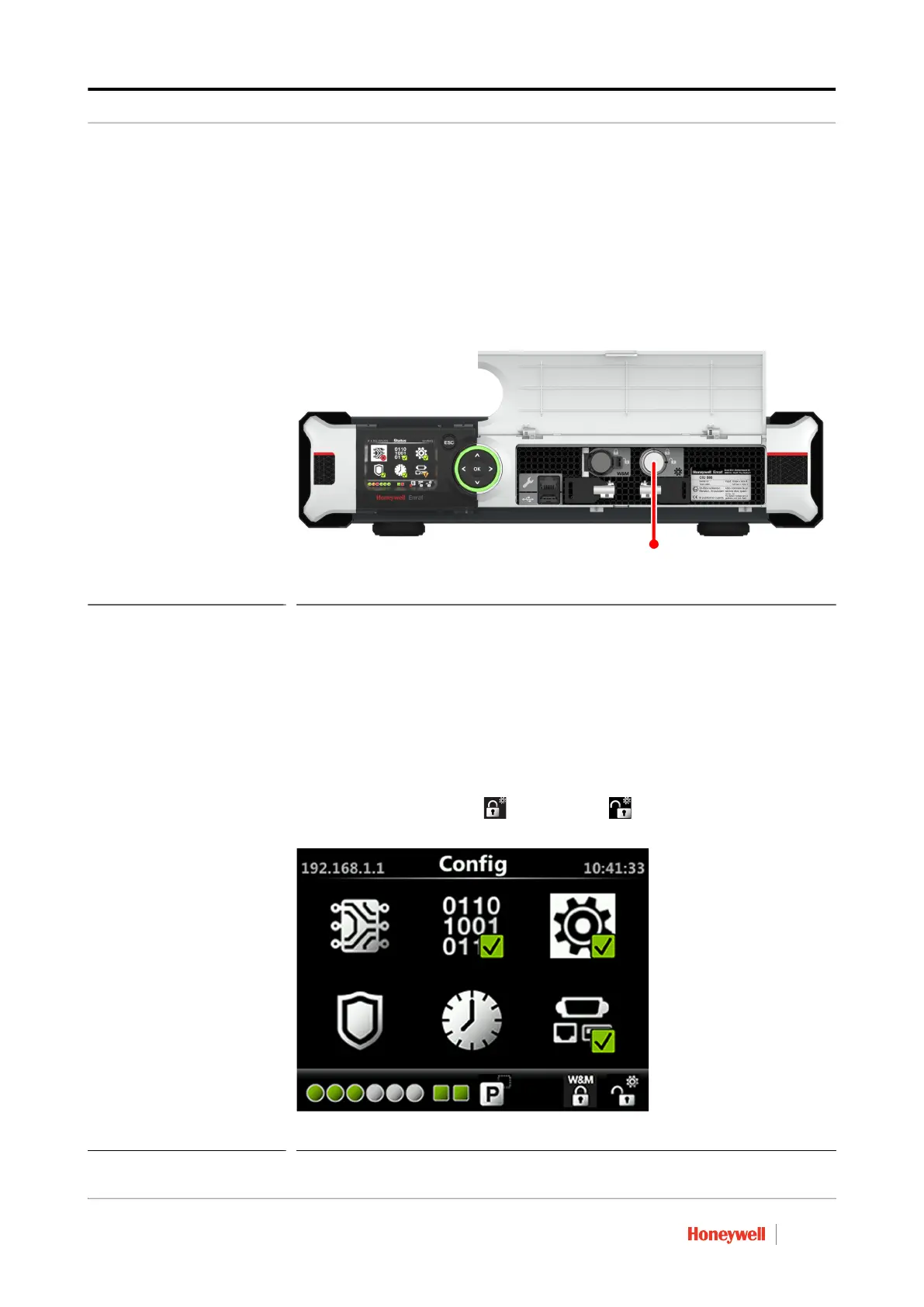

FIGURE 5-9 CIU 888: Configuration lock key switch
5.2.2.1 Unlocking the configuration settings
Perform the following steps to unlock the configuration settings of the
CIU 888:
1. Take the key for locking/unlocking the configuration settings.
2. Insert the key in the Configuration lock key switch, and then turn the
key counterclockwise.
On the Status Dashboard, the status of the Configuration lock key
switch changes from (‘locked’) to (‘unlocked’) (see FIGURE
5-10).
FIGURE 5-10 Status Dashboard: configuration settings are unlocked
