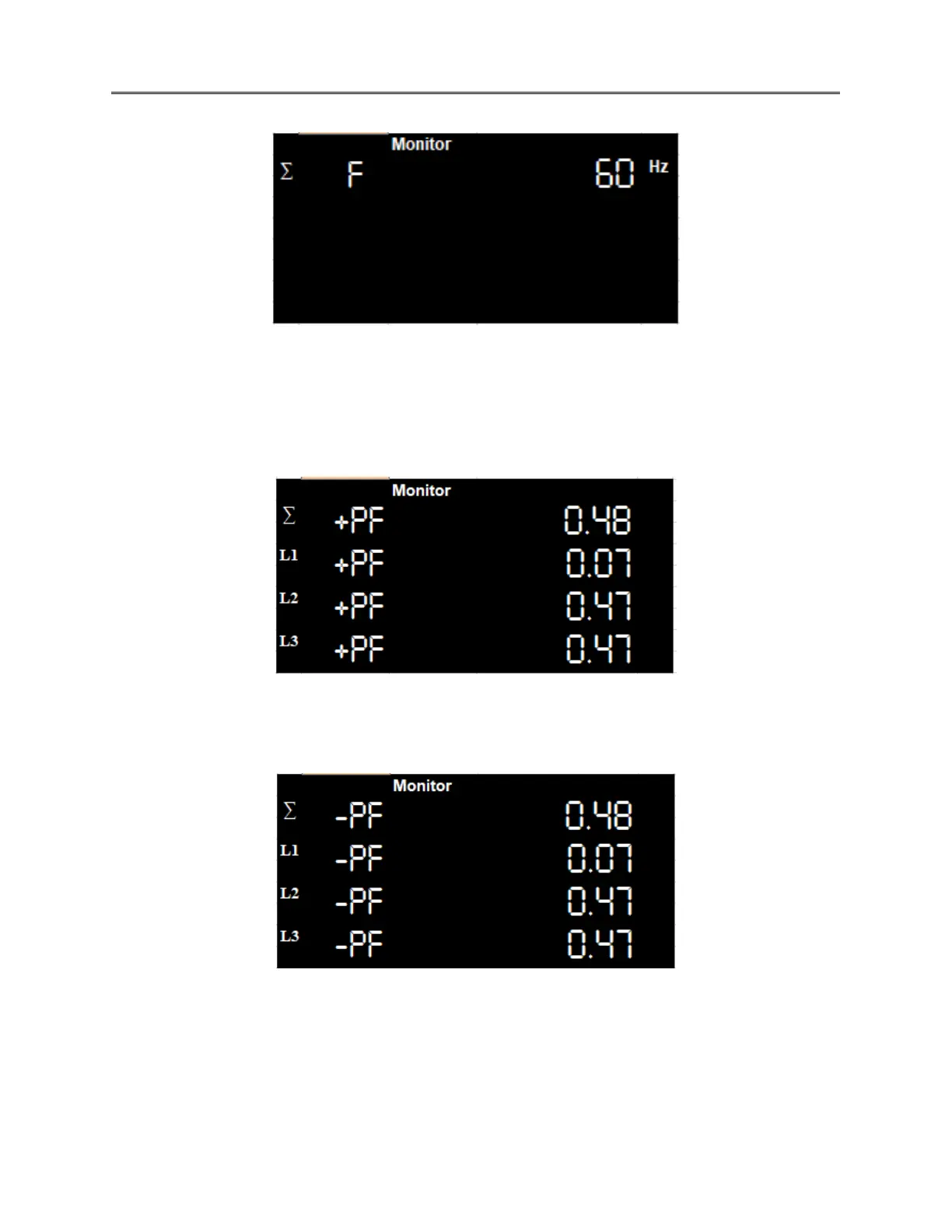

k. Power Factor – Provides the Instantaneous power factor for Import (+PF) and Export (-
PF) energy. Toggle through the Instant menu to navigate and check the Instantaneous
power factors for Import and Export energy.
▪ For import power factor, press the SET button after highlighting +PF sign to check
combined () Instant Power factor and per-phase (L1, L2, L3) power factors (+PF)
▪ For export power factor, navigate through the Instantaneous menu using the down
button to check combined () export Power factor and per-phase (L1, L2, L3) power
factors (-PF)
2. Minimum – Provides the minimum value for the voltage and current in per phase and
active power. For minimum values, toggle to the ‘Min’ option available in Monitoring menu
and press SET. Select the relevant measurement option to check the values by pressing
Down arrow button.
