Front Panel Display & Navigation
E-Mon® Series - Global User Manual
54-000-01-ENG01-0121
Page | 53
5. Wiring Check – This Setup menu option covers alarms to identify missing phases in wiring
and power factor error. The wiring check error is identified with yellow blinking LED signal
as mentioned in section 3.2.6 Status LED. In case of system error, check for the wiring
connections and system wiring setup.
To acknowledge the wiring check error:
i. Go to the Setup menu as per the navigation method described in Figure 14. Front Panel
Operation.

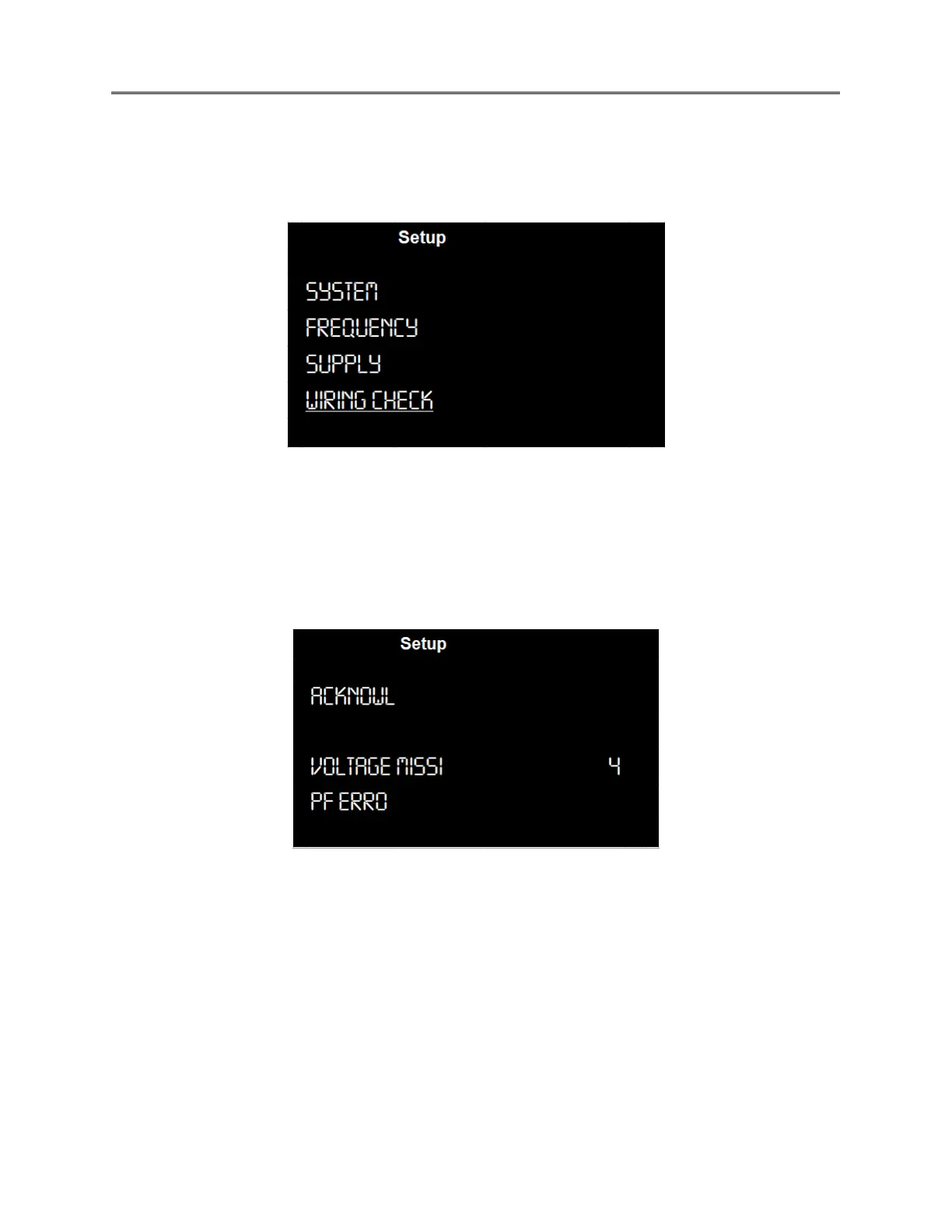

ii. Navigate to the ‘Wiring Check’ option and press ‘SET’ button. The ‘Wiring Check’ menu
displays options viz. ‘Acknowledge’, ‘Voltage Missing Phase’ and ‘PF Error’.
iii. Once the wiring is setup, select ‘Acknowledge’ and press SET to clear the alarm.
iv. Select ‘Yes/No’ from the popup option and press SET to clear.
v. The LCD displays ‘Cleared’ message with ‘Return in 5 Sec’.
